That is an LGA1155 board just so you know.

mY sYsTeM iS Not pErfoRmInG aS gOOd As I sAW oN yOuTuBe. WhA t IS a GoOd FaN CuRVe??!!? wHat aRe tEh GoOd OvERclok SeTTinGS FoR My CaRd??  HoW CaN I foRcE my GpU to uSe 1o0%? BuT WiLL i HaVE Bo0tllEnEcKs? RyZEN dOeS NoT peRfORm BetTer wItH HiGhER sPEED RaM!!dId i WiN teH SiLiCON LotTerrYyOu ShoUlD dEsHrOuD uR GPUmy SYstEm iS UNDerPerforMiNg iN WarzONEcan mY Pc Run WiNdOwS 11 ?woUld BaKInG MY GRaPHics card fIX it? MultimETeR TeSTiNG!! aMd'S GpU DrIvErS aRe as goOD aS NviDia's YOU SHoUlD oVERCloCk yOUR ramS To 5000C18

Link to post
Share on other sites

Same reason am4 and am5 can use the same coolers/mounts

Makes it easier to not have mutliple different sized mounts and just have a "one size fits most" mount

If you disagree with anything I've said tell my why with logic not feeling

If you wanna correct smb do so with logic not anecdotes and feelings

Link to post
Share on other sites

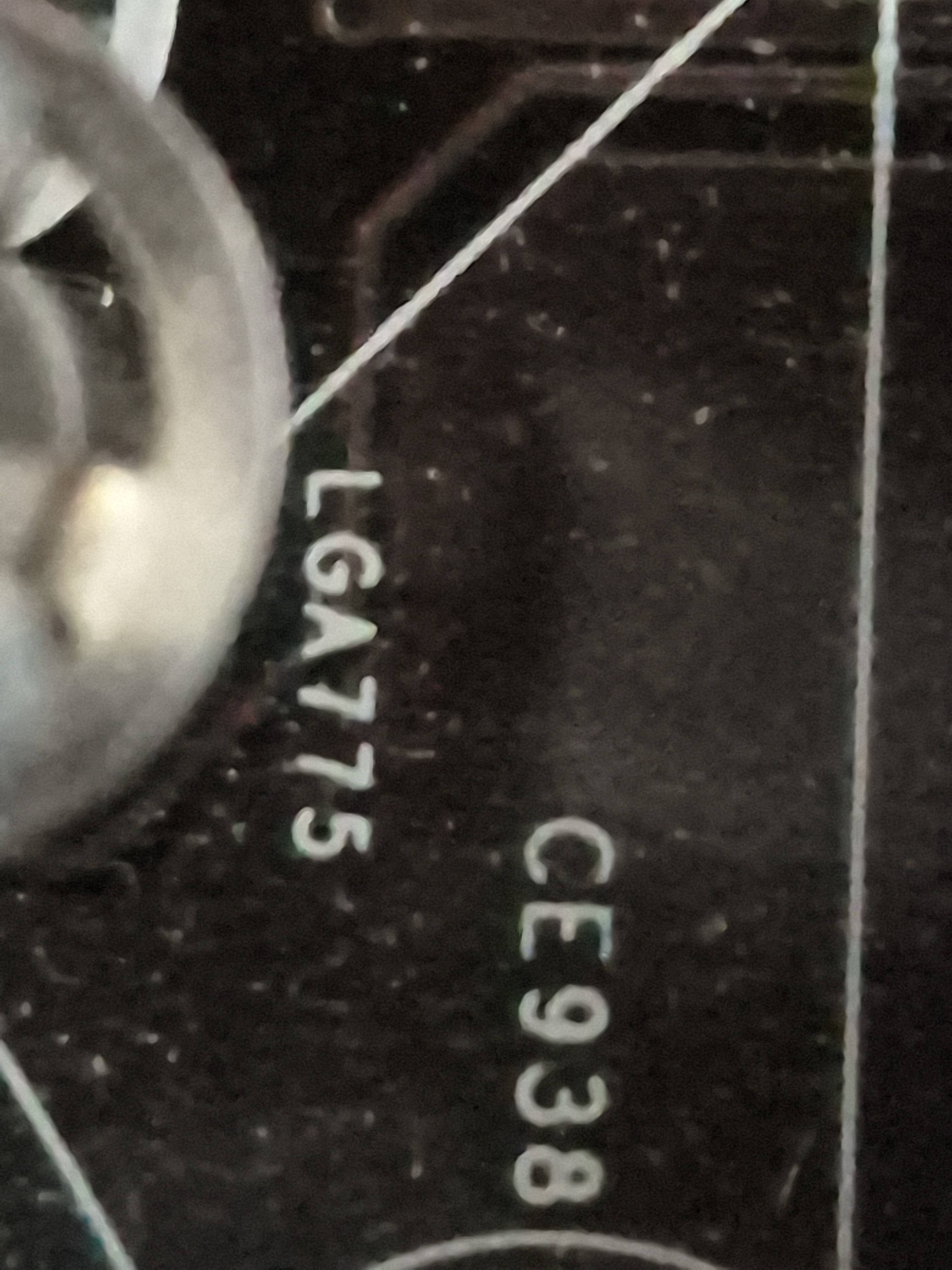

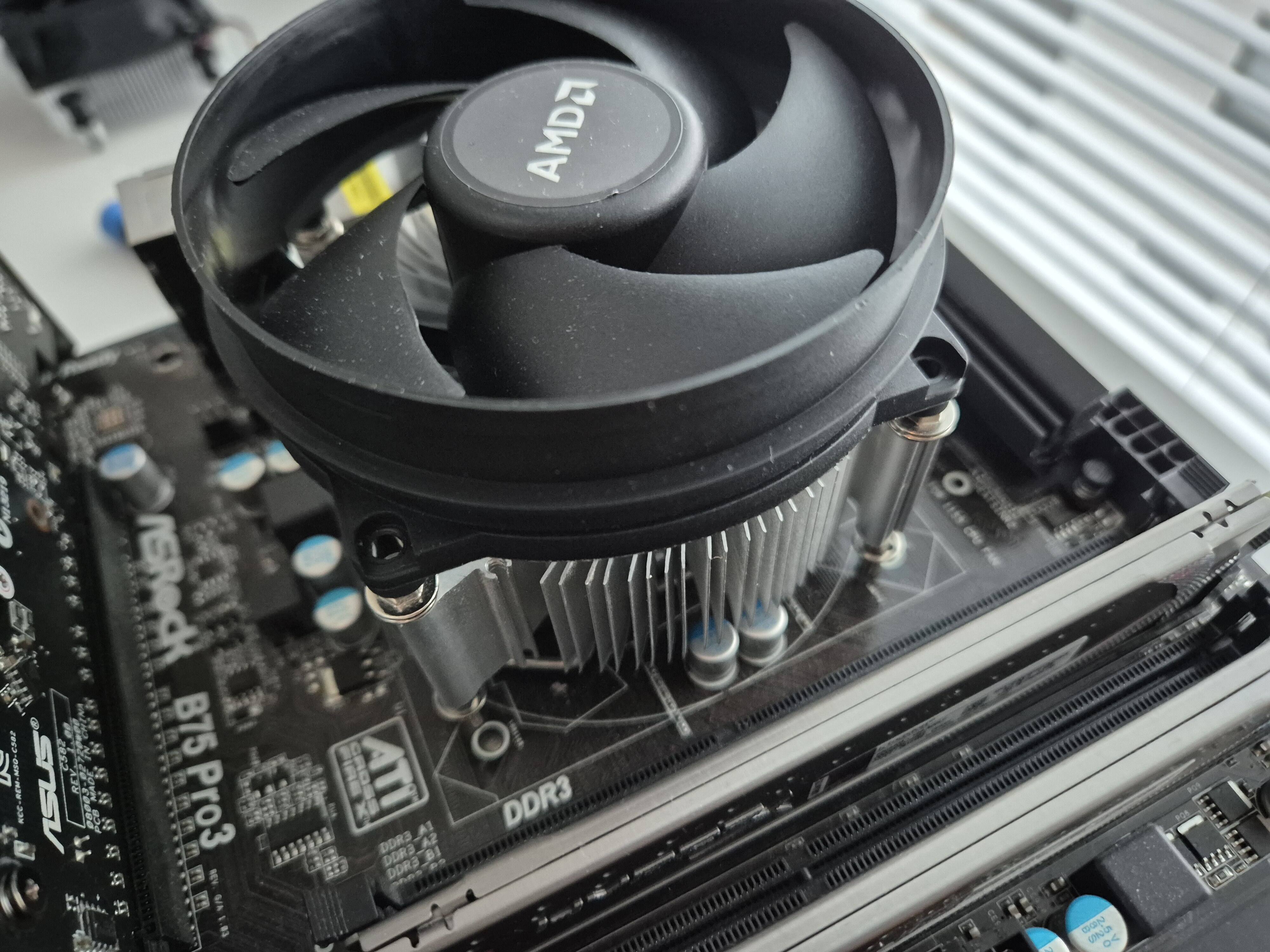

In the old days we were able to use older Lga775 coolers on some Lga1155 and 1151 mobos like on the Asrock B75 Pro 3. The motherboards literally had 4 mounting holes for each platform. It would be nice to see a staying universal cooling mount for all manufacturers and processor families at some point. In the image you can see 775 mounts on 1155.


Link to post
Share on other sites

AM4 is the same size as AM3 which is the same size as AM2 which IIRC was the same size and era as LGA775. I presume AMD did it back on AM2 (when nobody bought their CPUs) so it'd be easier for cooler manufacturers to support ttheir platform.

Link to post
Share on other sites

-Topics merged-

"Put as much effort into your question as you'd expect someone to give in an answer"- @Princess Luna

Make sure to Quote posts or tag the person with @[username] so they know you responded to them!

 RGB Build Post 2019 --- Rainbow 🦆 2020 --- Velka 5 V2.0 Build 2021

Purple Build Post ---  Blue Build Post --- Blue Build Post 2018 --- Project ITNOS

CPU AMD R7 7800X3D    Motherboard Asrock B650E Taichi Lite    RAM Corsair Vengeance RGB 32GB 5200mhz    GPU ASUS RTX4080 STRIX

Case Fractal Torrent   Storage Samsung 980Pro 2TB, Crucial P3 Plus 4TB x2,     PSU Corsair RM1000x    Cooling Deepcool AK620

Link to post
Share on other sites

30 minutes ago, danalog said:

AM4 is the same size as AM3 which is the same size as AM2 which was the same size and era as LGA775. I presume AMD did it back on AM2 (when nobody bought their CPUs) so it'd be easier for cooler manufacturers to support ttheir platform.

im like 87% sure am4/3/2 is rectangular while 775 is square what
maybe 2 holes align diagonally or on one side but the other two should not

Link to post
Share on other sites

2 minutes ago, OhYou_ said:

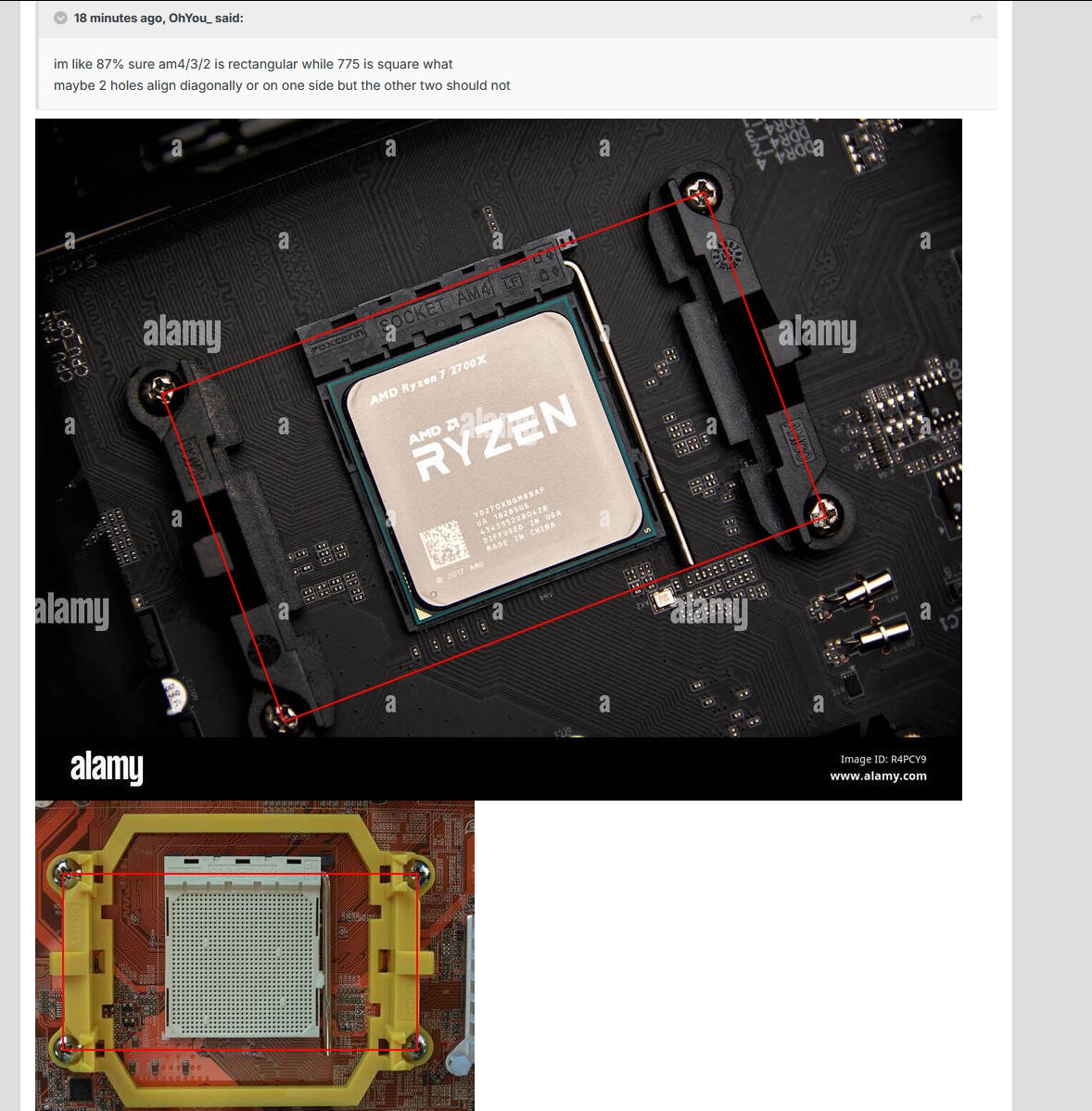

im like 87% sure am4/3/2 is rectangular while 775 is square what
maybe 2 holes align diagonally or on one side but the other two should not

image.thumb.jpeg.c09b14f170f4ecf78ee97ef4149ae430.jpegimage.jpeg.8ba5f93aaef33efc17bb08deb92fe7f3.jpegimage.png.74a96b3dba7a369e6783359c3eabc2bb.png

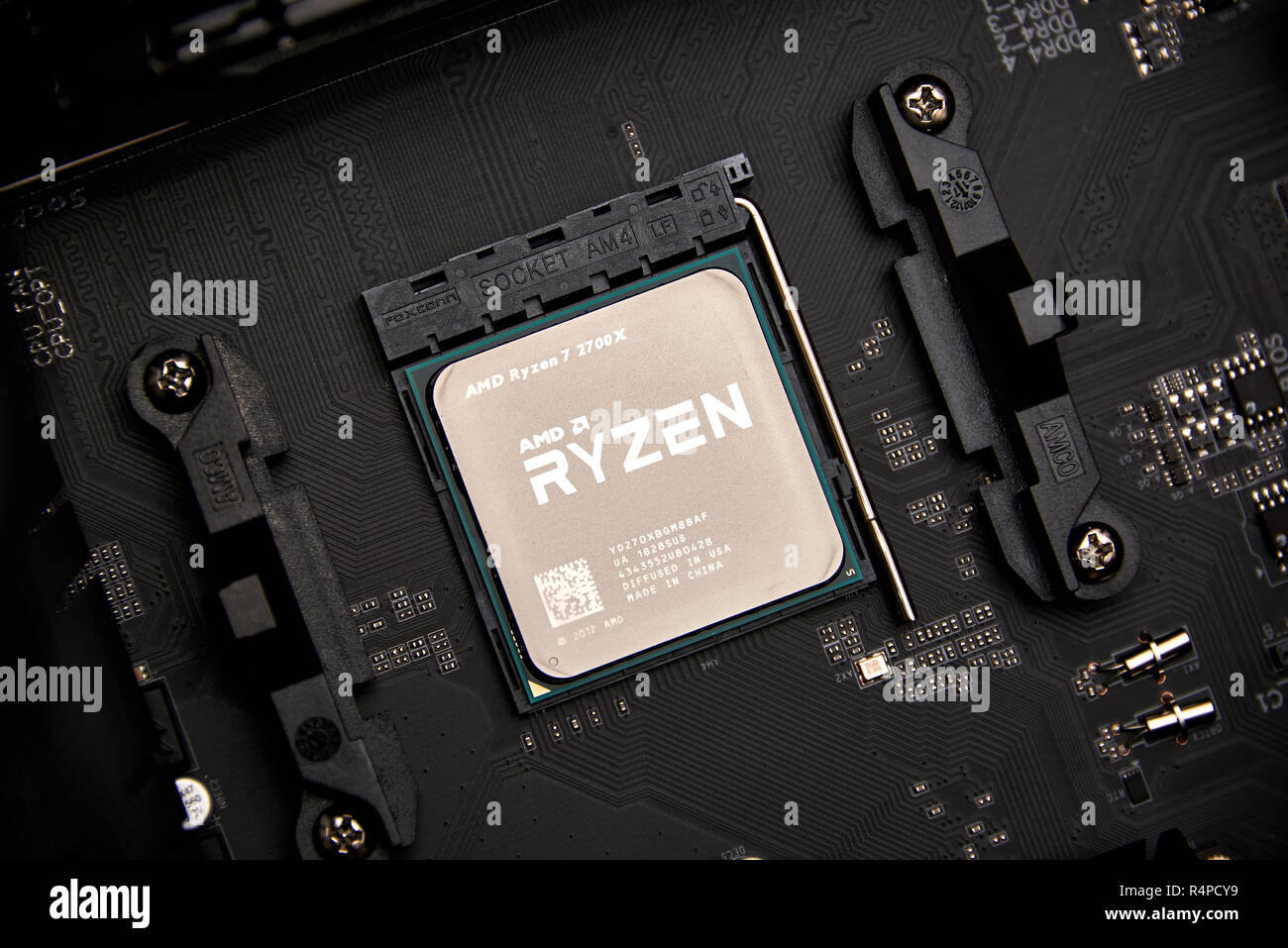

(from top to bottom am4 am2 am3)
IDK they all square to me

If you disagree with anything I've said tell my why with logic not feeling

If you wanna correct smb do so with logic not anecdotes and feelings

Link to post
Share on other sites

7 minutes ago, OhYou_ said:

/shrug not to me


Ooh you were talking about the mounting screw distance/layout

Still not the case 🙂 (that they arent different but they are rectangular that is true)

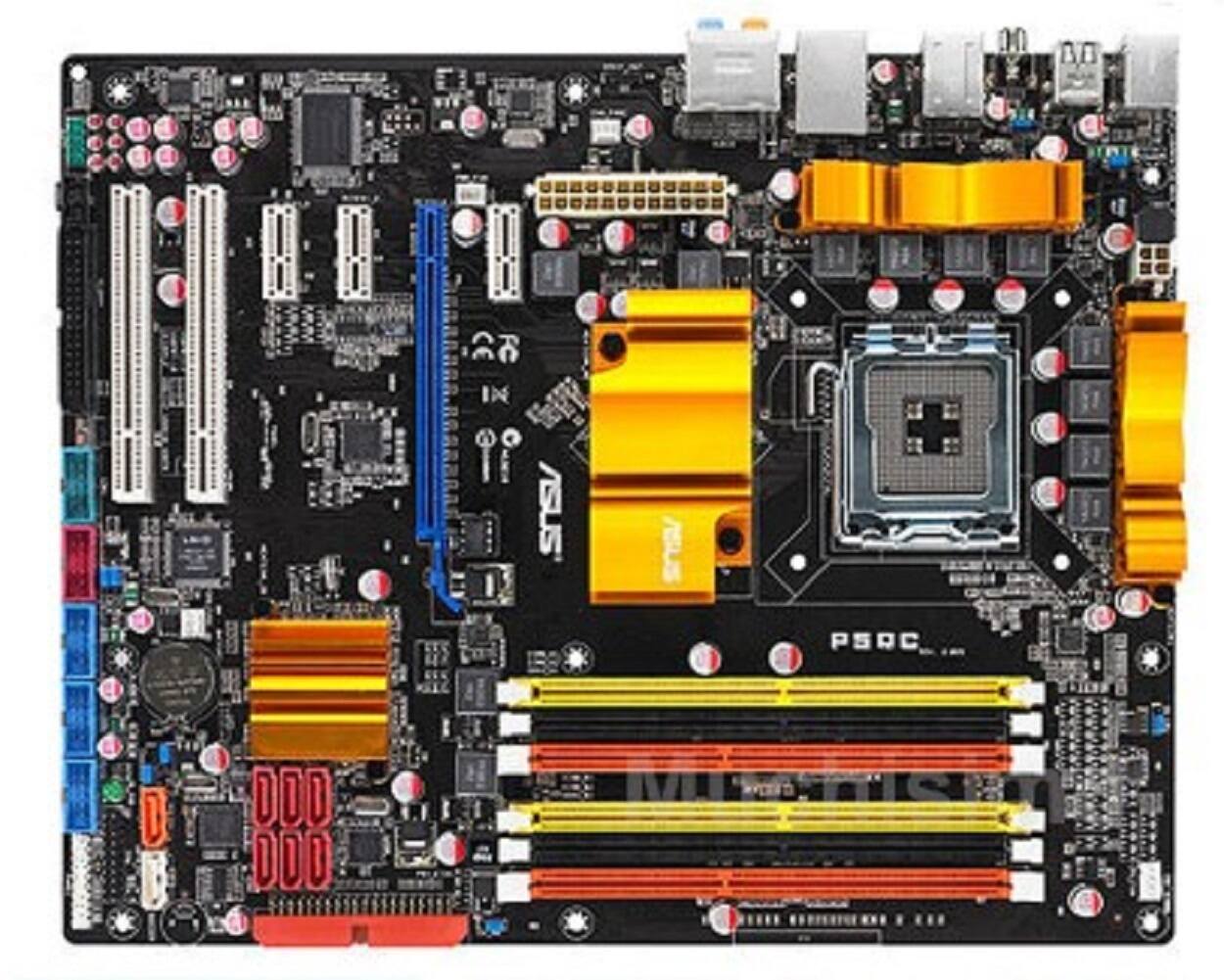

This is LGA 775 and still looks like a rectangle using the brackets/mounting screw holes

Notice the VRMs (or capacitors i cant remember which of the 2 it is now)

The vertical ones fit perfectly while the horizontal ones have a gap ie one side is larger therefore it is a rectangle as well and not a square

If you disagree with anything I've said tell my why with logic not feeling

If you wanna correct smb do so with logic not anecdotes and feelings

Link to post
Share on other sites

ooooh i understand now,

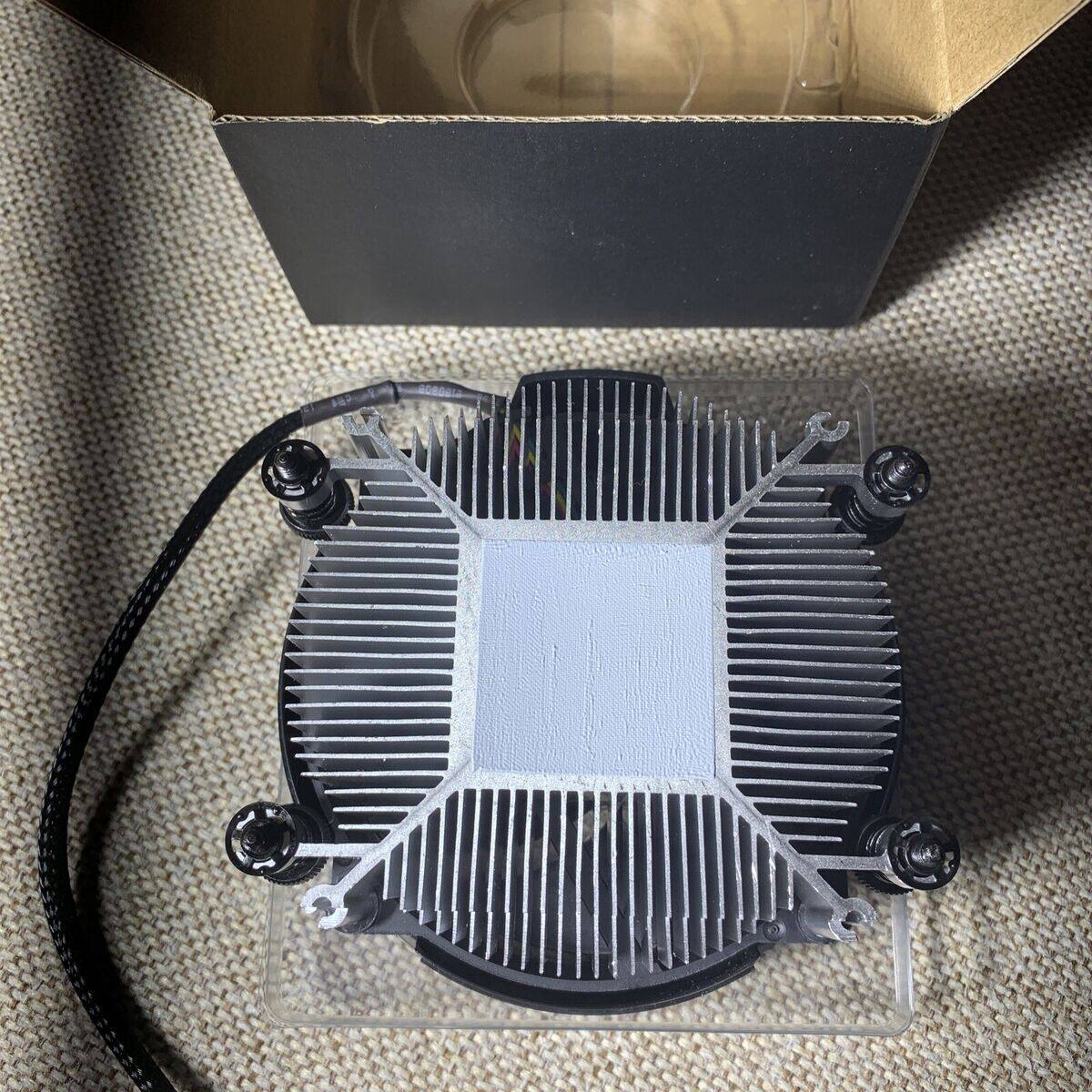

you mean the fan mount screws, so you remove the am4 mount screws, and supply your own threaded rods into the backside of the fan mount points and shove it on.
yes there is a very good reason for this, because the wraith uses a 80mm fan which utilizes a 71.5mm square mounting pattern, lga775 is 72mm square mounting pattern. That's pretty much why. it is close enough that with tolerances it will fit.

Link to post
Share on other sites

11 hours ago, OhYou_ said:

ooooh i understand now,

you mean the fan mount screws, so you remove the am4 mount screws, and supply your own threaded rods into the backside of the fan mount points and shove it on.
yes there is a very good reason for this, because the wraith uses a 80mm fan which utilizes a 71.5mm square mounting pattern, lga775 is 72mm square mounting pattern. That's pretty much why. it is close enough that with tolerances it will fit.

Going by this, the most reasonable explanation is that both AMD and Intel use same OEM factory for their stock heatsinks. To which, its cheaper for factory to have one process for carving heatsinks instead of multiple. Intel hasn't changed their stock cooler size in 20 years, just adjusted mounting to fit. I remember it being "hot" (pun intended) topic few years ago when it became clear that stock cooler wasn't enough for even non-K i7s.

^^^^ That's my post ^^^^
<-- This is me --- That's your scrollbar -->
vvvv Who's there? vvvv
