Was I shipped a bad SSD or am I just useless at installing it?

Baz Lafr
By Baz Lafr
in Storage Devices
 Share
Posted

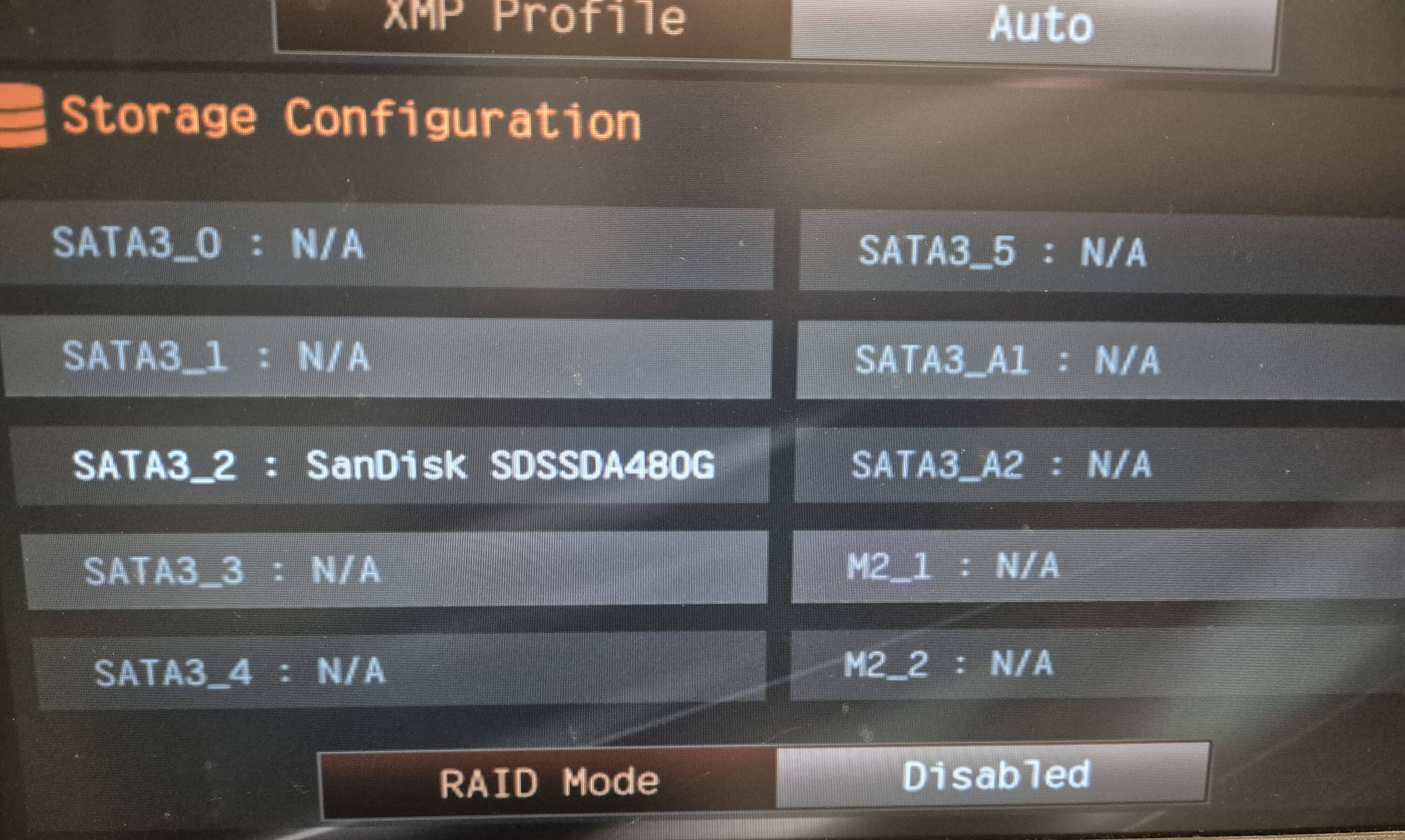

I've tried installing an M.2 NVME SSD into my computer in both available M.2 slots and neither are recognising it. It doesn't show up in disk management as an unallocated drive and doesn't show up in device manager. I also checked the UEFI and neither slot would recognise that something had been installed. My motherboard is an Asrock Z270 Gaming K6 and the drive is a Crucial P3 1TB PCIe 3.0 NVMe M.2 2280 SSD. Is there a compatibility issue I hadn't foreseen here?

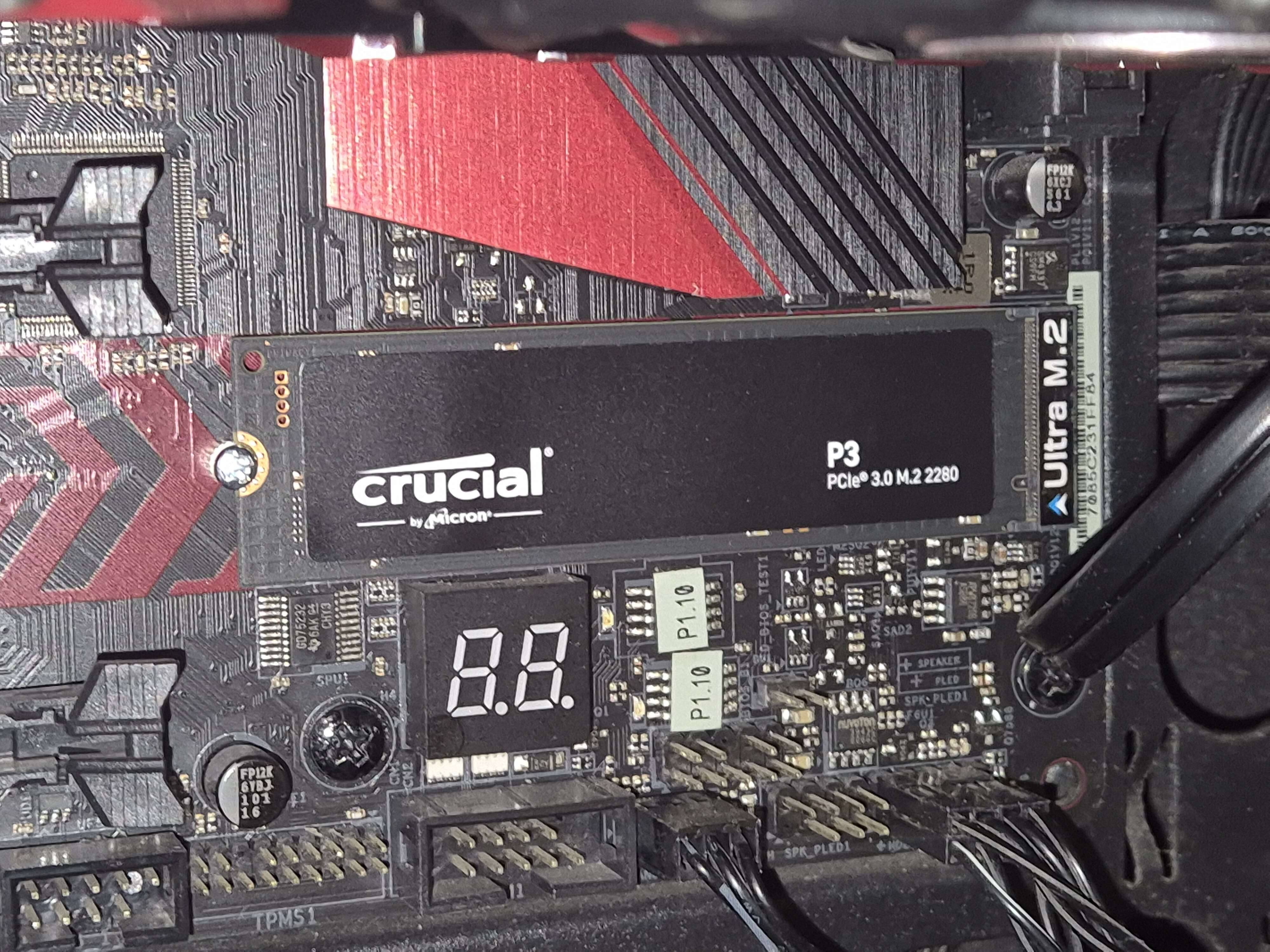

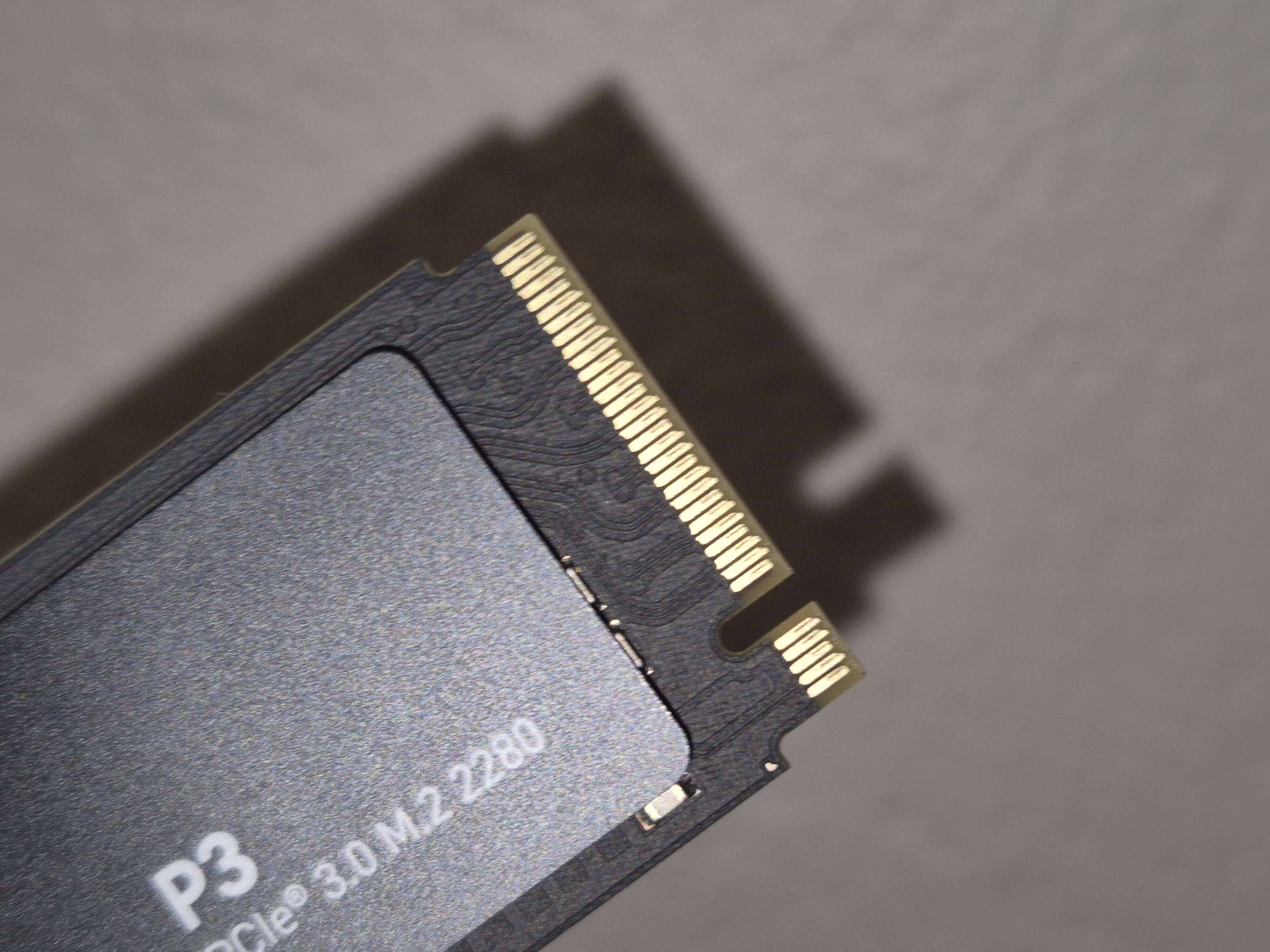

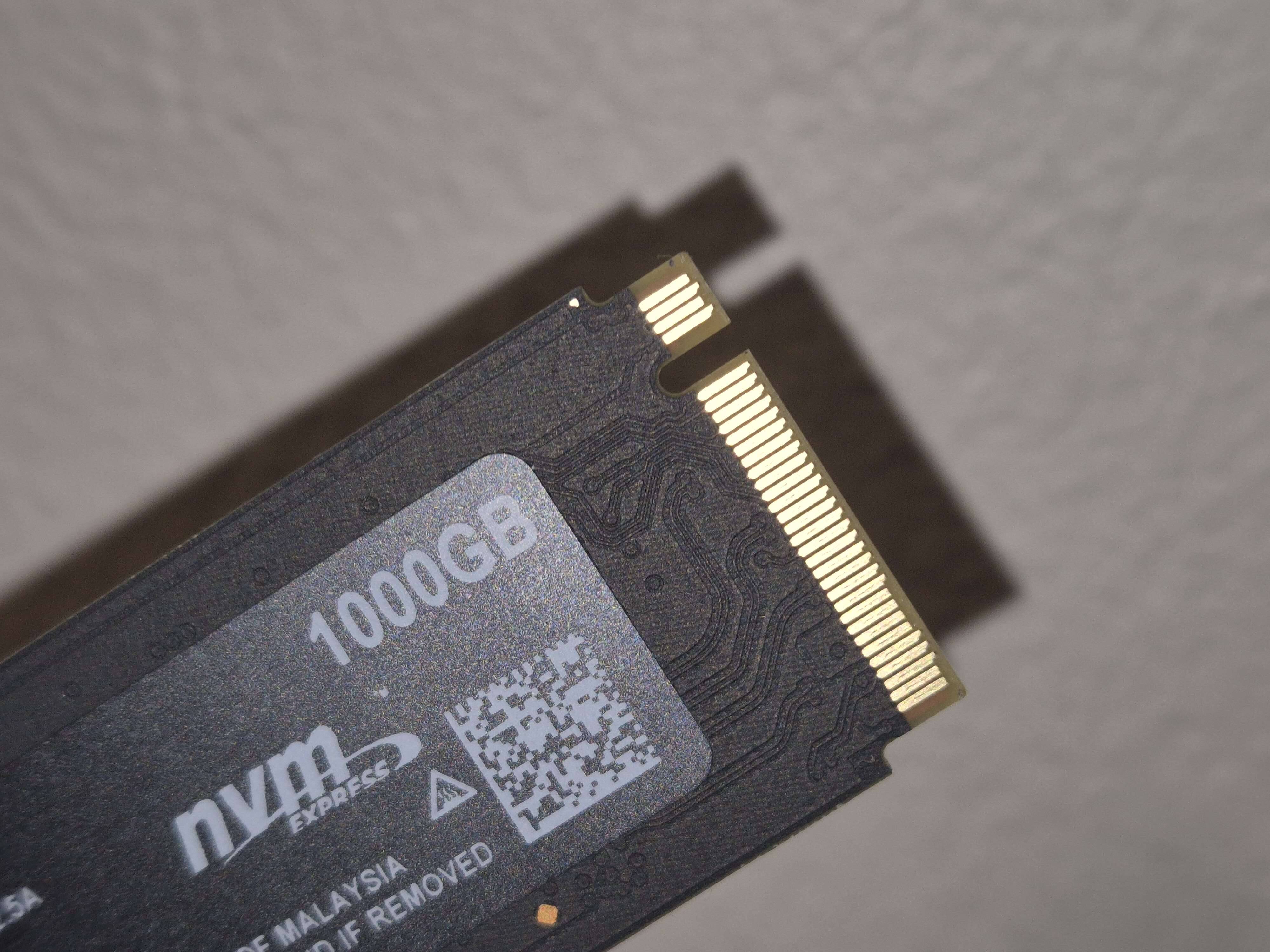

The installation of the drive felt smooth in both slots. It was easy to find the right angle and there was no particular resistance when lowering it down onto the board to screw in. While the motherboard is almost 8 years old, neither of these slots have been used before today. I've attached photos if it helps.



I'd be really surprised if my first M.2 SSD ended up being faulty, but I just can't figure out what the problem is.




Link to post
Share on other sites
Posted
6 minutes ago, Baz Lafr said:

I've tried installing an M.2 NVME SSD into my computer in both available M.2 slots and neither are recognising it. It doesn't show up in disk management as an unallocated drive and doesn't show up in device manager. I also checked the UEFI and neither slot would recognise that something had been installed. My motherboard is an Asrock Z270 Gaming K6 and the drive is a Crucial P3 1TB PCIe 3.0 NVMe M.2 2280 SSD. Is there a compatibility issue I hadn't foreseen here?



The installation of the drive felt smooth in both slots. It was easy to find the right angle and there was no particular resistance when lowering it down onto the board to screw in. While the motherboard is almost 8 years old, neither of these slots have been used before today. I've attached photos if it helps.



I'd be really surprised if my first M.2 SSD ended up being faulty, but I just can't figure out what the problem is.

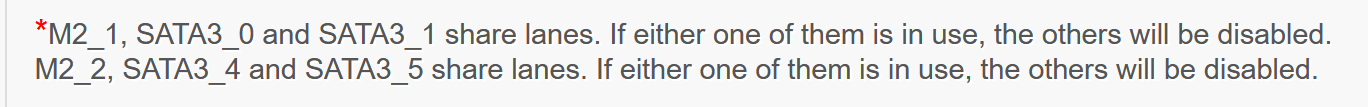

From Asrock...




Are you using SATA ports?

Link to post
Share on other sites
Posted

everything you are doing is correct, and it should just work, and be compatible with itself, but it doesn't...

on 78 page of manual, there is this...

M2_1/ SATA3_0_1 Switch

Auto: M2_1/SATA3_0_1 auto switch

Force_SATA: Switch to SATA3_0_1

Force_M2_1: Switch to M2_1



M2_2/ SATA3_4_5 Switch

Auto: M2_2/SATA3_4_5 auto switch

Force_SATA: Switch to SATA3_4_5

Force_M2_2: Switch to M2_2

You can force it to use M.2 instead of SATA, it's worth to try, even tho you are not using them, to force M.2 on it.
If that won't help, try to restore to defaults for UEFI

And if that don't work, update the uefi, if there's is any new uefi available for you.

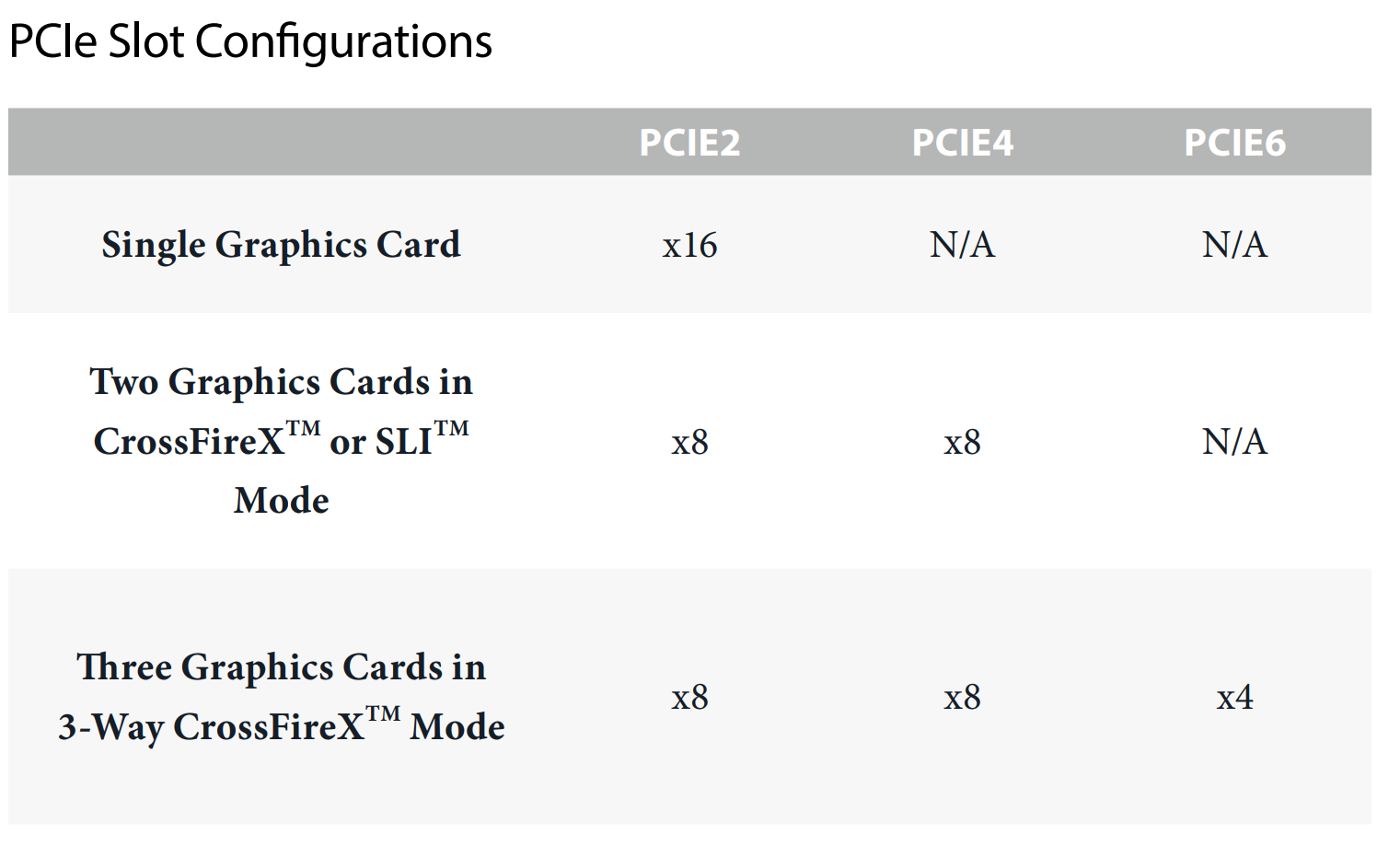

thar is also something strange in the manual about the three full PCIE x16 slot PCIE2/PCIE4/PCIE6


"3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6))* "

As it should be x8/x4/x4 with triple, if they are all from CPU, this may indicate, there's a switch from one of the M.2 slot, to the PCIE6 slot.
But that also is strange, and if that's the case, PCIE6 should have been always "x4", and not "N/A" with single, or two GPU...


Just to be sure, what PCIE slot you are using right now?

Ps. But yes, it can be just dead SSD...





Spoiler
CPU : Intel 14gen i7-14700K
COOLER :  Thermalright Peerless Assassin 120 White + thermaltake toughfan 12 white + Thermal Grizzly - CPU Contact Frame Intel 13./14. +  Coollaboratory Liquid Ultra
GPU : MSI RTX 2070 Armor @GPU 2050MHz Mem 8200MHz -> USB C 10Gb/s cable 2m -> Unitek 4x USB HUB 10 Gb/s (Y-HB08003)
MOBO : MSI MEG Z690 UNIFY
RAM :  Corsair VENGEANCE DDR5 RAM 64 GB (2 x 32 GB) 6400 MHz CL32 (CMK64GX5M2B6400C32)
SSD : Intel Optane 905P 960GB U.2 (OS) + 2 x WD SN850X 4TB + 2 x PNY CS3140 2TB + ASM2824 PCIe switch -> 4 x Plextor M8PeG 1TB + flexiDOCK MB014SP-B -> Crucial MX500 2TB + GoodRam Iridium PRO 960GB + Samsung 850 Pro 512GB
HDD : WD White 18TB WD180EDFZ + SATA port multiplier adp6st0-j05 (JMB575) ->  WD Gold 8TB WD8002FRYZ + WD Gold 4TB WD4002FYYZ + WD Red PRO 4TB WD4001FFSX + WD Green 2TB WD20EARS
EXTERNAL
HDD/SSD :  		XT-XINTE LM906 (JMS583) -> Plextor M8PeG 1TB + WD My Passport slim 1TB + LaCie Porsche Design Mobile Drive 1TB USB-C + Zalman ZM-VE350 -> Goodram IRDM PRO 240GB
PSU :  Super Flower leadex platinum 750 W biały -> Bitfenix alchemy extensions białe/białe + AsiaHorse 16AWG White
UPS :  CyberPower CP1500EPFCLCD -> Brennenstuhl primera-line 8 -> Brennenstuhl primera-line 10
LCD :  LG 32UD59-B + LG flatron IPS236 -> Silverstone SST-ARM11BC
CASE :  Fractal R5 Biały + Lian Li BZ-H06A srebrny + 6 x Thermaltake toughfan 14 white + Thermalright TL-B8W
SPEAKERS :  Aune S6 Pro -> Topping PA3-B -> Polk S20e black -> Monoprice stand 16250
HEADPHONES :  TOSLINK 2m -> Aune S6 Pro -> 2 x Monoprice Premier 1.8m 16AWG 3-pin XLR -> Monoprice Monolith THX AAA 887 -> 4-pin XLR na 2 x 3.5mm 16 cores OCC 2m Cable -> HiFiMAN Edition XS -> sheepskin pads + 4-pin XLR na 2 x 2.5mm ABLET silver 2m  Cable -> Monoprice Monolith M1060 + Brainwavz HM100 -> Brainwavz sheepskin oval pads + Wooden double Ɪ Stand + Audio-Technica ATH-MSR7BK -> sheepskin pads + Multibrackets MB1893 + Sennheiser Momentum 3 +  Philips Fidelio X2HR/00 + JBL J88 White
MIC :  Tonor TC30 -> Mozos SB38
KEYBOARD : Corsair STRAFE RGB Cherry MX Silent (EU) + Glorious PC Gaming Race Stealth Slim - Full Size Black + PQI MyLockey
MOUSE :  Logitech MX ERGO + 2 x Logitech MX Performance + Logitech G Pro wireless + Logitech G Pro Gaming -> Hotline Games 2.0 Plus + Corsair MM500 3xl + Corsair MM300 Extended + Razer goliathus control
CONTROLLERS :  Microsoft xbox series x controller pc (1VA-00002) -> brainwavz audio Controller Holder UGC2 + Microsoft xbox 360 wireless black + Ravcore Javelin
NET :  Intel x520-DA2 -> 2 x FTLX8571D3BCV-IT + 2 x ASUS ZenWiFi Pro XT12
NAS :  Qnap TS-932X-2G -> Noctua NF-P14s redux 1200 PWM -> Kingston 16GB 2400Mhz CL14 (HX424S14IB/16) -> 9 x Crucial MX500 2TB ->  2 x FTLX8571D3BCV-IT -> 2 x Digitus (DK-HD2533-05/3)
Link to post
Share on other sites
Posted
  • Author

Thanks everyone for the replies. I was able to confirm that the fault was not with the SSD, as that is now working fine in an NVME to USB enclosure. I've tried everything mentioned above, short of updating my UEFI, but I don't think I'll go that far. I'll just upgrade my machine in a few month's time, it's had a long run.

Link to post
Share on other sites
Posted

You can just buy pcie to m.2 adapter for 4-5$, the cpu pcie x16 slots should always work, as it's bypassing all of chipset/mobo.
