Can't find my power pins on the mobo

Marie Azalea
 Share
Posted
6 minutes ago, Marie Azalea said:

The mobo in question is a Biostar TA70U3-LSP. I couldn't find any resoirces online for the user manual

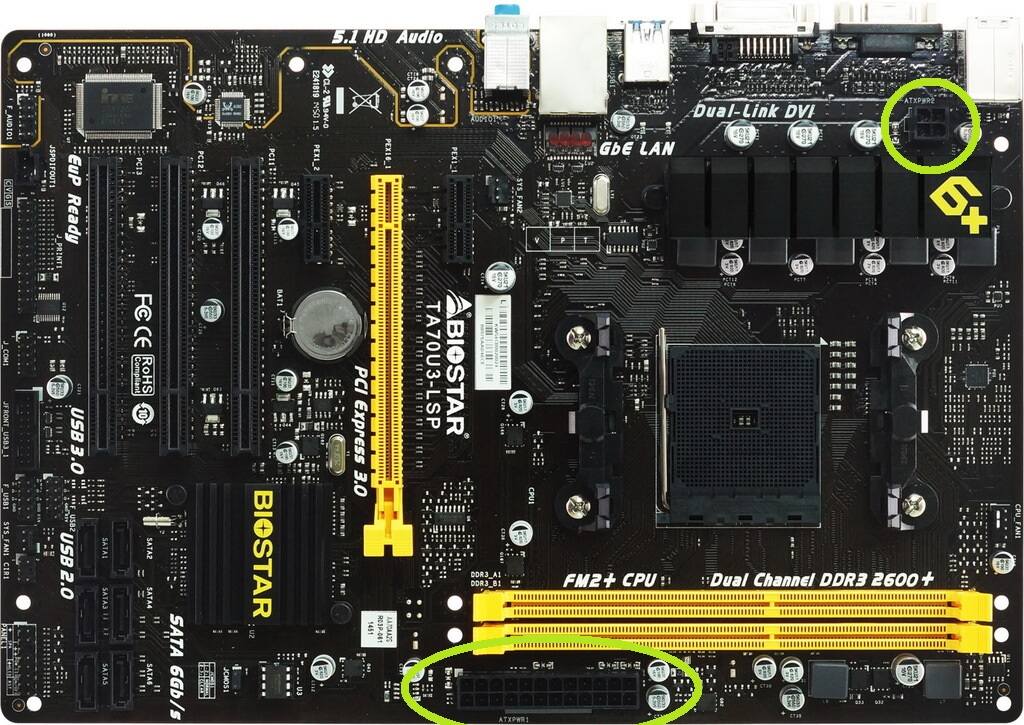

The 24-pin connector is near the memory slots, and the 4-pin CPU power is behind the VRM heatsink and keyboard/mouse ports in the corner.






I sold my soul for ProSupport.

Link to post
Share on other sites
Posted
1 hour ago, Needfuldoer said:

The 24-pin connector is near the memory slots, and the 4-pin CPU power is behind the VRM heatsink and keyboard/mouse ports in the corner.







I think they are asking for Power On pins on the FIO.

mY sYsTeM iS Not pErfoRmInG aS gOOd As I sAW oN yOuTuBe. WhA t IS a GoOd FaN CuRVe??!!? wHat aRe tEh GoOd OvERclok SeTTinGS FoR My CaRd??  HoW CaN I foRcE my GpU to uSe 1o0%? BuT WiLL i HaVE Bo0tllEnEcKs? RyZEN dOeS NoT peRfORm BetTer wItH HiGhER sPEED RaM!!! dId i WiN teH SiLiCON LotTerrY? yOu ShoUlD dEsHrOuD uR GPU. my SYstEm iS UNDerPerforMiNg iN WarzONE. can mY Pc Run WiNdOwS 11 ?? woUld BaKInG MY GRaPHics card fIX it? MultimETeR TeSTiNG!! aMd'S GpU DrIvErS aRe as goOD aS NviDia's YOU SHoUlD oVERCloCk yOUR ramS To 5000C18

Link to post
Share on other sites
Posted
  • Author
1 hour ago, Needfuldoer said:

The 24-pin connector is near the memory slots, and the 4-pin CPU power is behind the VRM heatsink and keyboard/mouse ports in the corner.






Sorry I think I meant the pin to connect to the power button on the case

Link to post
Share on other sites
Posted
2 hours ago, Cringe_Master245 said:

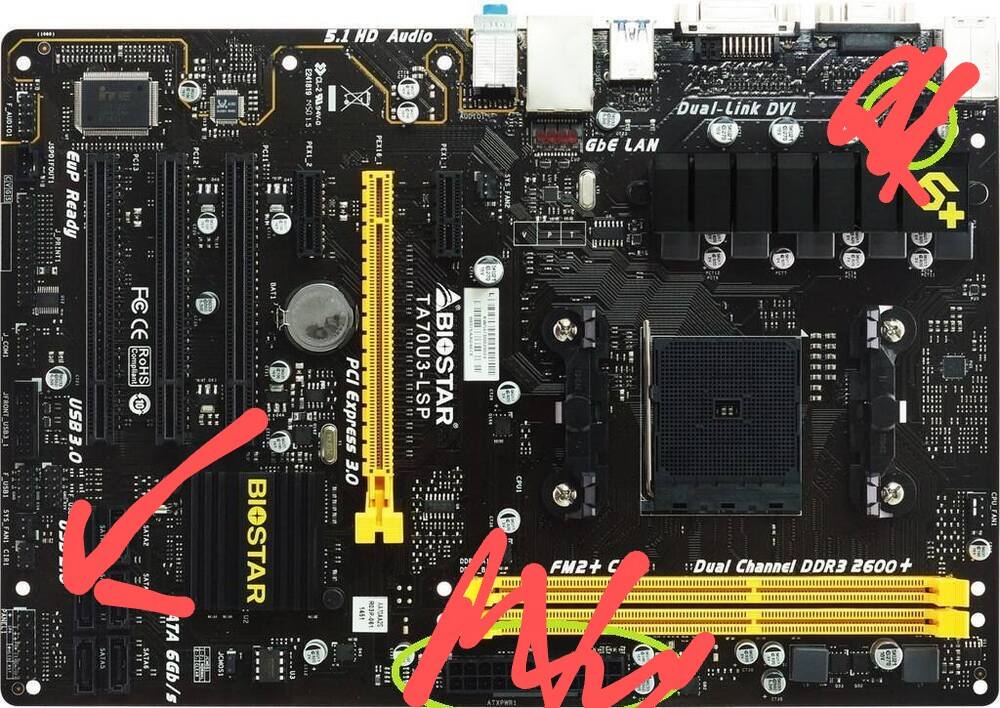

I believe they would be in the lower right corner.

Yup. It looks like there's a guide as to which pin does what printed on the edge of the board.



Unfortunately the "manual" on Biostar's site is just a guide to the BIOS, so that's no help here. 😕

I sold my soul for ProSupport.

Link to post
Share on other sites
