MSI MAG X870 TOMAHAWK WIFI ATX AM5 Motherboard 2x8pin Powering

[_Quinn_]

Do I need to power both 8pin ports or am I fine with just one being powered? I have a ryzen 7 9800x3d. I am also getting the be quiet straight power 12 850w which only has one 8pin from what I can see.

[Cringe_Master245]

26 minutes ago, _Quinn_ said:

Do I need to power both 8pin ports or am I fine with just one being powered? I have a ryzen 7 9800x3d. I am also getting the be quiet straight power 12 850w which only has one 8pin from what I can see.

You do not. The 9800x3d sips power compared to most other high end chips.

@Hinjima I believe is running an OC with only one 8 pin connector

(Sorry Hinjima of you didn't want to be pinged)

[Hinjima]

30 minutes ago, _Quinn_ said:

Do I need to power both 8pin ports or am I fine with just one being powered? I have a ryzen 7 9800x3d. I am also getting the be quiet straight power 12 850w which only has one 8pin from what I can see.

You can just use one 8pin.  The single 8pin EPS CPU power connector can deliver well over 200w of continous power.

A single 8pin is enough to power two 9800X3D's

I run a overclocked 9800X3D on 1 cable and its plenty fine.



@Cringe_Master245 All good, ping me when or if needed

[_Quinn_]

47 minutes ago, Hinjima said:

You can just use one 8pin.  The single 8pin EPS CPU power connector can deliver well over 200w of continous power.

A single 8pin is enough to power two 9800X3D's

I run a overclocked 9800X3D on 1 cable and its plenty fine.



@Cringe_Master245 All good, ping me when or if needed



51 minutes ago, Cringe_Master245 said:

You do not. The 9800x3d sips power compared to most other high end chips.

@Hinjima I believe is running an OC with only one 8 pin connector

(Sorry Hinjima of you didn't want to be pinged)

Thank you both for your answers to my question.

[Hinjima]

6 minutes ago, _Quinn_ said:



Thank you both for your answers to my question.

No Problem!

If you have any more questions or worries, you know where to write

[_Quinn_]

2 hours ago, Hinjima said:

No Problem!

If you have any more questions or worries, you know where to write

Another question is how would I get to use my current GPU RTX2070 which also has an 8pin port when the only 8pin is going to the motherboard. This is only temporary while I am looking for a 5070 Ti.

[Hinjima]

5 minutes ago, _Quinn_ said:

Another question is how would I get to use my current GPU RTX2070 which also has an 8pin port when the only 8pin is going to the motherboard. This is only temporary while I am looking for a 5070 Ti.

You need a different cable to the GPU.

do NOT mix the CPU power cable and the GPU PCIE cables, they look similar but they are completely different in terms of power.

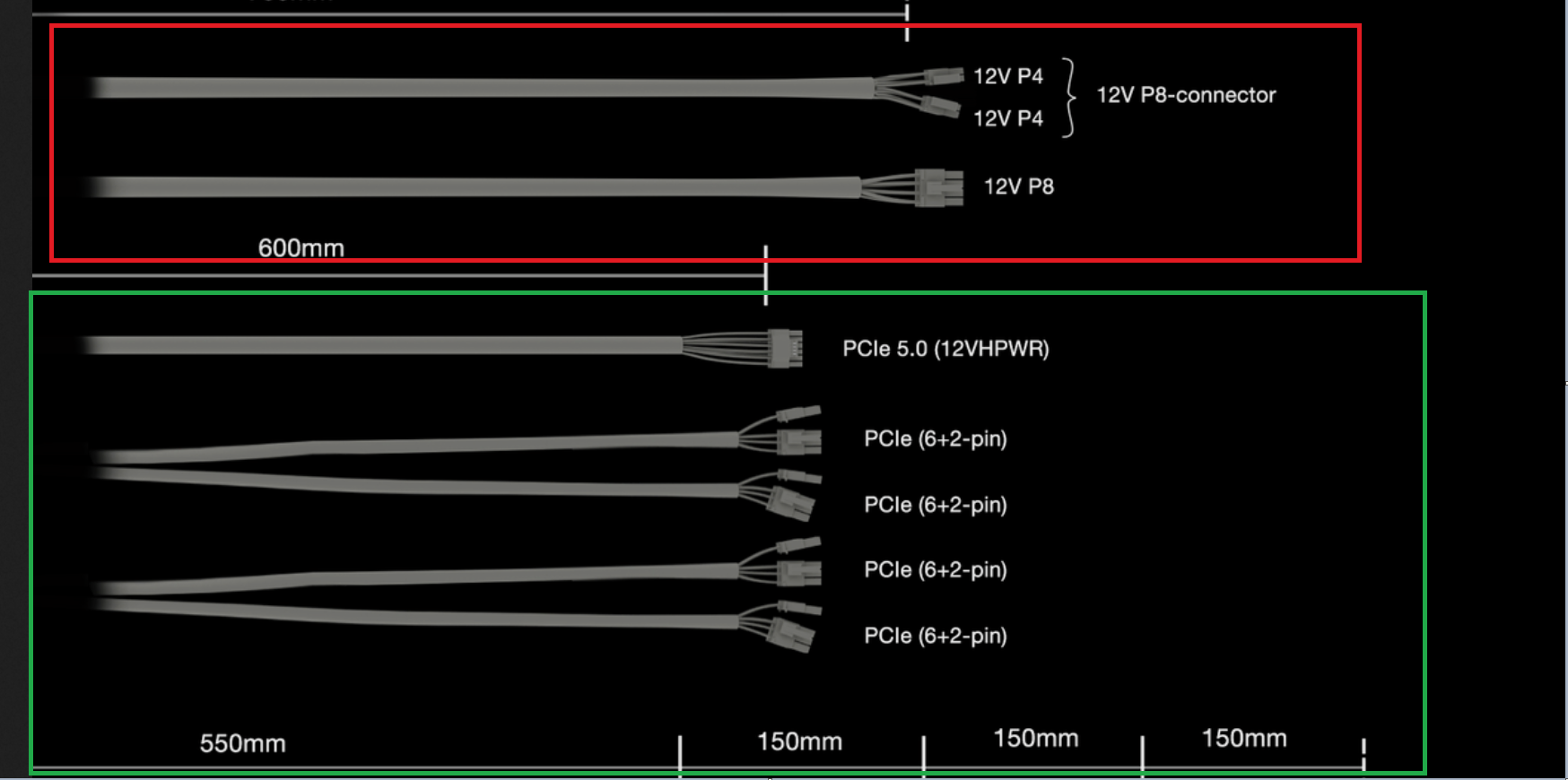

These are the cables your Be Quiet comes with.

RED IS CPU POWER

GREEN IS GRAPHICS CARD POWER

The 12VHPWR is for modern GPU like 5070 Ti.

[_Quinn_]

3 minutes ago, Hinjima said:

You need a different cable to the GPU.

do NOT mix the CPU power cable and the GPU PCIE cables, they look similar but they are completely different in terms of power.



These are the cables your Be Quiet comes with.

RED IS CPU POWER

GREEN IS GRAPHICS CARD POWER

The 12VHPWR is for modern GPU like 5070 Ti.

So I will use the PCle 6+2 for the 2070 and the PCle 5.0 for the 5070 Ti yes?

[Hinjima]

1 minute ago, _Quinn_ said:

So I will use the PCle 6+2 for the 2070 and the PCle 5.0 for the 5070 Ti yes?

That is correct

The 5070 Ti will also come with an adapter so you can use it with PCIE 6+2 cables for older PSU's.

But use the PCIE 5.0 for the 5070 Ti.

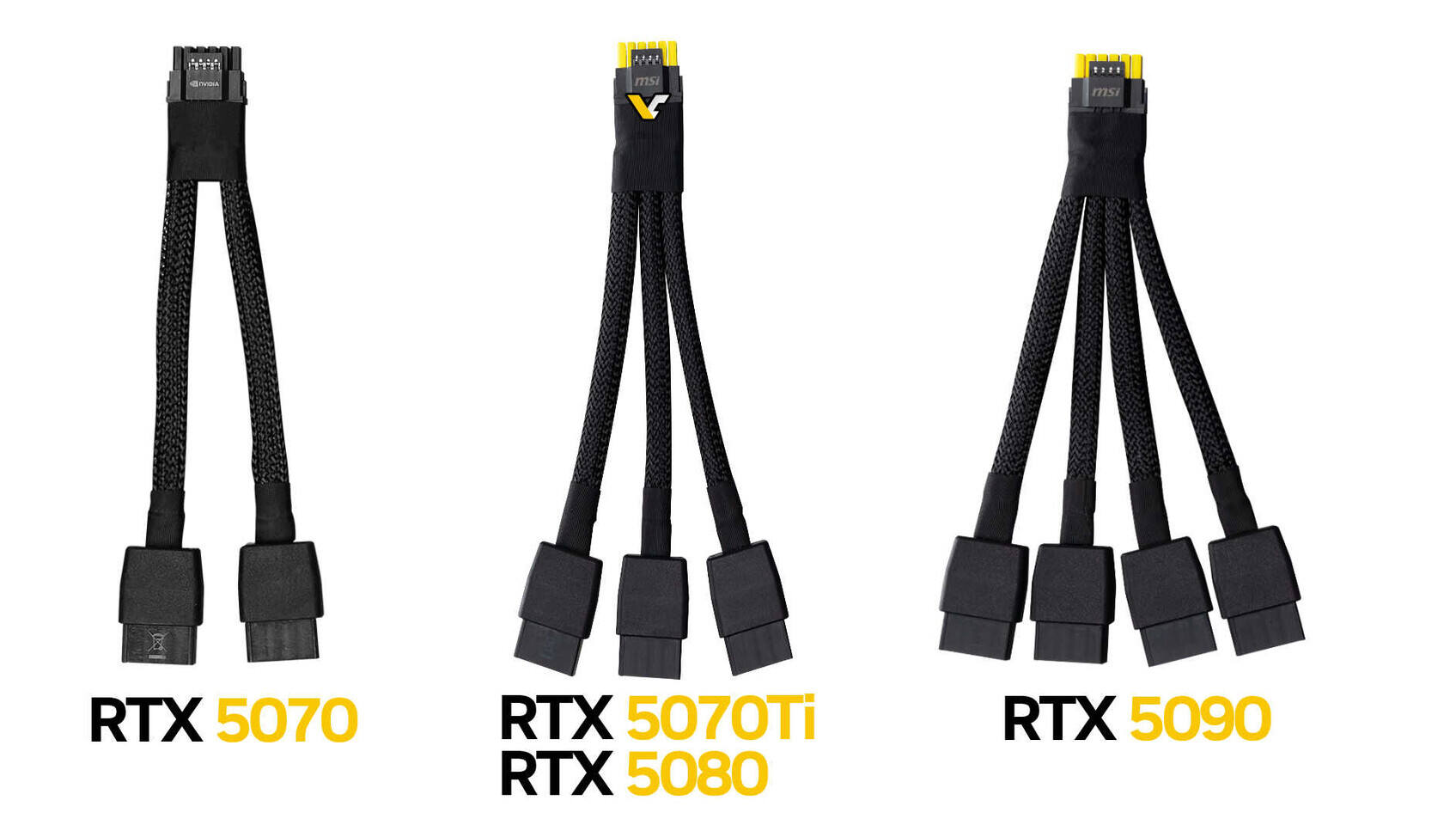

Adapter that comes with different GPU's for older power supplies that do not have the PCIE 5.0 cable.

[_Quinn_]

1 minute ago, Hinjima said:

That is correct

The 5070 Ti will also come with an adapter so you can use it with PCIE 6+2 cables for older PSU's.

But use the PCIE 5.0 for the 5070 Ti.

Thank you very much again. Have a great day!

[Hinjima]

Just now, _Quinn_ said:

Thank you very much again. Have a great day!

No Problem at all

You too!



I will reply in the morning if you have further questions, its 3AM here already.
