HDD not showing Icon

ice856
By ice856
in Storage Devices
 Share
Posted

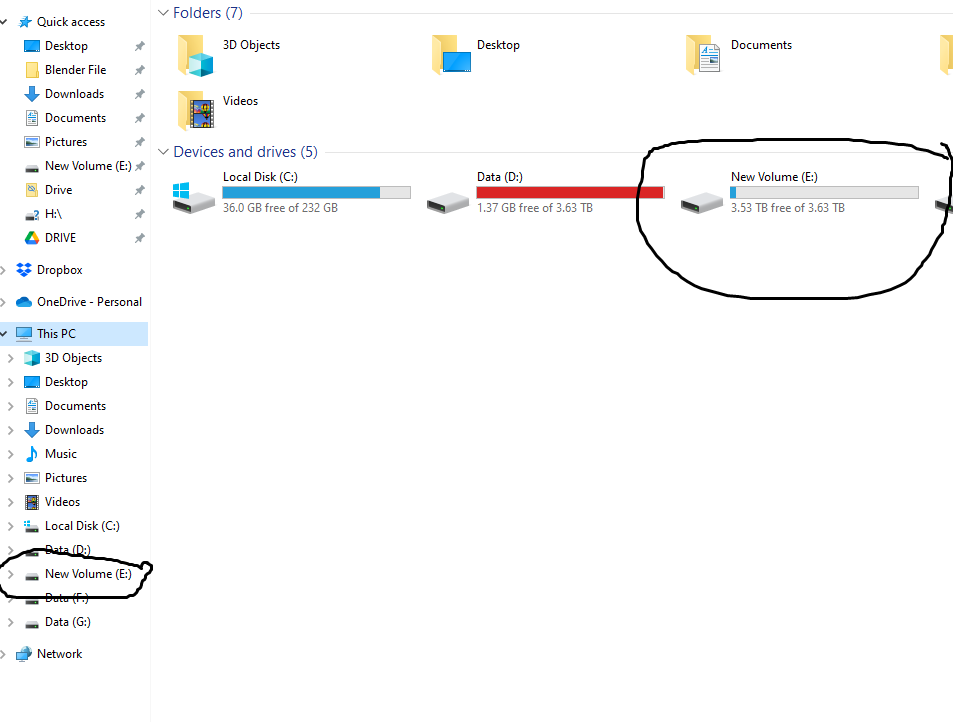

I just install a new HDD and as usual I initialized and format it, but it doesn't show the usual icon on my computer. this the first time that this thing happen to me

i try restarting my pc and still not working. how to fix it?




PC Spec :

Processor : AMD Ryzen 5 3400G  ; Motherboard : MSI B450 A-Pro MAX ; RAM : Corsair Vengeance LPX White 2 x 8Gb

GPU : Sapphire RX 5500 XT 8GB Pulse ; PSU : Cooler Master MWE Gold 750W, 80+Gold ; SSD : Samsung 860 EVO 250GB ; HDD 2 x WD Blue 1TB 3.5" ; Toshiba 1TB 2.5"



Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/
Share on other sites
Link to post
Share on other sites
Posted
2 hours ago, ice856 said:

I just install a new HDD and as usual I initialized and format it, but it doesn't show the usual icon on my computer. this the first time that this thing happen to me

i try restarting my pc and still not working. how to fix it?




Try reformatting it in disk management. Also check crystaldiskinfo.

Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681462
Share on other sites
Link to post
Share on other sites
Posted
  • Author
20 minutes ago, Ryker Robb said:

Try reformatting it in disk management. Also check crystaldiskinfo.

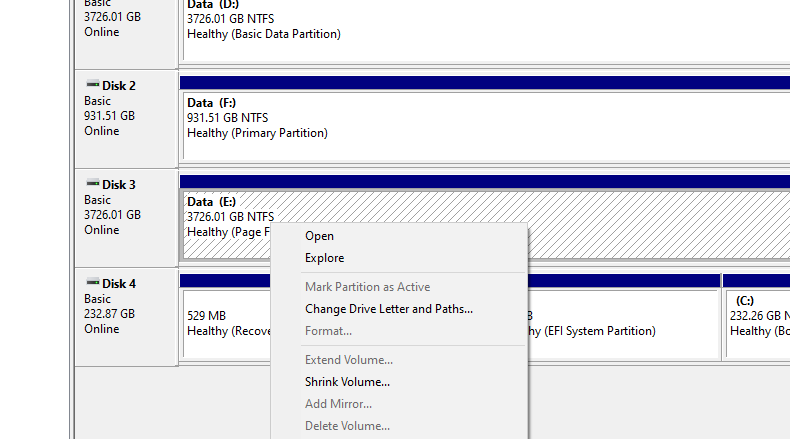

the format option is greyed out, and everything looks fine on crystal disk info


PC Spec :

Processor : AMD Ryzen 5 3400G  ; Motherboard : MSI B450 A-Pro MAX ; RAM : Corsair Vengeance LPX White 2 x 8Gb

GPU : Sapphire RX 5500 XT 8GB Pulse ; PSU : Cooler Master MWE Gold 750W, 80+Gold ; SSD : Samsung 860 EVO 250GB ; HDD 2 x WD Blue 1TB 3.5" ; Toshiba 1TB 2.5"



Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681478
Share on other sites
Link to post
Share on other sites
Posted
6 minutes ago, ice856 said:

the format option is greyed out, and everything looks fine on crystal disk info


Just to confirm there's no important data on this drive? Follow this guide: https://www.seagate.com/support/kb/how-to-diskpart-eraseclean-a-drive-through-the-command-prompt-005929en/#:~:text=From the diskpart prompt%2C type clean and press Enter.,the drive will be erased. to delete the partition on the drive.

Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681483
Share on other sites
Link to post
Share on other sites
Posted
  • Author
1 hour ago, Ryker Robb said:

Just to confirm there's no important data on this drive? Follow this guide: https://www.seagate.com/support/kb/how-to-diskpart-eraseclean-a-drive-through-the-command-prompt-005929en/#:~:text=From the diskpart prompt%2C type clean and press Enter.,the drive will be erased. to delete the partition on the drive.

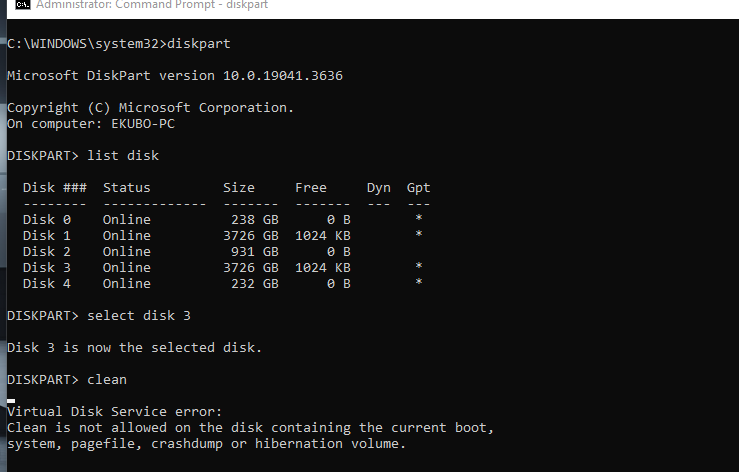

its a brand new HDD so its empty. i tried it and it shows this




PC Spec :

Processor : AMD Ryzen 5 3400G  ; Motherboard : MSI B450 A-Pro MAX ; RAM : Corsair Vengeance LPX White 2 x 8Gb

GPU : Sapphire RX 5500 XT 8GB Pulse ; PSU : Cooler Master MWE Gold 750W, 80+Gold ; SSD : Samsung 860 EVO 250GB ; HDD 2 x WD Blue 1TB 3.5" ; Toshiba 1TB 2.5"



Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681540
Share on other sites
Link to post
Share on other sites
Posted
20 minutes ago, ice856 said:

its a brand new HDD so its empty. i tried it and it shows this




i see, you need to disable the pagefile on that disk. Type "Advanced system settings" into control panel, click settings for performance under the advanced tab, under the advanced tab again, change virtual memory, set no paging file for the drive, then restart. see if that fixes the problem.

Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681557
Share on other sites
Link to post
Share on other sites
Posted
  • Author
2 hours ago, Ryker Robb said:

i see, you need to disable the pagefile on that disk. Type "Advanced system settings" into control panel, click settings for performance under the advanced tab, under the advanced tab again, change virtual memory, set no paging file for the drive, then restart. see if that fixes the problem.

I can format the hard drive but the icon still the same

PC Spec :

Processor : AMD Ryzen 5 3400G  ; Motherboard : MSI B450 A-Pro MAX ; RAM : Corsair Vengeance LPX White 2 x 8Gb

GPU : Sapphire RX 5500 XT 8GB Pulse ; PSU : Cooler Master MWE Gold 750W, 80+Gold ; SSD : Samsung 860 EVO 250GB ; HDD 2 x WD Blue 1TB 3.5" ; Toshiba 1TB 2.5"



Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681600
Share on other sites
Link to post
Share on other sites
Posted
  • Author
7 hours ago, Ryker Robb said:

But you can't delete the partition or run a clean command in diskpart?

so apparently when disabling the page file setting, i need to click "Set" then ok and then restart my pc.

Now i can format my hard drive, i format using Disk management and using clean command in DISKPART, both were successful but its still wont show the normal HDD icon.

PC Spec :

Processor : AMD Ryzen 5 3400G  ; Motherboard : MSI B450 A-Pro MAX ; RAM : Corsair Vengeance LPX White 2 x 8Gb

GPU : Sapphire RX 5500 XT 8GB Pulse ; PSU : Cooler Master MWE Gold 750W, 80+Gold ; SSD : Samsung 860 EVO 250GB ; HDD 2 x WD Blue 1TB 3.5" ; Toshiba 1TB 2.5"



Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16681836
Share on other sites
Link to post
Share on other sites
Posted

Can you delete all cached icons, and restart your PC?
it should be under  Disk Cleanup > C > thumbnails

Or

Start  > Settings  > System  > Storage  > Cleanup recommendations > Temporary files > Thumbnails



it’s this, or C:\Users\%username%\AppData\Local\Microsoft\Windows\Explorer. (and delete all cached icons here)





Spoiler
CPU : Intel 14gen i7-14700K
COOLER :  Thermalright Peerless Assassin 120 White + thermaltake toughfan 12 white + Thermal Grizzly - CPU Contact Frame Intel 13./14. +  Coollaboratory Liquid Ultra
GPU : MSI RTX 2070 Armor @GPU 2050MHz Mem 8200MHz -> USB C 10Gb/s cable 2m -> Unitek 4x USB HUB 10 Gb/s (Y-HB08003)
MOBO : MSI MEG Z690 UNIFY
RAM :  Corsair VENGEANCE DDR5 RAM 64 GB (2 x 32 GB) 6400 MHz CL32 (CMK64GX5M2B6400C32)
SSD : Intel Optane 905P 960GB U.2 (OS) + 2 x WD SN850X 4TB + 2 x PNY CS3140 2TB + ASM2824 PCIe switch -> 4 x Plextor M8PeG 1TB + flexiDOCK MB014SP-B -> Crucial MX500 2TB + GoodRam Iridium PRO 960GB + Samsung 850 Pro 512GB
HDD : WD White 18TB WD180EDFZ + SATA port multiplier adp6st0-j05 (JMB575) ->  WD Gold 8TB WD8002FRYZ + WD Gold 4TB WD4002FYYZ + WD Red PRO 4TB WD4001FFSX + WD Green 2TB WD20EARS
EXTERNAL
HDD/SSD :  		XT-XINTE LM906 (JMS583) -> Plextor M8PeG 1TB + WD My Passport slim 1TB + LaCie Porsche Design Mobile Drive 1TB USB-C + Zalman ZM-VE350 -> Goodram IRDM PRO 240GB
PSU :  Super Flower leadex platinum 750 W biały -> Bitfenix alchemy extensions białe/białe + AsiaHorse 16AWG White
UPS :  CyberPower CP1500EPFCLCD -> Brennenstuhl primera-line 8 -> Brennenstuhl primera-line 10
LCD :  LG 32UD59-B + LG flatron IPS236 -> Silverstone SST-ARM11BC
CASE :  Fractal R5 Biały + Lian Li BZ-H06A srebrny + 6 x Thermaltake toughfan 14 white + Thermalright TL-B8W
SPEAKERS :  Aune S6 Pro -> Topping PA3-B -> Polk S20e black -> Monoprice stand 16250
HEADPHONES :  TOSLINK 2m -> Aune S6 Pro -> 2 x Monoprice Premier 1.8m 16AWG 3-pin XLR -> Monoprice Monolith THX AAA 887 -> 4-pin XLR na 2 x 3.5mm 16 cores OCC 2m Cable -> HiFiMAN Edition XS -> sheepskin pads + 4-pin XLR na 2 x 2.5mm ABLET silver 2m  Cable -> Monoprice Monolith M1060 + Brainwavz HM100 -> Brainwavz sheepskin oval pads + Wooden double Ɪ Stand + Audio-Technica ATH-MSR7BK -> sheepskin pads + Multibrackets MB1893 + Sennheiser Momentum 3 +  Philips Fidelio X2HR/00 + JBL J88 White
MIC :  Tonor TC30 -> Mozos SB38
KEYBOARD : Corsair STRAFE RGB Cherry MX Silent (EU) + Glorious PC Gaming Race Stealth Slim - Full Size Black + PQI MyLockey
MOUSE :  Logitech MX ERGO + 2 x Logitech MX Performance + Logitech G Pro wireless + Logitech G Pro Gaming -> Hotline Games 2.0 Plus + Corsair MM500 3xl + Corsair MM300 Extended + Razer goliathus control
CONTROLLERS :  Microsoft xbox series x controller pc (1VA-00002) -> brainwavz audio Controller Holder UGC2 + Microsoft xbox 360 wireless black + Ravcore Javelin
NET :  Intel x520-DA2 -> 2 x FTLX8571D3BCV-IT + 2 x ASUS ZenWiFi Pro XT12
NAS :  Qnap TS-932X-2G -> Noctua NF-P14s redux 1200 PWM -> Kingston 16GB 2400Mhz CL14 (HX424S14IB/16) -> 9 x Crucial MX500 2TB ->  2 x FTLX8571D3BCV-IT -> 2 x Digitus (DK-HD2533-05/3)
Link to comment
https://linustechtips.com/topic/1605205-hdd-not-showing-icon/#findComment-16682118
Share on other sites
Link to post
Share on other sites
Posted
  • Author

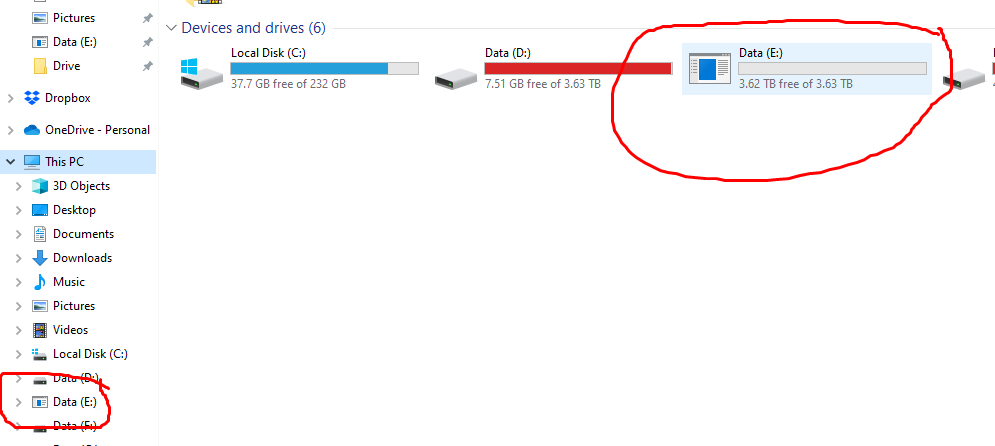

So i dont know what happen but it fix it self. now it show the icon again. sorry for wasting your time and thank you for all the help
