Low 3DMark Fire Strike score but good Time Spy score? RX 7800 XT

[Notaklutz]

Hi, I have been testing out my new Gigabyte OC 7800 XT and tried doing some 3DMark benchmarks. My score on Fire Strike is really bad, but I get an average score on Time Spy. Does anyone know what is going on? All my drivers are updated. Only thing I did not update is my BIOS. Resizable BAR and EXPO are on. My specs are as follows:



CPU: AMD Ryzen 7 7700X 4.5 GHz 8-Core Processor
CPU Cooler: Thermalright Peerless Assassin 120 SE 66.17 CFM CPU Cooler
Motherboard: Asus TUF GAMING B650M-E WIFI Micro ATX AM5 Motherboard
Memory: TEAMGROUP T-Force Vulcan 32 GB (2 x 16 GB) DDR5-6000 CL30 Memory
Storage: Lexar NM790 2 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive
Storage: Seagate Barracuda Compute 2 TB 3.5" 7200 RPM Internal Hard Drive
Video Card: Gigabyte GAMING OC Radeon RX 7800 XT 16 GB Video Card
Case: Corsair 4000D Airflow ATX Mid Tower Case
Power Supply: Corsair RM850x (2021) 850 W 80+ Gold Certified Fully Modular ATX Power Supply



Benchmark for Fire Strike:







Benchmark for Time Spy:

Edited December 14, 2024 by Notaklutz

[Sanedish]

I suppose if it doesn't show off in gaming just ignore it.

[Notaklutz]

2 hours ago, Sanedish said:

I suppose if it doesn't show off in gaming just ignore it.

Yeah, my games have been playing fine (mainly Cyberpunk 2077). Guess I am just paranoid about something being wrong with my card since this is my first build

Edited December 14, 2024 by Notaklutz

[podkall]

2 minutes ago, Notaklutz said:

Yeah, my games have been playing fine (mainly Cyberpunk 2077). Guess I am just paranoid about something being wrong with my card since this is my first build

Have you tried Cyberpunk's built in benchmark test? There might be 7700x + 7800 XT PCs on youtube that benchmarked Cyberpunk too

[191x7]

20 minutes ago, Notaklutz said:

Yeah, my games have been playing fine (mainly Cyberpunk 2077). Guess I am just paranoid about something being wrong with my card since this is my first build

Do update the bios. Check if you've installed the latest chipset drivers from AMD. Check if your SSD-s have the latest firmware on them.

[Notaklutz]

On 12/14/2024 at 6:30 PM, podkall said:

Have you tried Cyberpunk's built in benchmark test? There might be 7700x + 7800 XT PCs on youtube that benchmarked Cyberpunk too

Yes, average FPS seems to be a bit lower than some of the other tests I have compared to. But it is around a difference of 5 FPS or less.

[Notaklutz]

On 12/14/2024 at 6:48 PM, 191x7 said:

Do update the bios. Check if you've installed the latest chipset drivers from AMD. Check if your SSD-s have the latest firmware on them.

Thanks, I followed your advice. Unfortunately, I got an even lower score on Fire Strike. I am not sure why this is happening but I've spent so long trying to fix the issue that I kind of want to just ignore it and play my games haha

[podkall]

39 minutes ago, Notaklutz said:

Yes, average FPS seems to be a bit lower than some of the other tests I have compared to. But it is around a difference of 5 FPS or less.

Is PBO off? Benchmarks might have PBO on.

[191x7]

5 hours ago, Notaklutz said:

Thanks, I followed your advice. Unfortunately, I got an even lower score on Fire Strike. I am not sure why this is happening but I've spent so long trying to fix the issue that I kind of want to just ignore it and play my games haha

Do you have some overlay running?



Can you run Intel Presentmon to see what's holding the system back in Firestrike?



Do you have nvidia physx installed?

[Notaklutz]

4 hours ago, podkall said:

Is PBO off? Benchmarks might have PBO on.

PBO is off. I am worried about turning it on and voiding the warranty

[Notaklutz]

19 minutes ago, 191x7 said:

Do you have some overlay running?



Can you run Intel Presentmon to see what's holding the system back in Firestrike?



Do you have nvidia physx installed?

No, I do not have any overlays on when I run the in-game benchmark. I will look into Intel Presentmon. I don’t know what Nvidia physx is. This is a brand new system though so there weren’t any drivers that I did not install myself

[191x7]

1 hour ago, Notaklutz said:

PBO is off. I am worried about turning it on and voiding the warranty

How would it void the warranty?



1 hour ago, Notaklutz said:

No, I do not have any overlays on when I run the in-game benchmark. I will look into Intel Presentmon. I don’t know what Nvidia physx is. This is a brand new system though so there weren’t any drivers that I did not install myself

Well then, install Physx.

[podkall]

4 hours ago, 191x7 said:

Well then, install Physx.

Install Nvidia PhysX on an AMD card?





6 hours ago, Notaklutz said:

PBO is off. I am worried about turning it on and voiding the warranty

PBO is AMD's auto OC function, it doesn't void warranty.

[191x7]

1 hour ago, podkall said:

Install Nvidia PhysX on an AMD card?



PhysX helps with 3DMark scores, at least with the DX10 and DX11 benchmarks.

Also, PhysX can run on the CPU. MadOnion/Futuremark/UL used the PhysX libraries since nVidia was a sponsor.

[podkall]

6 minutes ago, 191x7 said:

PhysX helps with 3DMark scores, at least with the DX10 and DX11 benchmarks.

Also, PhysX can run on the CPU. MadOnion/Futuremark/UL used the PhysX libraries since nVidia was a sponsor.

Isn't PhysX something so basic that should install With Windows essentially?

[191x7]

1 hour ago, podkall said:

Isn't PhysX something so basic that should install With Windows essentially?

No. It installs with Nvidia drivers or as a separate tool. Even Driver Booster has the option to install is just like Visual C and Net framework.

[Notaklutz]

19 hours ago, 191x7 said:

How would it void the warranty?



Well then, install Physx.

I thought it was technically out of spec. so it would void your warranty but as the below commenter said apparently it does not:

14 hours ago, podkall said:

PBO is AMD's auto OC function, it doesn't void warranty.

Thanks for the info.



Here is what I did:

1. Downloaded PresentMon
2. Installed PhysX
3. Restarted computer and turned on PBO in BIOS

I noticed in PresentMon that my frames were not able to go higher than 140 fps or so and realized that I had Radeon Chill on. So I turned that off as well. After all this, I ran the benchmark again a few times. PresentMon had my GPU utilization at high 90's% for most of the time, so I guess that is what is holding it back. This is the latest run and it is in line with the other runs I did with these changes:

https://www.3dmark.com/fs/32659410

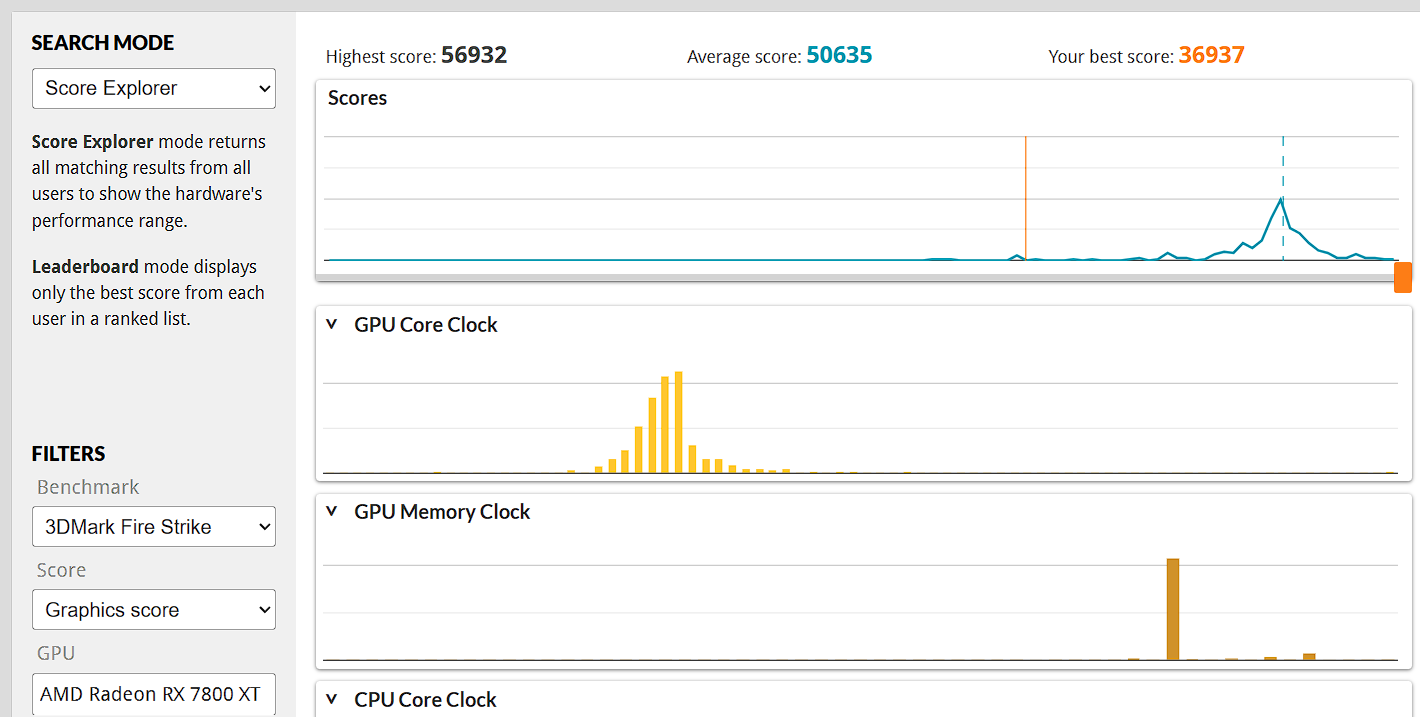

These observations were made using score explorer searching for my CPU + GPU combo and the numbers from my latest run:

My physics and combined score are not that far from the average (less than 1000 score difference for both).

My graphics score was 36898. This was better than my previous highest score by 3500 or so, but the average is 50635.



[191x7]

9 hours ago, Notaklutz said:

I thought it was technically out of spec. so it would void your warranty but as the below commenter said apparently it does not:

Thanks for the info.



Here is what I did:

1. Downloaded PresentMon
2. Installed PhysX
3. Restarted computer and turned on PBO in BIOS

I noticed in PresentMon that my frames were not able to go higher than 140 fps or so and realized that I had Radeon Chill on. So I turned that off as well. After all this, I ran the benchmark again a few times. PresentMon had my GPU utilization at high 90's% for most of the time, so I guess that is what is holding it back. This is the latest run and it is in line with the other runs I did with these changes:

https://www.3dmark.com/fs/32659410



These observations were made using score explorer searching for my CPU + GPU combo and the numbers from my latest run:

My physics and combined score are not that far from the average (less than 1000 score difference for both).

My graphics score was 36898. This was better than my previous highest score by 3500 or so, but the average is 50635.





Just to make sure;



This GPU driver https://www.amd.com/en/resources/support-articles/release-notes/RN-RAD-WIN-24-12-1.html



This chipset driver: https://www.amd.com/en/resources/support-articles/release-notes/RN-RYZEN-CHIPSET-6-10-17-152.html



This Bios: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-e-wifi/helpdesk_bios?model2Name=TUF-GAMING-B650M-E-WIFI



?

[Notaklutz]

14 hours ago, 191x7 said:

Just to make sure;



This GPU driver https://www.amd.com/en/resources/support-articles/release-notes/RN-RAD-WIN-24-12-1.html



This chipset driver: https://www.amd.com/en/resources/support-articles/release-notes/RN-RYZEN-CHIPSET-6-10-17-152.html



This Bios: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-e-wifi/helpdesk_bios?model2Name=TUF-GAMING-B650M-E-WIFI



?

Yes, I have the versions you linked:





[191x7]

3 hours ago, Notaklutz said:

Yes, I have the versions you linked:





Can you delete the 3dmark profile in Adrenalin and retest?

[Notaklutz]

On 12/18/2024 at 11:39 PM, 191x7 said:

Can you delete the 3dmark profile in Adrenalin and retest?

Hey, sorry I took a while to get back to you. I kind of just gave up on tinkering with it for a few weeks over the holidays.



I had my global experience on the "quality" preset so I changed it to "default". Then I reset the 3dmark profile. I am very happy to say that my Time Spy score is in line with the average now :





Thank you very much for your help! I guess something in my Adrenalin settings was dropping my graphics score.
