How to enable re size bar

dita

Hey, this is probably asked a lot but one more question isnt gonna hurt anybody 😁

Basically i was wondering, if my gpus bios wasnt updated would i even see the re size bar option in bios? I enabled it in bios, my launch CSM is always disabled, my bios mode is UEFI, so pretty much i did everything except updating the gpu 😅...because i tought that BIOS settings will appear only if gpu is updated. In System Information in NVCP it says its not enabled so im guessing it still needs to be updated. I have asus strix 3070 and i know that 3070 and above need to get updated, but im a 2nd owner so i tought the guy maybe did it 🤷‍♀️.

Anyways let me know if i missed to do or enable something.

Thanks in advance!!

Link to comment
Share on other sites

Link to post
Share on other sites

You need to enable it in BIOS look for:
On Gigabyte board for example its Settings -> IO Ports

Above 4G Decoding

Re-Size Bar Support

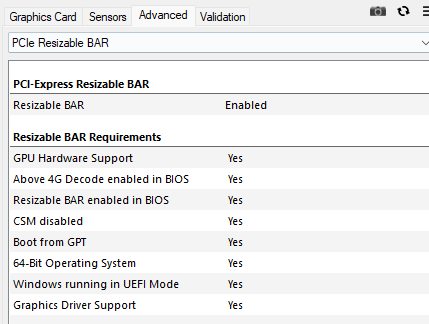

Then you can check in GPU-Z

R9 5900X, Arctic Liquid Freezer II 240, Gigabyte B550 AORUS ELITE V2, 2x16GB Kingston FuryX 3800MHZ CL18 Hynix DJR "Tuned" , Gigabyte RTX 4090 Gaming OC, Windows 11

Link to comment
Share on other sites

Link to post
Share on other sites

If you have issues, the latest vBIOS for that card is here: https://rog.asus.com/graphics-cards/graphics-cards/rog-strix/rog-strix-rtx3070-o8g-gaming-model/helpdesk_bios/



(Verify that's what you have)

Ryzen 7 7800x3D -  Asus RTX4090 TUF OC- Asrock X670E Taichi - 32GB DDR5-6000CL30 - SuperFlower 1000W - Fractal Torrent - Assassin IV - 42" LG C2

Ryzen 7 5800x - XFX RX6600 - Asus STRIX B550i - 32GB DDR4-3200CL14 - Corsair SF750 - Lian Li O11 Mini - EK 360 AIO - Asus PG348Q

Link to comment
Share on other sites

Link to post
Share on other sites

12 minutes ago, KnoT said:

You need to enable it in BIOS look for:
On Gigabyte board for example its Settings -> IO Ports

Above 4G Decoding

Re-Size Bar Support

Then you can check in GPU-Z

I checked gpuz, everything is on YES except ''resize bar enabled in bios''...hmm idk how tho

Link to comment
Share on other sites

Link to post
Share on other sites

4 minutes ago, dita said:

I checked gpuz, everything is on YES except ''resize bar enabled in bios''...hmm idk how tho

10 sec in Google:





R9 5900X, Arctic Liquid Freezer II 240, Gigabyte B550 AORUS ELITE V2, 2x16GB Kingston FuryX 3800MHZ CL18 Hynix DJR "Tuned" , Gigabyte RTX 4090 Gaming OC, Windows 11

Link to comment
Share on other sites

Link to post
Share on other sites

Just now, KnoT said:

10 sec in Google:





Nah i mean idk how it says its not enabled, i did all that in BIOS, ill double check

Link to comment
Share on other sites

Link to post
Share on other sites

7 minutes ago, KnoT said:

10 sec in Google:





i just double checked, everything is good in BIOS so idk whats the issue

Link to comment
Share on other sites

Link to post
Share on other sites

42 minutes ago, dita said:

I checked gpuz, everything is on YES except ''resize bar enabled in bios''...hmm idk how tho

If it says Re-Bar is on in GPU-Z, its on.



What is the issue?

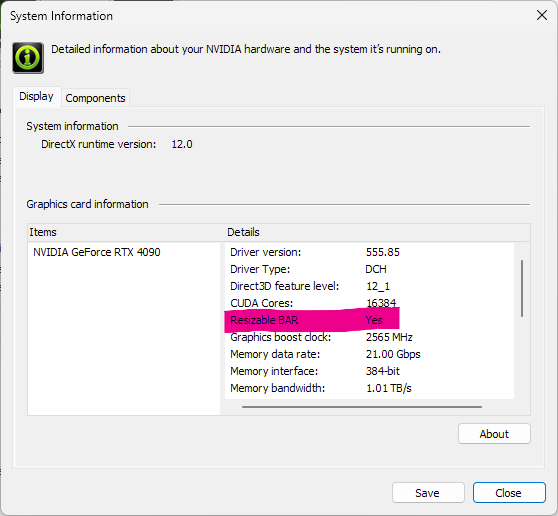

If you want another opinion, check Nvidia Control Panel. Click System Information on the bottom left.




Ryzen 7 7800x3D -  Asus RTX4090 TUF OC- Asrock X670E Taichi - 32GB DDR5-6000CL30 - SuperFlower 1000W - Fractal Torrent - Assassin IV - 42" LG C2

Ryzen 7 5800x - XFX RX6600 - Asus STRIX B550i - 32GB DDR4-3200CL14 - Corsair SF750 - Lian Li O11 Mini - EK 360 AIO - Asus PG348Q

Link to comment
Share on other sites

Link to post
Share on other sites

12 minutes ago, GuiltySpark_ said:

If it says Re-Bar is on in GPU-Z, its on.



What is the issue?



If you want another opinion, check Nvidia Control Panel. Click System Information on the bottom left.




The issue was weird, i double checked my gpu model, updated vbios again and now it works perfectly. Even tho it said driver was installed it didnt work, now its fixed. In gpuz it said its not enabled in bios, but it was, rly weird

Link to comment
Share on other sites

Link to post
Share on other sites

1 hour ago, dita said:

i know that 3070 and above need to get updated,

only the hash rate limited ones dont need an update, everything before those do.



btw, i have a launch 3070, no resize bar and there are no issues whatsoever. but anyways the "issue" seems to be fixed (i say *issue* because depending on title performance is actually worse with resize bar)

The direction tells you... the direction

-Scott Manley, 2021



Softwares used:

Corsair Link (Anime Edition)

MSI Afterburner

OpenRGB

Lively Wallpaper

OBS Studio

Shutter Encoder

Avidemux

FSResizer

Audacity

VLC

WMP

GIMP

HWiNFO64

Paint

3D Paint

GitHub Desktop

Superposition

Prime95

Aida64

GPUZ

CPUZ

Generic Logviewer







Link to comment
Share on other sites

Link to post
Share on other sites

3 minutes ago, Mark Kaine said:

only the hash rate limited ones dont need an update, everything before those do.



btw, i have a launch 3070, no resize bar and there are no issues whatsoever. but anyways the "issue" seems to be fixed (i say *issue* because depending on title performance is actually worse with resize bar)

Its actually not, Nvidia limits rebar in drivers only to selected Games and my guess would be 2 games that see benefit, you can always force it with Nvidia Inspector.
