w3680 bclk

welp i finally got a w3680 only to find the stupid thing not wanting to post at 3300 and walling around 3200 bios boot on 1 stick which is pretty depressing (vtt 1.6v)



tried lower multis and found that even 3000 at 215 bclk only half posts, then ditched the ram oc entirely only to find the stupid thing still half posts and gets stuck at code 52 whilst being at 215bclk and pcie at 120

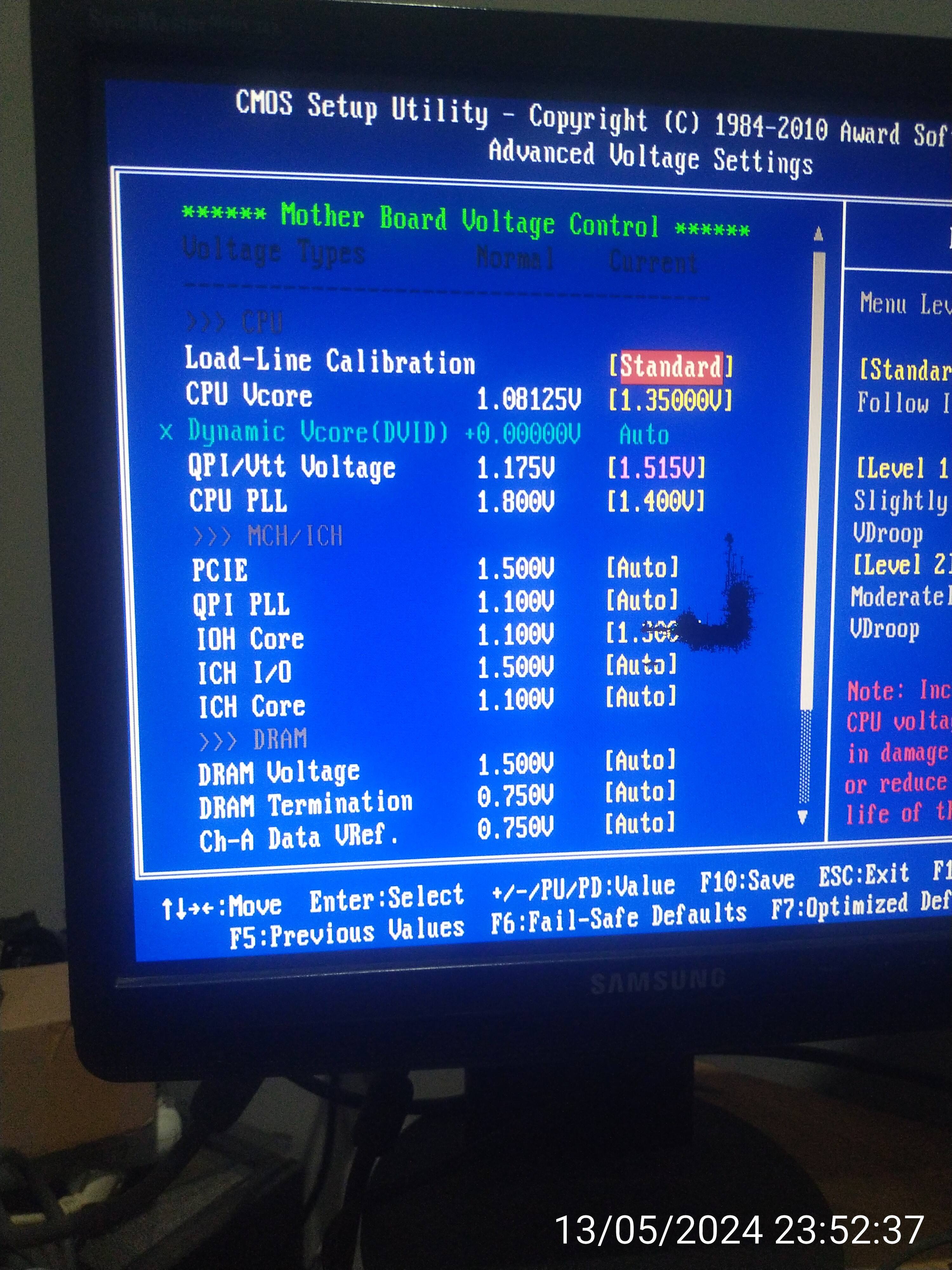

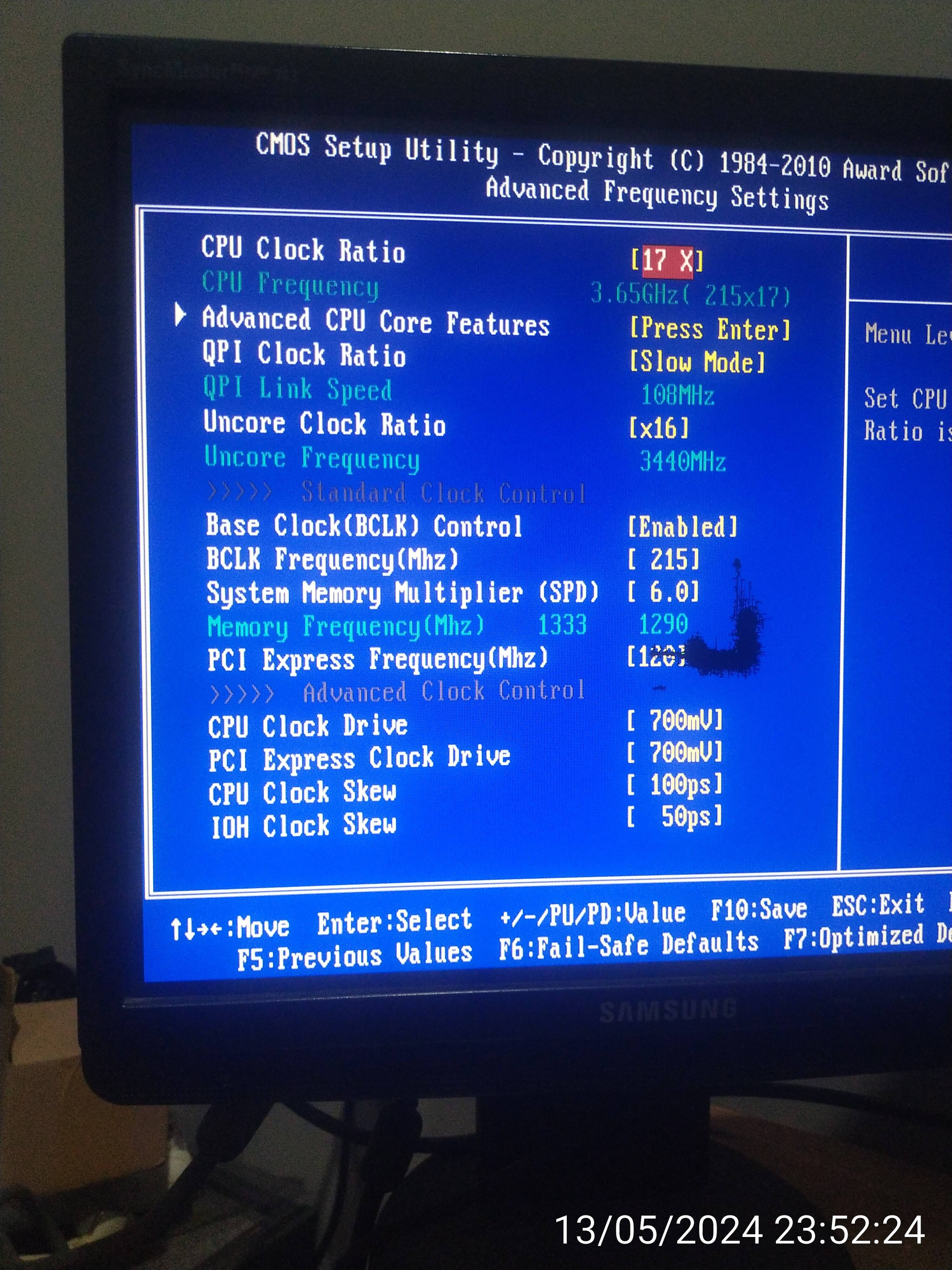

IMG_20240513_235237.thumb.jpg.6bd192038d3a3f664643a419204439d1.jpgIMG_20240513_235224.thumb.jpg.d0d43397a3649a95be75cc0eecef84ed.jpg



am i doing something wrong here or is this w3680 just straight up trash

Link to comment
Share on other sites

Link to post
Share on other sites

what mb do you have? cuse people have gotten like 4,3ish form a i7920... posably the more cores the lower the the speed you will get.

I have dyslexia plz be kind to me. dont like my post dont read it or respond thx

also i edit post alot because you no why...

Thrasher_565 hub links build logs

Corsair Lian Li Bykski Barrow thermaltake nzxt aquacomputer 5v argb pin out guide + argb info

5v device to 12v mb header

Odds and Sods Argb Rgb Links



Link to comment
Share on other sites

Link to post
Share on other sites

1 hour ago, thrasher_565 said:

what mb do you have? cuse people have gotten like 4,3ish form a i7920... posably the more cores the lower the the speed you will get.

920s are especially bad. The 6-core Xeons usually do 4.0Ghz at the worst, decent bins do 4.2-4.5, good bins do 4.5 at low voltages or much higher clocks at safe or benchable voltages.

3 hours ago, Somerandomtechyboi said:

tried lower multis and found that even 3000 at 215 bclk only half posts, then ditched the ram oc entirely only to find the stupid thing still half posts and gets stuck at code 52 whilst being at 215bclk and pcie at 120

Why is PCIe at 120? Isn't that just begging for instability? I always kept PCIe at 100 IIRC. Make sure you try higher and lower BCLK numbers, X58 will hit a "soft wall" (best way to describe it I think), where pushing higher will actually be stable again. You've also got vCore at only 1.35v, give it 1.45 or even 1.5v to see what it will do, then bring voltages back down (you can daily 1.42-1.45v without much issue, 1.4v if you're super cautious).

Intel HEDT and Server platform enthusiasts: Intel HEDT Xeon/i7 Megathread



Main PC

CPU: i9 7980XE @4.5GHz/1.22v/-2 AVX offset

Cooler: EKWB Supremacy Block - custom loop w/360mm +280mm rads

Motherboard: EVGA X299 Dark

RAM:4x8GB HyperX Predator DDR4 @3200Mhz CL16

GPU: Nvidia FE 2060 Super/Corsair HydroX 2070 FE block

Storage:  1TB MP34 + 1TB 970 Evo + 500GB Atom30 + 250GB 960 Evo

Optical Drives: LG WH14NS40

PSU: EVGA 1600W T2

Case & Fans: Corsair 750D Airflow - 3x Noctua iPPC NF-F12 + 4x Noctua iPPC NF-A14 PWM

OS: Windows 11



Display: LG 27UK650-W (4K 60Hz IPS panel)

Mouse: EVGA X17

Keyboard: Corsair K55 RGB



Mobile/Work Devices: 2020 M1 MacBook Air (work computer) - iPhone 13 Pro Max - Apple Watch S3



Other Misc Devices: iPod Video (Gen 5.5E, 128GB SD card swap, running Rockbox), Nintendo Switch

Link to comment
Share on other sites

Link to post
Share on other sites

4 hours ago, thrasher_565 said:

what mb do you have? cuse people have gotten like 4,3ish form a i7920... posably the more cores the lower the the speed you will get.

not interested in core clocks and i can only start properly ocing core once i get my cooler properly mounted cause gravity mount destroys cooling performance, though i guess i can run it at 4-4.2ghz and see how much vcore it needs as a reference to how good this thing actually is



2 hours ago, Zando_ said:

Why is PCIe at 120? Isn't that just begging for instability? I always kept PCIe at 100 IIRC. Make sure you try higher and lower BCLK numbers, X58 will hit a "soft wall" (best way to describe it I think), where pushing higher will actually be stable again. You've also got vCore at only 1.35v, give it 1.45 or even 1.5v to see what it will do, then bring voltages back down (you can daily 1.42-1.45v without much issue, 1.4v if you're super cautious).

right vcore

just a little cautious due to the cooler otherwise id constantly run it at 1.5v but ill see if 1.5v helps



not exactly afraid of high volt considering i run 1.94v vtt for my w3503s when pushing 3300+



also got an i7 930 which seems to be a decent sample but refuses to go above 1.7v vtt so thats another frustrating cpu



pcie 115-120 is what i usually run cause afaik you need that for higher bclk but ill try 100 and 103



and ive also tried using literal default settings and run 220 bclk with vcore 1.35v vtt 1.5v vioh 1.3v everything else default and no post, confirmed bclk issue cause stuck on code bf, tried enabling slowmode which got it to half post at 220 and stuck at code 50



i fucking swear if this thing is a trash sample im gonna be pissed but i guess i have something to pair one of my other x58a ud3r with or maybe even my ex58 ud3r just to resell





4 hours ago, thrasher_565 said:

what mb do you have? cuse people have gotten like 4,3ish form a i7920... posably the more cores the lower the the speed you will get.

x58a ud3r

bloomfields usually clock 4-4.2ghz with ~1.35v

Link to comment
Share on other sites

Link to post
Share on other sites

6 hours ago, Somerandomtechyboi said:

welp i finally got a w3680 only to find the stupid thing not wanting to post at 3300 and walling around 3200 bios boot on 1 stick which is pretty depressing (vtt 1.6v)



tried lower multis and found that even 3000 at 215 bclk only half posts, then ditched the ram oc entirely only to find the stupid thing still half posts and gets stuck at code 52 whilst being at 215bclk and pcie at 120

so are you talking about ram speed? not cpu speed?

ram ocing on x58 was hard to do and on there site says you can do x ocing but most times you cant reach what it says how they got thows numbers dont no or its just marketing.

I have dyslexia plz be kind to me. dont like my post dont read it or respond thx

also i edit post alot because you no why...

Thrasher_565 hub links build logs

Corsair Lian Li Bykski Barrow thermaltake nzxt aquacomputer 5v argb pin out guide + argb info

5v device to 12v mb header

Odds and Sods Argb Rgb Links



Link to comment
Share on other sites

Link to post
Share on other sites

4 minutes ago, thrasher_565 said:

so are you talking about ram speed? not cpu speed?

ram ocing on x58 was hard to do and on there site says you can do x ocing but most times you cant reach what it says how they got thows numbers dont no or its just marketing.


ive already hit 3400 on a w3503 with vtt 1.94v so now im aiming for 3600+ with this w3680 if it wasnt being a pile of shit



probably got the original ratings from a binned cpu or something but only a few boards can do 1:1 uncore giga boards being among the few so i can run really high ram freq without hitting uncore freq limit



its actually pretty easy but it gets pretty annoying >3200

Link to comment
Share on other sites

Link to post
Share on other sites

32 minutes ago, Somerandomtechyboi said:


ive already hit 3400 on a w3503 with vtt 1.94v so now im aiming for 3600+ with this w3680 if it wasnt being a pile of shit



probably got the original ratings from a binned cpu or something but only a few boards can do 1:1 uncore giga boards being among the few so i can run really high ram freq without hitting uncore freq limit



its actually pretty easy but it gets pretty annoying >3200

what dose the cpu have to do with the ram speed? i thought the mb had more infuance on it? i dont no i really dont no about ocing just trying to understand.

I have dyslexia plz be kind to me. dont like my post dont read it or respond thx

also i edit post alot because you no why...

Thrasher_565 hub links build logs

Corsair Lian Li Bykski Barrow thermaltake nzxt aquacomputer 5v argb pin out guide + argb info

5v device to 12v mb header

Odds and Sods Argb Rgb Links



Link to comment
Share on other sites

Link to post
Share on other sites

1 hour ago, thrasher_565 said:

what dose the cpu have to do with the ram speed? i thought the mb had more infuance on it? i dont no i really dont no about ocing just trying to understand.

mobo had influence when the memory controller was still on the northbridge like on lga 775, now its only influence is the ram topology being able to handle the ram speed instead of also acting like the imc



cpu now has the imc since x58/1156 on intel so how fa you can ran oc is mostly dictated by the cpu



i was looking forward to clocking the rams past 3600 but now the stupid thing wont even bios boot much past 3200

Link to comment
Share on other sites

Link to post
Share on other sites

14 hours ago, Somerandomtechyboi said:

not interested in core clocks and i can only start properly ocing core once i get my cooler properly mounted cause gravity mount destroys cooling performance, though i guess i can run it at 4-4.2ghz and see how much vcore it needs as a reference to how good this thing actually is

What are you clocking then? Uncore? I believe that needs both vCore and the other voltages (that you've already raised) turned up. Keep RAM as low and slow as possible with auto or super loose timings, until you've got the CPU stable, then you start turning up RAM. X58 is a balancing act and trying to balance too many things at once will lead to a bunch of hard-to-troubleshoot instability.

Intel HEDT and Server platform enthusiasts: Intel HEDT Xeon/i7 Megathread



Main PC

CPU: i9 7980XE @4.5GHz/1.22v/-2 AVX offset

Cooler: EKWB Supremacy Block - custom loop w/360mm +280mm rads

Motherboard: EVGA X299 Dark

RAM:4x8GB HyperX Predator DDR4 @3200Mhz CL16

GPU: Nvidia FE 2060 Super/Corsair HydroX 2070 FE block

Storage:  1TB MP34 + 1TB 970 Evo + 500GB Atom30 + 250GB 960 Evo

Optical Drives: LG WH14NS40

PSU: EVGA 1600W T2

Case & Fans: Corsair 750D Airflow - 3x Noctua iPPC NF-F12 + 4x Noctua iPPC NF-A14 PWM

OS: Windows 11



Display: LG 27UK650-W (4K 60Hz IPS panel)

Mouse: EVGA X17

Keyboard: Corsair K55 RGB



Mobile/Work Devices: 2020 M1 MacBook Air (work computer) - iPhone 13 Pro Max - Apple Watch S3



Other Misc Devices: iPod Video (Gen 5.5E, 128GB SD card swap, running Rockbox), Nintendo Switch

Link to comment
Share on other sites

Link to post
Share on other sites

Just now, Zando_ said:

What are you clocking then? Uncore? I believe that needs both vCore and the other voltages (that you've already raised) turned up. Keep RAM as low and slow as possible with auto or super loose timings, until you've got the CPU stable, then you start turning up RAM. X58 is a balancing act and trying to balance too many things at once will lead to a bunch of hard-to-troubleshoot instability.

all my transcend pscs seem to have shelf died so ill see if i can revive a few with some cleaning, best stick does 3000+ with all ram timings on auto probably cause the board is optimized for psc, so running at 1300 ish auto should work without issue



ive also got some 8gb m393b2k70dh0 sticks aka 2rx4 ecc 2gbit d die so ill give those a test aswell, id be surprised if it even hits 3000 just because pcb is probbaly gonna be the limit



uncore is kept at 1:1 or around that, probably <4000 cause id rather not deal with uncore limit at 3:2



hwbot sub i saw for a 980x on air at 3500 ddr3 only needed 1.54v vtt on gdies so im staying around the 1.5-1.6v range but i may raise it higher if neccesary



usually i start with rams at 3000+ for a new chip since thats pretty much my binning process and most of the bloomfields should be able to atleast bios boot 3000 though there were some really trash w3503s that didnt even do 3000



might also be a good idea to find some references using giga x58 boards see if just copy pasting settings will get it to run 200+ bclk



and the cpus pads have been cleaned by scratching with a needle cause when i first got it the thing was stuck at 00 aka dead cpu + visible rust or filth on the pads i cant clean with just my fingernails or 99% IPA and after over half an hour i did get it to run just that the third channel is dead so yea might wanna buy a razor and do a better job cleaning the pads instead of using a stupid needle, so maybe thats the real cause but ill have to buy a razor to properly clean the pads and revive the 3rd channel, even if it stays the same atleast itll have a decent amount of resale value paired with one of my other giga x58 that i wanna sell then ill just go and buy a w3670

Link to comment
Share on other sites

Link to post
Share on other sites

@thrasher_565 @Zando_

found the issue regarding 3200 wall



apparently 3t command rate is broken so lowered 2t and now im suddenly doing 3300 on 2 sticks so ill just do abit of an oc session see if i hit my expected clocks or not



first will be 2 stick shenanigans, then 1 stick max freq, then 3 stick freq



bclk issue might even be from setting cmd3t so ill also retest that

Link to comment
Share on other sites

Link to post
Share on other sites

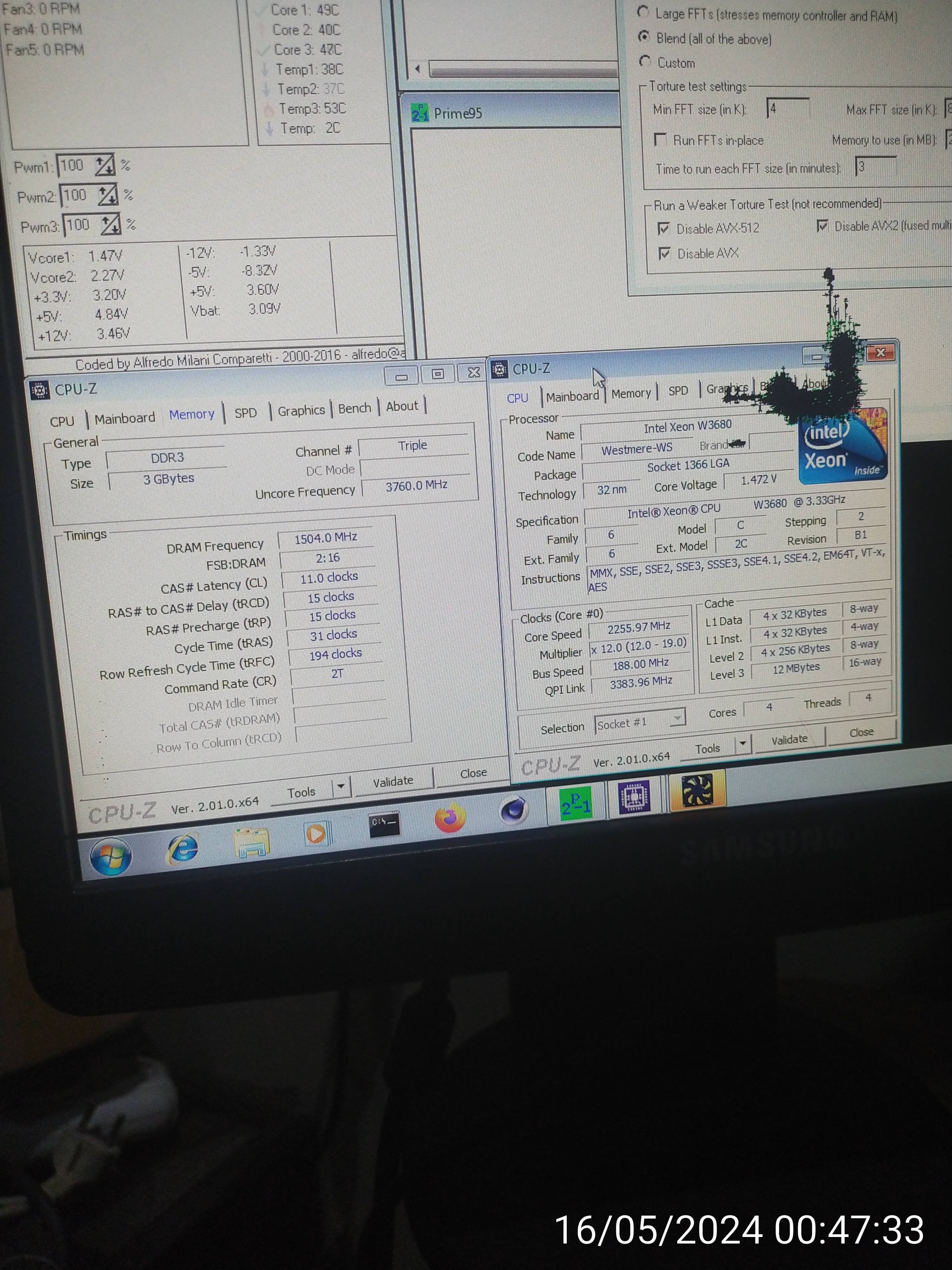

IMG_20240516_004740.thumb.jpg.ba458640fad0e08d8dbe5faf067788bf.jpgIMG_20240516_004733.thumb.jpg.437fbc4489913afbc6cdc862f5e6effd.jpg



3000 ddr3 posted to windows with uncore memclk 5:4, prime95 doesnt insta crash all threads so potentially able to run <3:2 ratio stabily, uncore at 20x mem multi at 16x



twin stick 3300 bios, seems like im still hitting bclk limit and also might need to bin sticks so yeah im gonna have to buy another xeon w and some more gdies



its getting really late so ill probably stop pretty soon



just need to verify <3:2 potentially being stable alongside trying to get the 18x multi working, maybe ill save this for tomorrow and ill do what i was supposed to do and help my friend with extracting files from his hdd cause his laptop broke



and yea seems like this board can run >2800 in the third channel just that bloomfields seem to wall at ~2800 on the 3rd channel, welp just means i wont need a replacement board, damn impressive for being a lower end x58 board

Link to comment
Share on other sites

Link to post
Share on other sites

2 hours ago, Somerandomtechyboi said:

apparently 3t command rate is broken so lowered 2t and now im suddenly doing 3300 on 2 sticks so ill just do abit of an oc session see if i hit my expected clocks or not

Makes sense, I didn't even know 3t was a thing. Always ran 2t. I believe 1t is better for performance, but it's very rare to get sticks that clock well with that, so it ends up being slower.

33 minutes ago, Somerandomtechyboi said:

3000 ddr3 posted to windows

Nice! That's already damn good for DDR3 on a regular board. IIRC a friend got some up to... 3200Mhz or higher I think, but that was on an LGA1150 ASRock XOC board with dedicated VRMs for the RAM DIMMs.

34 minutes ago, Somerandomtechyboi said:

seems like im still hitting bclk limit and also might need to bin sticks so yeah im gonna have to buy another xeon w and some more gdies

If it's a BCLK limit, how does a new CPU help that? BCLK should be the northbridge, not CPU. Speaking of which, have you tried cooling that? My EVGA Classified boards have massive heatsinks on the northbridge, the ASUS Rampage III Extreme had some pretty beefy cooling for it as well, so it seems they can get quite hot and cause instability. Waterblocks for these boards usually cover the northbridge as well, it gets rather toasty. If it doesn't have a fan already, worth pointing a 40 or 60mm one at it IMO.

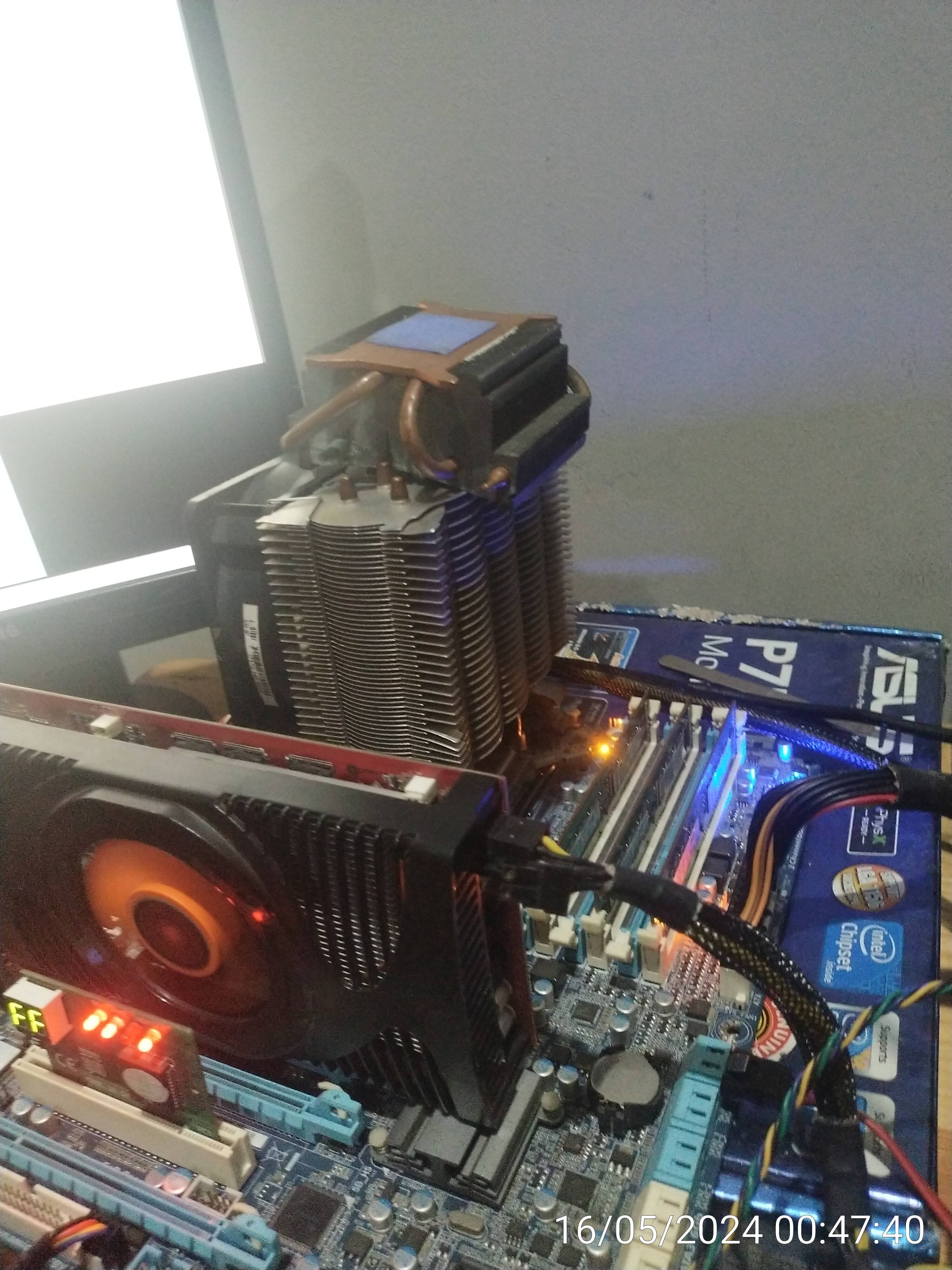

That's the heatsink EVGA slapped on the X58 Classified SLI 3-Way and 4-Way northbridge:
