COMPENSATOR Build for 3D Work and Video editing

Go to solution Solved by Electronics Wizardy,

CHeck out the puget systems articles. https://www.pugetsystems.com/labs/articles/amd-ryzen-threadripper-7000-content-creation-review/



5 minutes ago, Agall said:

Could always go full compensator and get the new Threadripper.



AMD Ryzen Threadripper 7960X 350W SP6 - 24-Core/48-Threads - 100-100001352WOF - Newegg.com



More cores, more memory controllers. Put all 4 of those DIMMs to good use.



Excluding the motherboard, the price is about double for double-ish, probably wouldn't be a hard sell to management given the platform.



AMD Ryzen Threadripper 7970X vs Intel Core i9-14900K Benchmark, comparison and differences (cpu-monkey.com)

I'd probalby avoid TR here as the 24 core is slower in premiere according to the puget system articles, and I don't see the point in paying a lot more for less or tabout the same performance.

Hey guys,



I wanted to get your input on the build I have planned out for my company's main video workstation. If you notice any strange shortcomings/problems in the pcpartpicker list, please do me a favor and provide some feedback.



I have a few questions in mind:

- Does Adobe Premiere Pro (my main editing suite atm) still prefer higher clock speed over more CPU cores?

- Should I opt for DDR5-6000 (192GB) or DDR5-8000 (96GB) options?

- I need max transfer speeds for the usb ports at the front of the case. Do you have any case recommendations?



I am no specialist when it comes to PC Builds, although I know some bits here and there.



Really appreciate your guys' input :-)



1. Budget & Location

I am from germany and planning to buy from mindfactory, since it's a german company as well. I am open for buying suggestions tho.



2. Aim

Heavy Video editing workflows (8k R3D files, 8k ProRes 422 files, stereoscopic editing, 360 stitching, Colour Grading and editing in Premiere Pro, After Effects, Davinci Resolve and occasional Mocha Pro tracking, h265 decoding)

3D-animation in Blender and (occasionally) SideFX Houdini



3. Monitors

Currently 2 monitors @4k60 each. Not planning to have higher Hertz numbers, since color accuracy is important for me. Might add a third display @4k60



4. Peripherals

Im good for peripherals atm.



5. Why are you upgrading?

Really hitting rock bottom with my 64GB Ram RTX2060 AMD Ryzen 9 3950x rn. Premiere pro can't play back at full res without stutter etc.



Budget (including currency):

Since it's a business spending, I'm pretty chill there. Shouldnt be above 6000€ tho.



Country:

Germany



Games, programs or workloads that it will be used for:

See AIM section



PCPartPicker List I thought was good:

https://de.pcpartpicker.com/list/49h4BL





Link to comment
Share on other sites

Link to post
Share on other sites

5 minutes ago, LucPhiFra said:

Hey guys,



I wanted to get your input on the build I have planned out for my company's main video workstation. If you notice any strange shortcomings/problems in the pcpartpicker list, please do me a favor and provide some feedback.



I have a few questions in mind:

- Does Adobe Premiere Pro (my main editing suite atm) still prefer higher clock speed over more CPU cores?

- Should I opt for DDR5-6000 (192GB) or DDR5-8000 (96GB) options?

- I need max transfer speeds for the usb ports at the front of the case. Do you have any case recommendations?



I am no specialist when it comes to PC Builds, although I know some bits here and there.



Really appreciate your guys' input 🙂



1. Budget & Location

I am from germany and planning to buy from mindfactory, since it's a german company as well. I am open for buying suggestions tho.



2. Aim

Heavy Video editing workflows (8k R3D files, 8k ProRes 422 files, stereoscopic editing, 360 stitching, Colour Grading and editing in Premiere Pro, After Effects, Davinci Resolve and occasional Mocha Pro tracking, h265 decoding)

3D-animation in Blender and (occasionally) SideFX Houdini



3. Monitors

Currently 2 monitors @4k60 each. Not planning to have higher Hertz numbers, since color accuracy is important for me. Might add a third display @4k60



4. Peripherals

Im good for peripherals atm.



5. Why are you upgrading?

Really hitting rock bottom with my 64GB Ram RTX2060 AMD Ryzen 9 3950x rn. Premiere pro can't play back at full res without stutter etc.



Budget (including currency):

Since it's a business spending, I'm pretty chill there. Shouldnt be above 6000€ tho.



Country:

Germany



Games, programs or workloads that it will be used for:

See AIM section



PCPartPicker List I thought was good:

https://de.pcpartpicker.com/list/49h4BL





Could always go full compensator and get the new Threadripper.



AMD Ryzen Threadripper 7960X 350W SP6 - 24-Core/48-Threads - 100-100001352WOF - Newegg.com



More cores, more memory controllers. Put all 4 of those DIMMs to good use.



Excluding the motherboard, the price is about double for double-ish, probably wouldn't be a hard sell to management given the platform.



AMD Ryzen Threadripper 7970X vs Intel Core i9-14900K Benchmark, comparison and differences (cpu-monkey.com)

Ryzen 7950x3D PBO +200MHz / -15mV curve CPPC in 'prefer cache'

RTX 4090 @133%/+230/+1000

Builder/Enthusiast/Overclocker since 2012  //  Professional since 2017

Link to comment
Share on other sites

Link to post
Share on other sites

6 minutes ago, Agall said:

Could always go full compensator and get the new Threadripper.



AMD Ryzen Threadripper 7960X 350W SP6 - 24-Core/48-Threads - 100-100001352WOF - Newegg.com



More cores, more memory controllers. Put all 4 of those DIMMs to good use.



Excluding the motherboard, the price is about double for double-ish, probably wouldn't be a hard sell to management given the platform.



AMD Ryzen Threadripper 7970X vs Intel Core i9-14900K Benchmark, comparison and differences (cpu-monkey.com)

Really helpful. Will most definitely look into that. Saw Linus' video about it, too.

Link to comment
Share on other sites

Link to post
Share on other sites

CHeck out the puget systems articles. https://www.pugetsystems.com/labs/articles/amd-ryzen-threadripper-7000-content-creation-review/



5 minutes ago, Agall said:

Could always go full compensator and get the new Threadripper.



AMD Ryzen Threadripper 7960X 350W SP6 - 24-Core/48-Threads - 100-100001352WOF - Newegg.com



More cores, more memory controllers. Put all 4 of those DIMMs to good use.



Excluding the motherboard, the price is about double for double-ish, probably wouldn't be a hard sell to management given the platform.



AMD Ryzen Threadripper 7970X vs Intel Core i9-14900K Benchmark, comparison and differences (cpu-monkey.com)

I'd probalby avoid TR here as the 24 core is slower in premiere according to the puget system articles, and I don't see the point in paying a lot more for less or tabout the same performance.

Link to comment
Share on other sites

Link to post
Share on other sites

9 minutes ago, LucPhiFra said:

Really helpful. Will most definitely look into that. Saw Linus' video about it, too.



9 minutes ago, Electronics Wizardy said:

CHeck out the puget systems articles. https://www.pugetsystems.com/labs/articles/amd-ryzen-threadripper-7000-content-creation-review/



I'd probalby avoid TR here as the 24 core is slower in premiere according to the puget system articles, and I don't see the point in paying a lot more for less or tabout the same performance.

Not saying the 14900k is a bad option here, definitely a good value for performance.



Another suggestion would be going with a W680 motherboard and potentially ECC memory, if it would be beneficial. Intel gatekeeps ECC behind their workstation chipsets like the W680.



ASUS Pro WS W680-ACE IPMI LGA 1700 ATX PRO WS W680-ACE IPMI B&H (bhphotovideo.com)

Just an example from a US retailer.

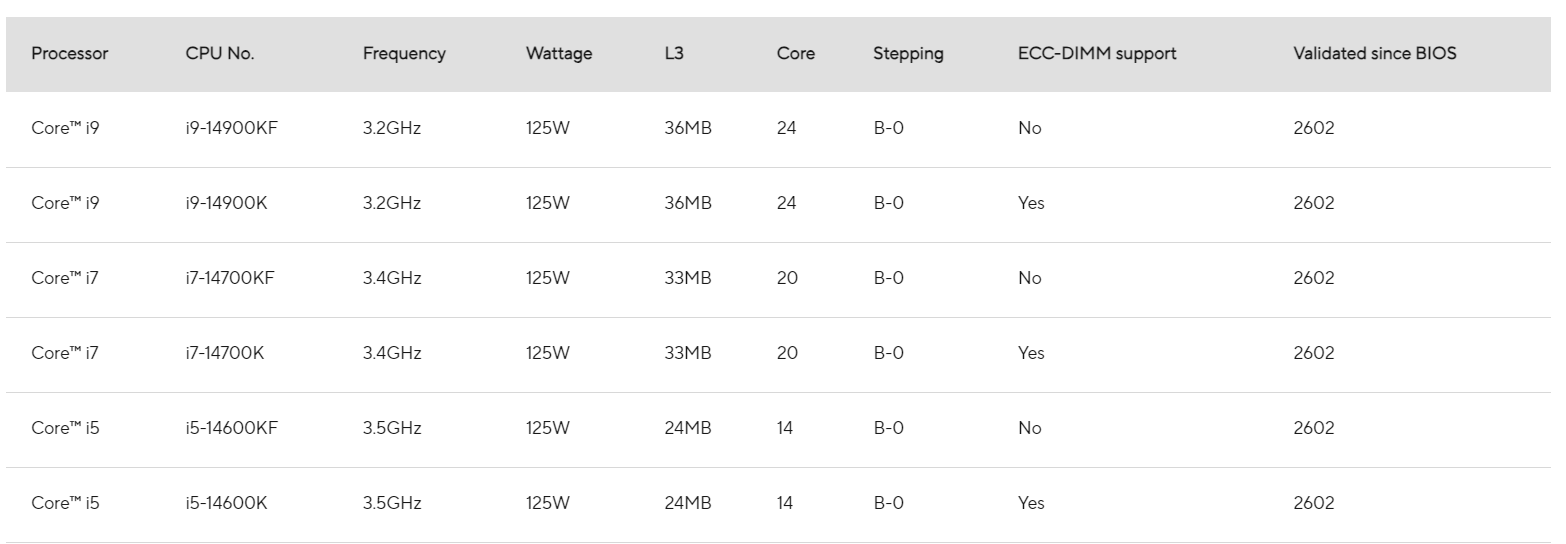

Really strange thing I just noticed, the KF SKU Intel CPUs don't support ECC?


Ryzen 7950x3D PBO +200MHz / -15mV curve CPPC in 'prefer cache'

RTX 4090 @133%/+230/+1000

Builder/Enthusiast/Overclocker since 2012  //  Professional since 2017

Link to comment
Share on other sites

Link to post
Share on other sites

9 minutes ago, Electronics Wizardy said:

CHeck out the puget systems articles. https://www.pugetsystems.com/labs/articles/amd-ryzen-threadripper-7000-content-creation-review/



I'd probalby avoid TR here as the 24 core is slower in premiere according to the puget system articles, and I don't see the point in paying a lot more for less or tabout the same performance.

The Puget tests are definitely what I needed. Thanks a lot man.

Link to comment
Share on other sites

Link to post
Share on other sites

2 hours ago, LucPhiFra said:

PCPartPicker List I thought was good:

https://de.pcpartpicker.com/list/49h4BL



I have some suggestions 🙂



PCPartPicker Part List

CPU: Intel Core i9-14900K 3.2 GHz 24-Core Processor  (€620.99 @ Mindfactory)
CPU Cooler: ARCTIC Liquid Freezer II 360 A-RGB 48.8 CFM Liquid CPU Cooler  (€107.90 @ Alza)
Motherboard: Asus ROG STRIX Z790-A GAMING WIFI II ATX LGA1700 Motherboard  (€433.90 @ Alza)
Memory: Corsair Vengeance 192 GB (4 x 48 GB) DDR5-5200 CL38 Memory  (€702.95 @ Amazon Deutschland)
Storage: Samsung 990 Pro 2 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive  (€161.90 @ Alza)
Video Card: MSI SUPRIM X GeForce RTX 4090 24 GB Video Card  (€2119.00 @ Galaxus)
Case: be quiet! Silent Base 802 ATX Mid Tower Case  (€166.89 @ Alternate)
Power Supply: SeaSonic FOCUS GX-1000 ATX 3.0 1000 W 80+ Gold Certified Fully Modular ATX Power Supply  (€173.89 @ Galaxus)
Total: €4487.42
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2023-12-01 20:57 CET+0100

80+ ratings certify electrical efficiency. Not quality.
