Someone tag the connectors !!(sos)(Fast please)

[DreamZzip]

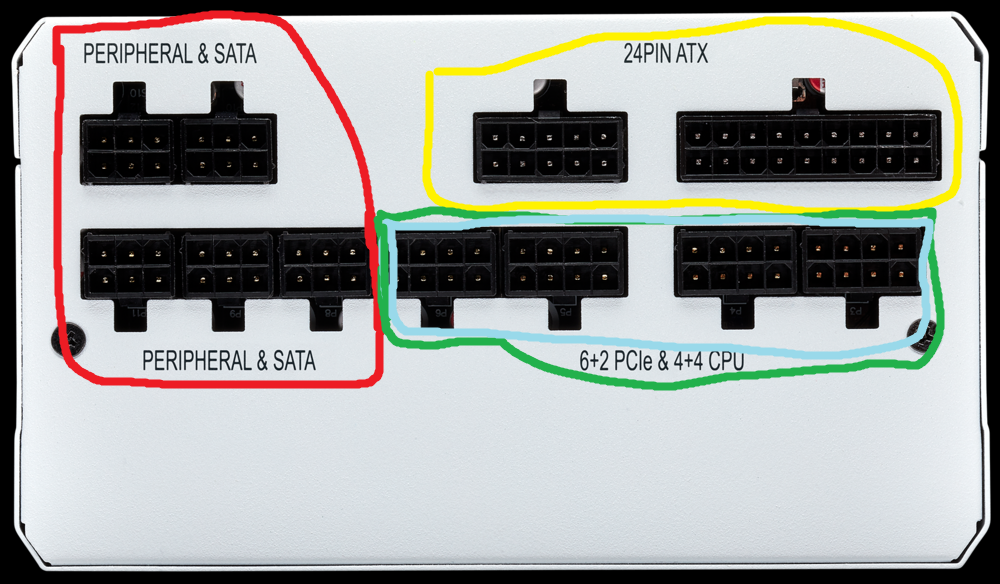

can someone tag all these connectors like this :



red =Sata

blue= PERIPHERAL

yellow=24 pin ATX

green= 6+2 PCIe (ITs for gpu right?)

cyan=4+4  cpu

and the othet in upper mid ,what is it?



please FAST

[minibois]

To clarify, peripheral/molex connection is also plugged into the RED one.

The yellow one is 24 pin, the cable just detaches into two pieces on the PSU side:



The EPS/PCIE cables (CPU power, on the top left of the motherboard and GPU power respectively) plug into the cyan/green labeled connectors on the bottom right.

Generally, just grab the bundle of cables, grab what you need and just check where it plugs in. As you can see, they all have a distinct size (3x2, 4x2, 5x2 and 10x2) so you can't do it wrong really



(By the way, I guessed this is an RM750X, so I just grabbed a screenshot from that manual. Even if it is another Corsair PSU, this screenshot will  still be applicable).

[OrionFOTL]

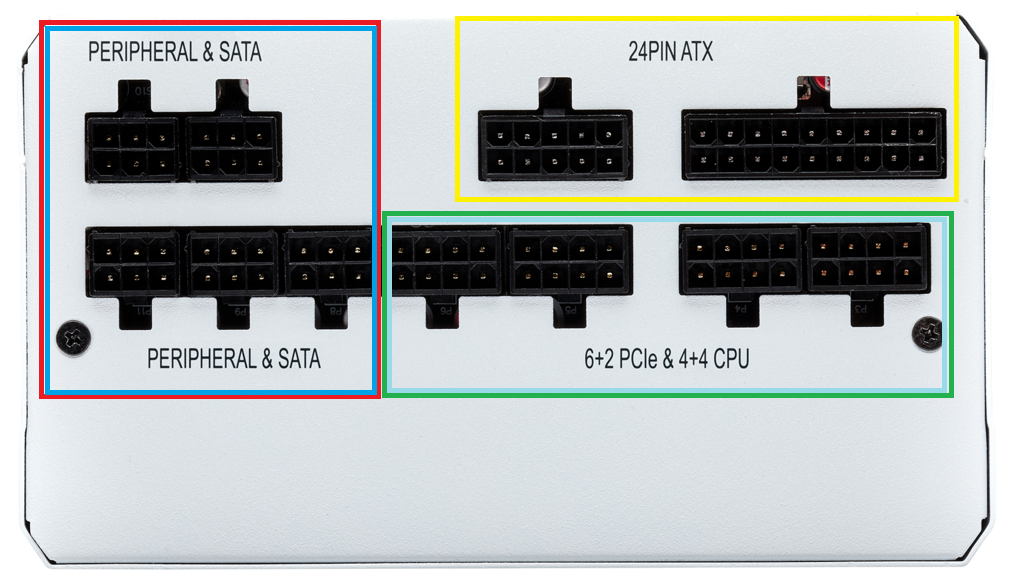

Um, those connectors are literally labelled with text over/under them. The color guide you're asking for is as straightforward as it can be:



[DreamZzip]

8 minutes ago, minibois said:















To clarify, peripheral/molex connection is also plugged into the RED one.

The yellow one is 24 pin, the cable just detaches into two pieces on the PSU side:









The EPS/PCIE cables (CPU power, on the top left of the motherboard and GPU power respectively) plug into the cyan/green labeled connectors on the bottom right.

Generally, just grab the bundle of cables, grab what you need and just check where it plugs in. As you can see, they all have a distinct size (3x2, 4x2, 5x2 and 10x2) so you can't do it wrong really



(By the way, I guessed this is an RM750X, so I just grabbed a screenshot from that manual. Even if it is another Corsair PSU, this screenshot will  still be applicable).

yea u right with the rmx

[DreamZzip]

8 minutes ago, OrionFOTL said:

Um, those connectors are literally labelled with text over/under them. The color guide you're asking for is as straightforward as it can be:













yea there a labeld but not like exaxtly
