360 rad on 200mm fans?

SpencerTEN
 Share
Posted

I'm currently using a Cooler Master H500 case which has front support for up to a 360mm radiator, but I don't feel like replacing the 200MM fans. what preformance detriments, if any, are there to using the 200mm fans over triple 120?
and yes I am aware of the lack of static pressure in 200mm fans.

Link to comment
https://linustechtips.com/topic/1121409-360-rad-on-200mm-fans/
Share on other sites
Link to post
Share on other sites
Posted

Mounting would be one issue. Along with no shroud to even produce any static pressure.



Do it and try. Or get a rad that fits the fans.

Main RIg Lian Li O11 MINI, I7 9900k, ASUS ROG Maximus XI Hero, G.Skill Ripjaws 3600 32GB, 3090FE, EVGA 1000G5, Acer Nitro XZ3 2560 x 1440@240hz



Spare RIg Lian Li O11 AIR MINI, I7 4790K, Asus Maximus VI Extreme, G.Skill Ares 2400 32Gb, EVGA 1080ti, 1080sc 1070sc & 1060 SSC, EVGA 850GA, Acer KG251Q 1920x1080@240hz



Link to comment
https://linustechtips.com/topic/1121409-360-rad-on-200mm-fans/#findComment-13028670
Share on other sites
Link to post
Share on other sites
Posted

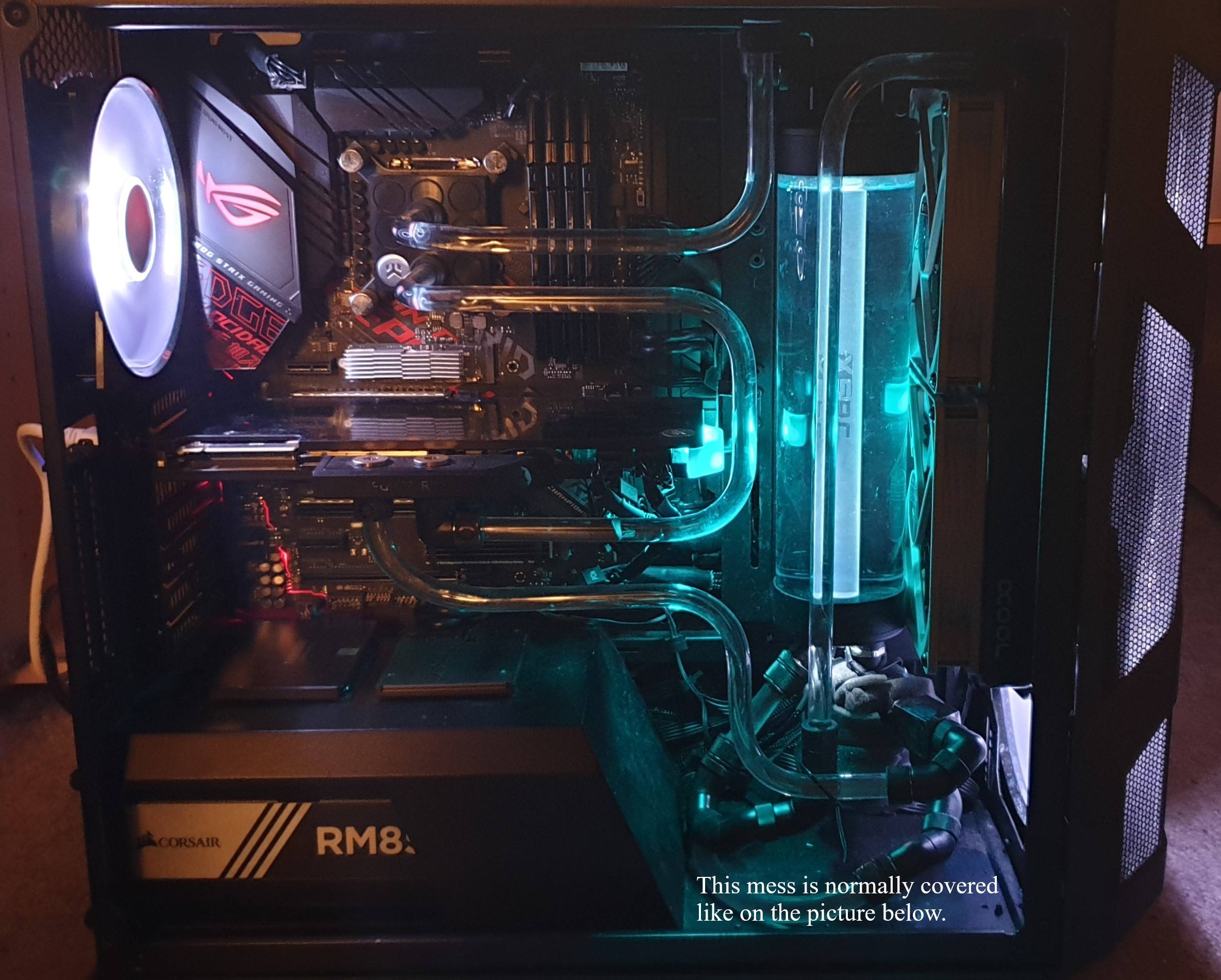

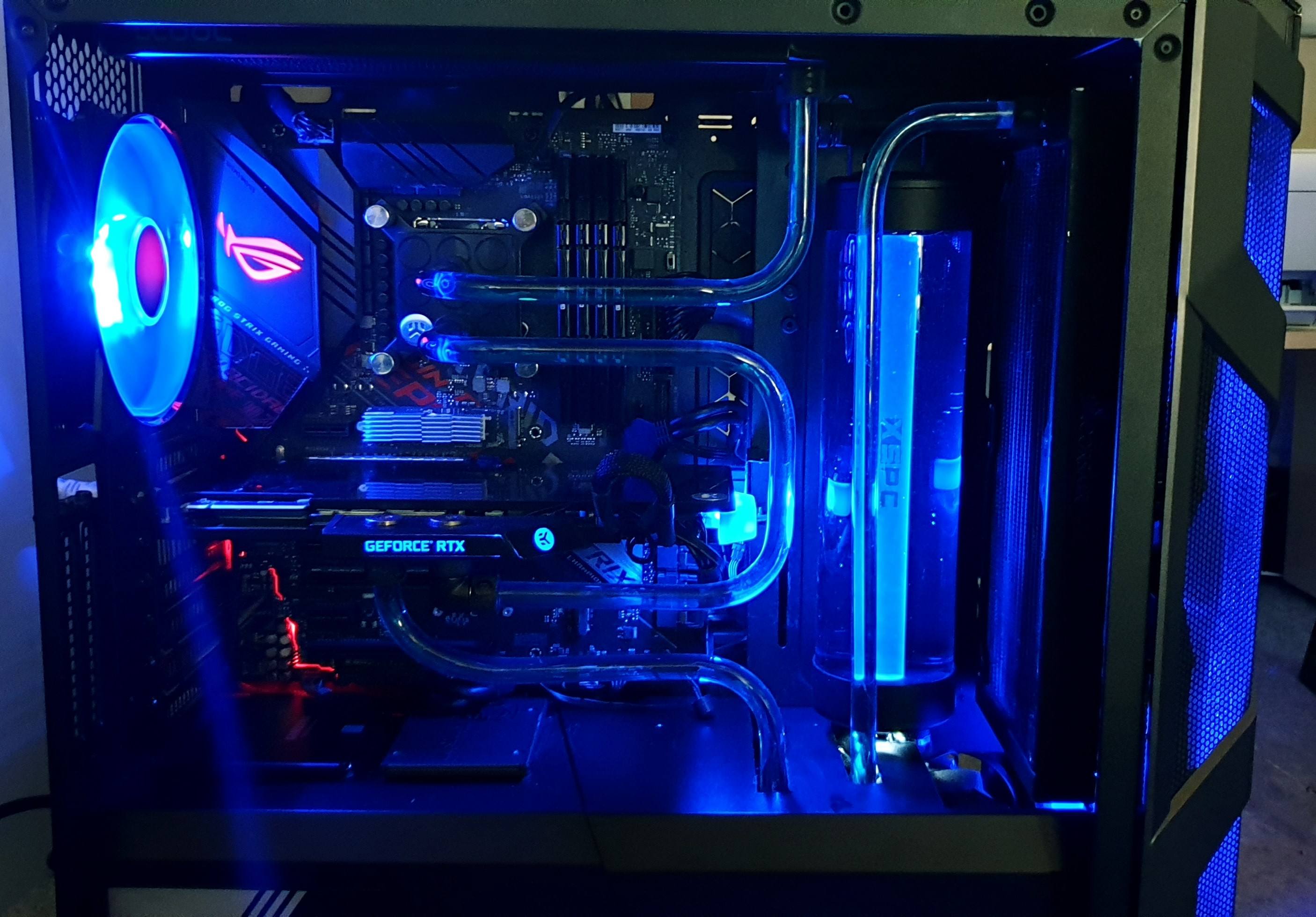

You could just mount the fans on the inside of the case.

Then you can keep the 200m fans on the front. I did that with my 280 and it works great.

At first I tried it with only the 200mm fans and it wasn't good. Barely okay. I wouldn't recommend it.

I am using 2 280mm rads in series, running 1 with CPU fans and the other with GPU fans, so no matter whats under load, the water will be cooled.









Link to comment
https://linustechtips.com/topic/1121409-360-rad-on-200mm-fans/#findComment-13031082
Share on other sites
Link to post
Share on other sites
Posted

Unless you make a custom shroud, 200mm's perform pretty badly on non-200mm rads. https://www.gamersnexus.net/guides/3084-cooler-master-h500p-radiator-placement-guide

Even with a custom shroud, it's still suboptimal compared to properly sized fans.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/1121409-360-rad-on-200mm-fans/#findComment-13036986
Share on other sites
Link to post
Share on other sites
