What should I upgrade or add?

Noob Builder
By Noob Builder
in New Builds and Planning
 Share
Posted
  • Both Monitors: Dell S2716DG @165Hz
  • CPU: Intel i7-9700k @4.6Ghz
  • Motherboard: GIGABYTE Z390 AORUS PRO
  • Ram: 32GB of DDR4 2400Mhz
  • Heatsink: Noctua NH-D15
  • GPU: EVGA GeForce 1080ti FTW3 Gaming Edition
  • Storage: 1TB Samsung 860 Evo SSD
  • Power Supply: EVGA 1000W Gold Edition (Ik ik why is the power supply 1000W)
Link to comment
https://linustechtips.com/topic/1120841-what-should-i-upgrade-or-add/
Share on other sites
Link to post
Share on other sites
Posted

Why only 2400MHz ram from day 1? Try overclock that and see how far it will go

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted
1 minute ago, Noob Builder said:

My name says it all, I bought the ram and enabled the XMP Profiles and it only goes up to 2400Mhz.

what is it rated for then?

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted
1 minute ago, Noob Builder said:

It is rated for 2400Mhz, without XMP enabled it only goes to 2133Mhz

2400 CL17?

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted
2 minutes ago, Noob Builder said:

https://www.newegg.com/g-skill-32gb-288-pin-ddr4-sdram/p/N82E16820232299

I got these

Those say 3200.



Nvm saw your previous reply.

CPU: AMD Ryzen 5 2600X  |  Cooler: Cryorig H7  |  Motherboard: MSI B450 Mortar  |  Case: Fractal Design Meshify C Mini  |  RAM: 32GB DDR4 3000MHz  |  GPU: EVGA 1070ti Gaming (Kraken G12 Watercooled) |  PSU: Corsair TXM650  |  Storage: Samsung 860 EVO 500GB + WD Blue M.2 500GB  |  Network Card: Asus PCE-AC56  |  Monitor: Acer Nitro VG270U  |  Audio: Sennheiser HD6XX + Schiit Fulla 2



Laptop:

Lenovo s540:  CPU: AMD Ryzen 5 3500U  |  RAM: 8GB DDR4 2666MHz  |  GPU: AMD Radeon Vega 8  |  Storage: 256GB NVME SSD





Link to post
Share on other sites
Posted
8 minutes ago, Noob Builder said:

https://www.newegg.com/g-skill-32gb-288-pin-ddr4-sdram/p/N82E16820231967

Wrong link, this is the right one.

you could set the memory voltage to 1.4V, keep XMP enabled, and set the frequency to 3200MHz. See if that works or not.

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted

Doesn't really seem like you need an upgrade any time soon... Maybe upgrade your graphics card if you want ray tracing. Or your ssd if you want more storage.

CPU: Ryzen 5 5600x  | GPU: GTX 1070 FE | RAM: TridentZ 16GB 3200MHz | Motherboard: Gigabyte B450 Aorus M | PSU: EVGA 650 B3 | STORAGE: Boot drive: Crucial MX500 1TB, Secondary drive: WD Blue 1TB hdd | CASE: Phanteks P350x | OS: Windows 10 | Monitor: Main: ASUS VP249QGR 144Hz, Secondary: Dell E2014h 1600x900

Link to post
Share on other sites
Posted
54 minutes ago, Noob Builder said:

It did not work, I got a boot error.

Try 1.45V? If that still doesn't work, drop to 2933MHz and retry 1.4V and 1.45V

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted
3 minutes ago, Noob Builder said:

I was able to get it to 2933MHz at 1.4V, are there any stability tests I should do?

use CPU-Z. go to memory tab and check the timings first.

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted
8 minutes ago, Noob Builder said:

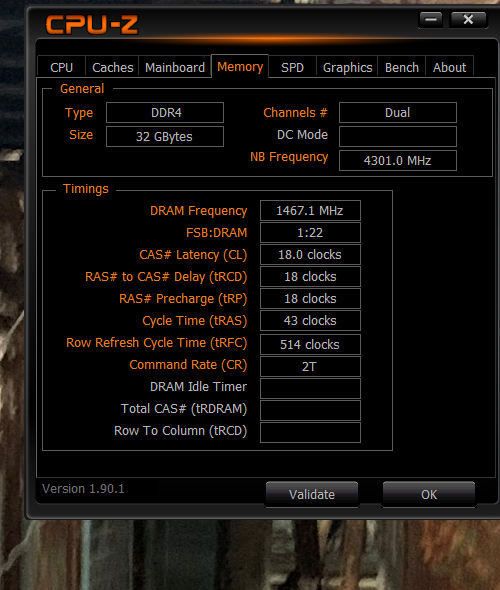

I attached what CPU-Z said

Does changing CAS latency (CL) to 16 still work at both voltages? If it doesnt just leave it at 18, already an improvement over stock.

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
Posted
  • Author
2 minutes ago, Jurrunio said:

Does changing CAS latency (CL) to 16 still work at both voltages? If it doesnt just leave it at 18, already an improvement over stock.

Do I go into the bios to change the CL? If so under what tab would it be?

Link to post
Share on other sites
Posted
1 minute ago, Noob Builder said:

Do I go into the bios to change the CL? If so under what tab would it be?

Yes

should be right under where you enabled XMP profile and changed the memory frequency

CPU: i7-2600K 4751MHz 1.44V (software) --> 1.47V at the back of the socket Motherboard: Asrock Z77 Extreme4 (BCLK: 103.3MHz) CPU Cooler: Noctua NH-D15 RAM: Adata XPG 2x8GB DDR3 (XMP: 2133MHz 10-11-11-30 CR2, custom: 2203MHz 10-11-10-26 CR1 tRFC:230 tREFI:14000) GPU: Asus GTX 1070 Dual (Super Jetstream vbios, +70(2025-2088MHz)/+400(8.8Gbps)) SSD: Samsung 840 Pro 256GB (main boot drive), Transcend SSD370 128GB PSU: Seasonic X-660 80+ Gold Case: Antec P110 Silent, 5 intakes 1 exhaust Monitor: AOC G2460PF 1080p 144Hz (150Hz max w/ DP, 121Hz max w/ HDMI) TN panel Keyboard: Logitech G610 Orion (Cherry MX Blue) with SteelSeries Apex M260 keycaps Mouse: BenQ Zowie FK1



Model: HP Omen 17 17-an110ca CPU: i7-8750H (0.125V core & cache, 50mV SA undervolt) GPU: GTX 1060 6GB Mobile (+80/+450, 1650MHz~1750MHz 0.78V~0.85V) RAM: 8+8GB DDR4-2400 18-17-17-39 2T Storage: HP EX920 1TB PCIe x4 M.2 SSD + Crucial MX500 1TB 2.5" SATA SSD, 128GB Toshiba PCIe x2 M.2 SSD (KBG30ZMV128G) gone cooking externally, 1TB Seagate 7200RPM 2.5" HDD (ST1000LM049-2GH172) left outside Monitor: 1080p 126Hz IPS G-sync



Desktop benching:

Cinebench R15 Single thread:168 Multi-thread: 833

SuperPi (v1.5 from Techpowerup, PI value output) 16K: 0.100s 1M: 8.255s 32M: 7m 45.93s

Link to post
Share on other sites
