Windows Boot Manager is on wrong hard drive.

Go to solution Solved by Palden,

Yep, Windows portions off a 100MB partition in your drive for the MBR and what I had to do was create a 100MB partition on my new drive and use command prompt off the Windows USB to transfer the files using some commands (bcdboot if I remember correctly). After that, make sure you set the partition with your new windows install as the active partition and you should be good!

I need some help here because I'm totally confused right now. My Windows 10 is installed on 240SSD that was bough for this purpose. Yet Windows boot manager is somehow located on secondary HDD that I want to throw out because its old and dying.

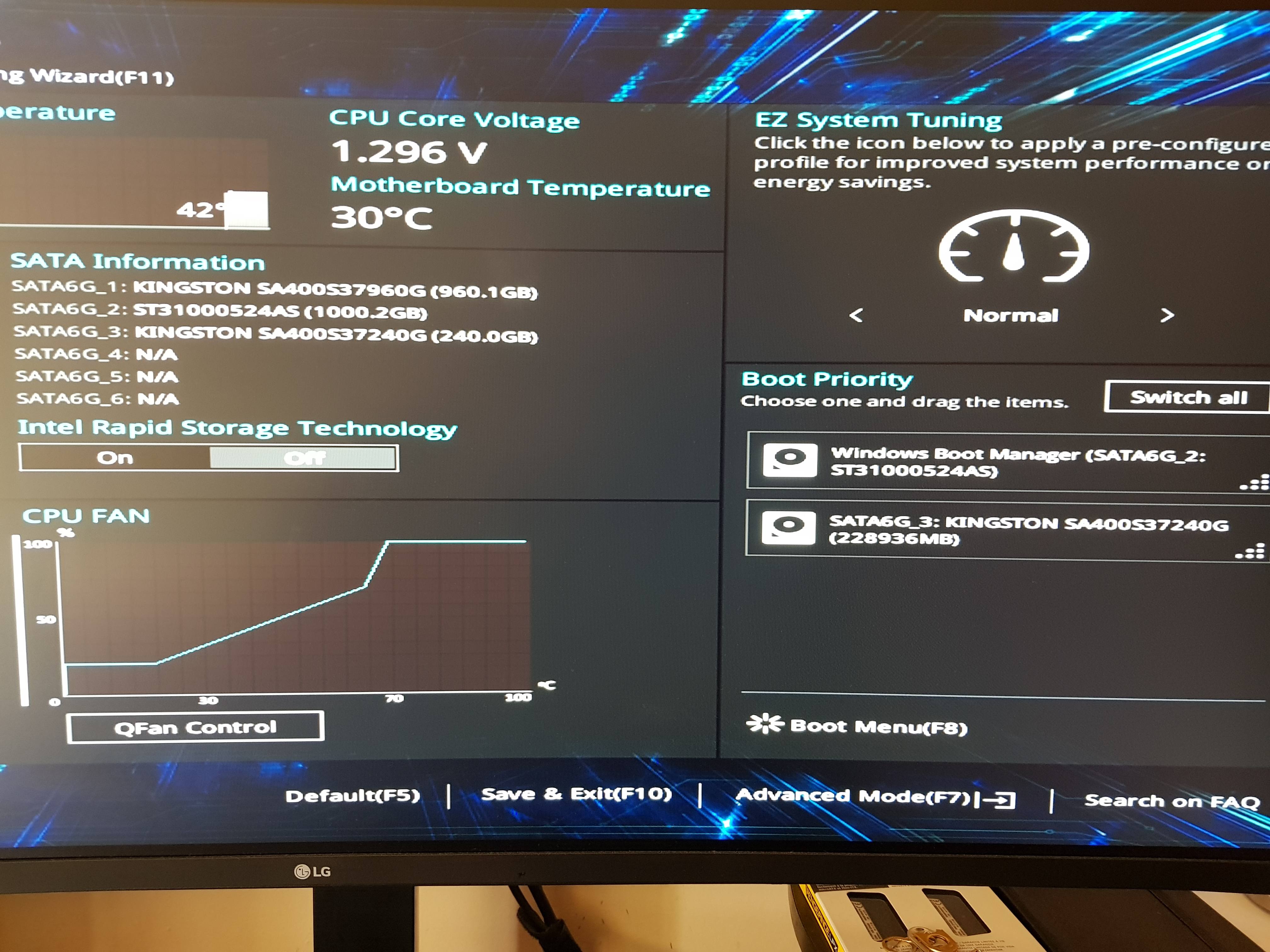

There are no folders on that HDD that are visible in Windows. But in Bios it says otherwise.  So when I remove HDD, Windows boot manager disappears and I cannot load into windows even though Bios sees SSD that has Win 10 on it. How can I move that partition onto my main C drive so I can get rid on old HDD without having to re-install windows.



I'm literally in a middle of an open hearth surgery here with drive hanging outside PC case with 2 wires. So any help is appreciated.


Main system: Ryzen 7 7800X3D / Asus TUF Gaming B650-Plus / G.Skill Trident Z5 NEO 32GB 6000Mhz / Zotac RTX 5090 SOLID OC/ x2 WD_BLACK NS770 2TBs/ Corsair HX1000i/ NZXT H5 Flow

Link to comment
https://linustechtips.com/topic/1114604-windows-boot-manager-is-on-wrong-hard-drive/
Share on other sites

Link to post
Share on other sites

Yep, Windows portions off a 100MB partition in your drive for the MBR and what I had to do was create a 100MB partition on my new drive and use command prompt off the Windows USB to transfer the files using some commands (bcdboot if I remember correctly). After that, make sure you set the partition with your new windows install as the active partition and you should be good!

Link to post
Share on other sites

8 minutes ago, Palden said:

Yep, Windows portions off a 100MB partition in your drive for the MBR and what I had to do was create a 100MB partition on my new drive and use command prompt off the Windows USB to transfer the files using some commands (bcdboot if I remember correctly). After that, make sure you set the partition with your new windows install as the active partition and you should be good!

Thanks. That helped.

Main system: Ryzen 7 7800X3D / Asus TUF Gaming B650-Plus / G.Skill Trident Z5 NEO 32GB 6000Mhz / Zotac RTX 5090 SOLID OC/ x2 WD_BLACK NS770 2TBs/ Corsair HX1000i/ NZXT H5 Flow

Link to post
Share on other sites

That's why I always recommend to disconnect all drives from a system except the one you want to install to before starting a windows install, it's happened to me several times before that it chooses to put the boot stuff on another random drive if it's got any to choose from.

F@H
Desktop: i9-13900K, ASUS Z790-E, 64GB DDR5-6000 CL36, RTX3080, 2TB MP600 Pro XT, 2TB SX8200Pro, 2x16TB Ironwolf RAID0, Corsair HX1200, Antec Vortex 360 AIO, Thermaltake Versa H25 TG, Samsung 4K curved 49" TV, 23" secondary, Mountain Everest Max

Mobile SFF rig: i9-9900K, Noctua NH-L9i, Asrock Z390 Phantom ITX-AC, 32GB, GTX1070, 2x1TB SX8200Pro RAID0, 2x5TB 2.5" HDD RAID0, Athena 500W Flex (Noctua fan), Custom 4.7l 3D printed case



Asus Zenbook UM325UA, Ryzen 7 5700u, 16GB, 1TB, OLED



GPD Win 2
