Laptop Screen Repair/Upgrade

KingTdiGGiTTy
 Share
Posted

I have a 2017 HP Omen 15t. https://support.hp.com/us-en/product/omen-by-hp-15-ax200-laptop-pc-series/13810162/model/17320032/manuals

HP-Compaq OMEN 15-AX250WM

I think the screen was bent somehow. Whenever the screen is bumped it freaks out.

I found a replacement on this site and I think that it would work and I could do it. https://www.laptopscreen.com/English/model/HP-Compaq/OMEN~15-AX250WM/

I also found it on HP Parts Store buts its over $200



But, I want to upgrade the display if that is possible and I don't know what my options are. I doubt than every 15.6",  30 pin panel could work, but I don't know what other specs to check

Link to comment
https://linustechtips.com/topic/1113761-laptop-screen-repairupgrade/
Share on other sites
Link to post
Share on other sites
Posted

your issue might be flex cable. Can you take picture of the screen during it craps out?

mY sYsTeM iS Not pErfoRmInG aS gOOd As I sAW oN yOuTuBe. WhA t IS a GoOd FaN CuRVe??!!? wHat aRe tEh GoOd OvERclok SeTTinGS FoR My CaRd??  HoW CaN I foRcE my GpU to uSe 1o0%? BuT WiLL i HaVE Bo0tllEnEcKs? RyZEN dOeS NoT peRfORm BetTer wItH HiGhER sPEED RaM!!! dId i WiN teH SiLiCON LotTerrY? yOu ShoUlD dEsHrOuD uR GPU. my SYstEm iS UNDerPerforMiNg iN WarzONE. can mY Pc Run WiNdOwS 11 ?? woUld BaKInG MY GRaPHics card fIX it? MultimETeR TeSTiNG!! aMd'S GpU DrIvErS aRe as goOD aS NviDia's YOU SHoUlD oVERCloCk yOUR ramS To 5000C18

Link to post
Share on other sites
Posted
1 minute ago, KingTdiGGiTTy said:

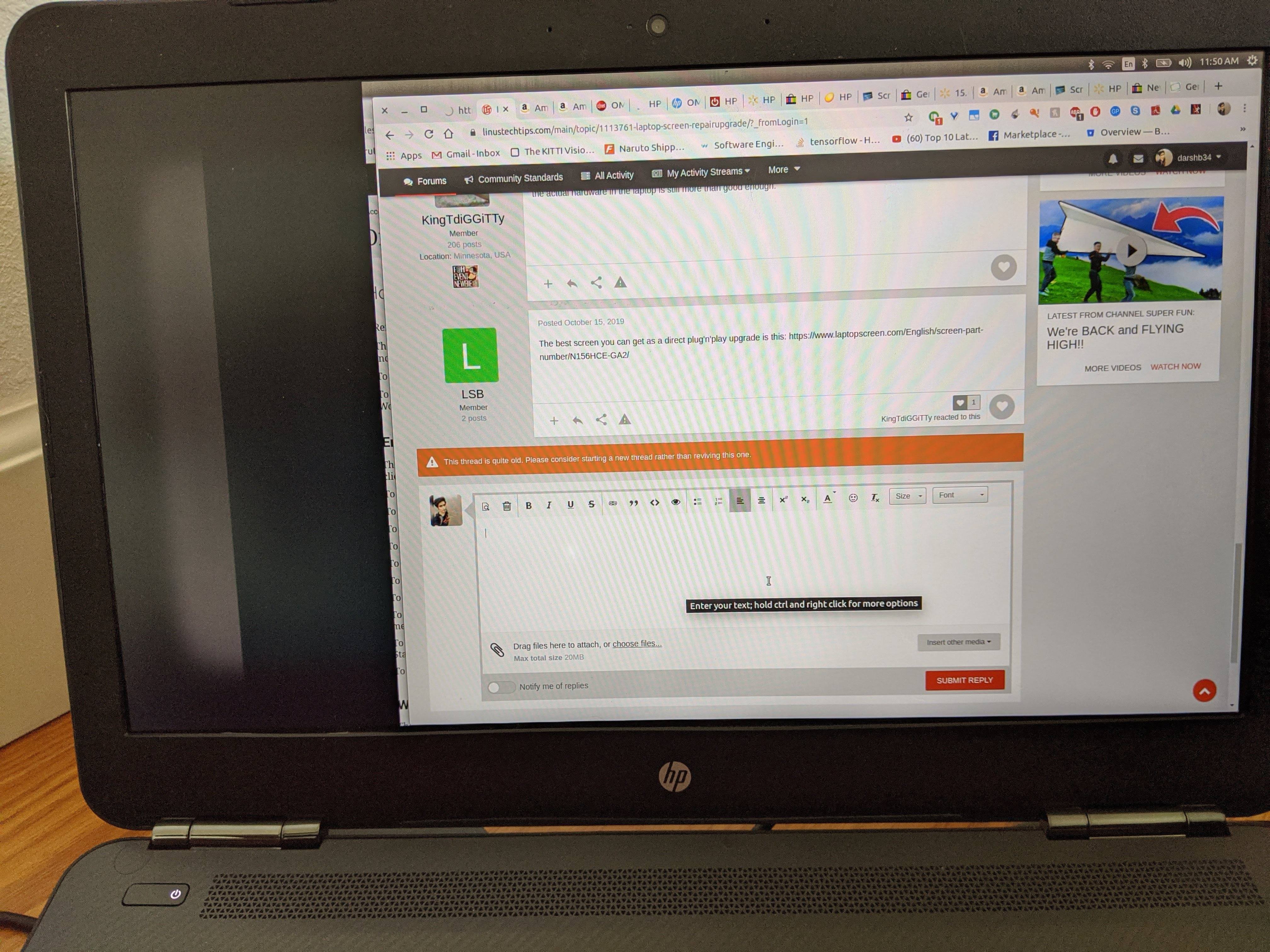

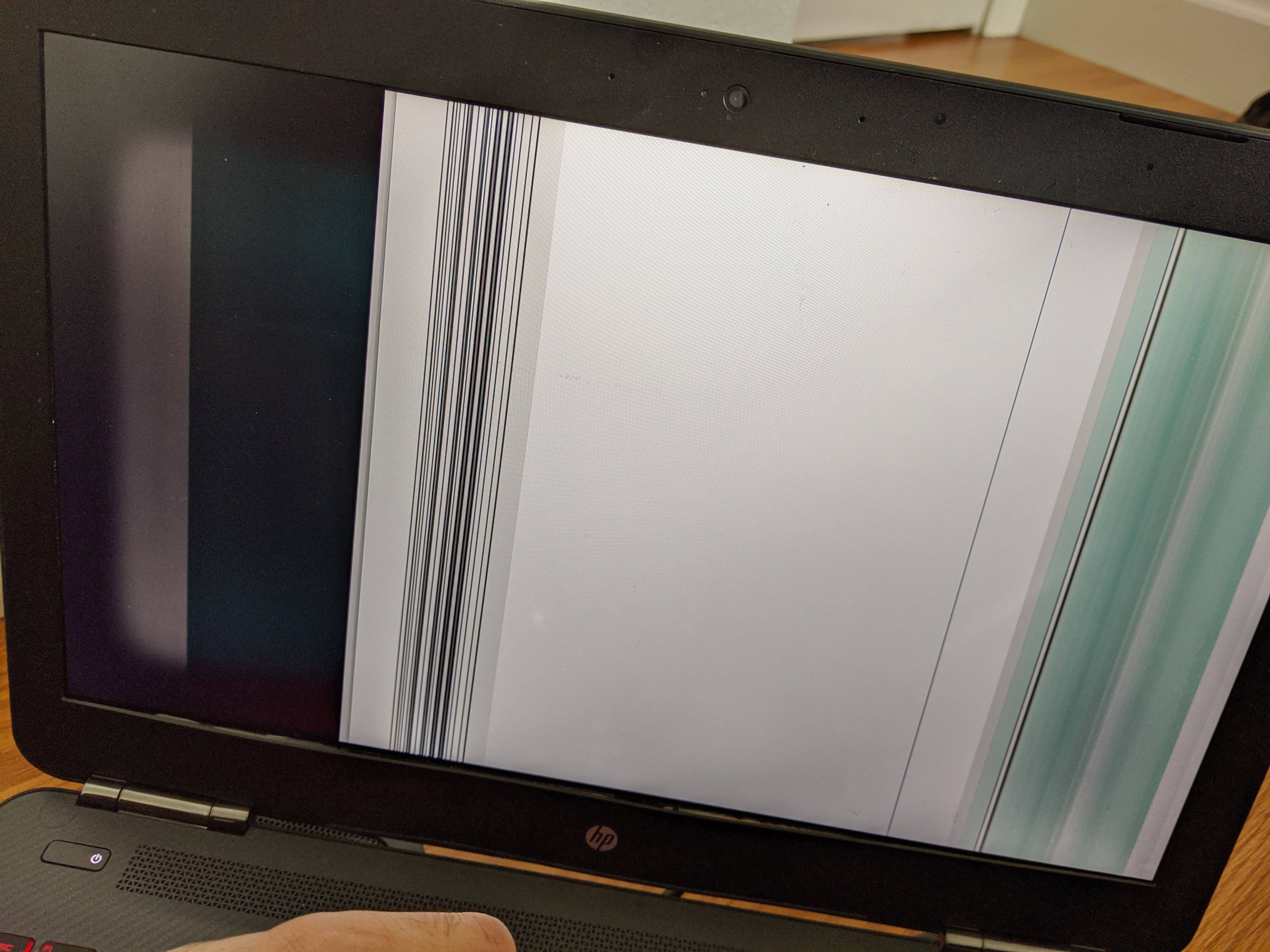

Becuase of camera syncing things It is quit representative



Considering artifacts happen on vertical axis, I would get a new flex cable just to be safe. I am just not sure if this is just a panel issue, I am curios on what others think.

mY sYsTeM iS Not pErfoRmInG aS gOOd As I sAW oN yOuTuBe. WhA t IS a GoOd FaN CuRVe??!!? wHat aRe tEh GoOd OvERclok SeTTinGS FoR My CaRd??  HoW CaN I foRcE my GpU to uSe 1o0%? BuT WiLL i HaVE Bo0tllEnEcKs? RyZEN dOeS NoT peRfORm BetTer wItH HiGhER sPEED RaM!!! dId i WiN teH SiLiCON LotTerrY? yOu ShoUlD dEsHrOuD uR GPU. my SYstEm iS UNDerPerforMiNg iN WarzONE. can mY Pc Run WiNdOwS 11 ?? woUld BaKInG MY GRaPHics card fIX it? MultimETeR TeSTiNG!! aMd'S GpU DrIvErS aRe as goOD aS NviDia's YOU SHoUlD oVERCloCk yOUR ramS To 5000C18

Link to post
Share on other sites
Posted
  • Author
28 minutes ago, Levent said:

your issue might be flex cable. Can you take picture of the screen during it craps out?

If the issue is the cable I think I can get some off Ali-express for like a buck.

It's worth it if that's the issue

https://www.aliexpress.com/item/32853717617.html?spm=a2g0o.productlist.0.0.692b50c4IzkN8h&algo_pvid=8c1186d1-9ea4-4e8b-b029-1b1897734316&algo_expid=8c1186d1-9ea4-4e8b-b029-1b1897734316-10&btsid=ff15bcbf-6abf-48aa-9e78-ac5c8c5d1f03&ws_ab_test=searchweb0_0,searchweb201602_1,searchweb201603_52

Link to post
Share on other sites
Posted
  • Author

Each time I leave the display sitting steady the flickering and color issues slowly disappear, however my display still has some pressure marks and markes from the keyboard rubbing off the anti-glare, that could warrant an eventual display upgrade as the actual hardware in the laptop is still more than good enough.

Link to post
Share on other sites
  • 4 months later...
Posted
On 10/14/2019 at 11:37 AM, KingTdiGGiTTy said:

I have a 2017 HP Omen 15t. https://support.hp.com/us-en/product/omen-by-hp-15-ax200-laptop-pc-series/13810162/model/17320032/manuals

HP-Compaq OMEN 15-AX250WM

I think the screen was bent somehow. Whenever the screen is bumped it freaks out.

I found a replacement on this site and I think that it would work and I could do it. https://www.laptopscreen.com/English/model/HP-Compaq/OMEN~15-AX250WM/

I also found it on HP Parts Store buts its over $200



But, I want to upgrade the display if that is possible and I don't know what my options are. I doubt than every 15.6",  30 pin panel could work, but I don't know what other specs to check

Any news on how it went man i have same issue but it turns off and on so i been using external display. Seems common for this laptop. Got the 120hertz upgrade coming. Also sometimes internal display works if i move it its black, i might have a cable issue too.

Link to post
Share on other sites
Posted
9 hours ago, Yoelq said:

My replacement screen is coming in 3 days ill let you know if no one else replies

Thanks. I have a feeling it is the screen's internal strip. THE black tape strip which says do not touch. So I may have to change the screen as well. Hope all goes well and I will wait for your result. Thanks

Link to post
Share on other sites
Posted
12 hours ago, darshb34 said:

Thanks. I have a feeling it is the screen's internal strip. THE black tape strip which says do not touch. So I may have to change the screen as well. Hope all goes well and I will wait for your result. Thanks

https://www.laptopscreen.com/English/model/HP-Compaq/OMEN%2015-AX250WM/

It was 60 plus shipping total to 80 bucks. with IPS 120 hertz upgrade and everything  else like lifetime warranty  I got glossy to try it out should be coming in a couple days. They also sent me an email to get a reduced 20 dollars if i make a video on how to replace it.

Heres the manual http://h10032.www1.hp.com/ctg/Manual/c05357609

On youtube you can find videos where they just take off the screen panel and some where they disconnect the battery.

And your right it could be that as well its coming by either today or Thursday.

you can also find the same monitor on amazon for 71 dollars total with 120 hertz but its a tn monitor and its matte and no wide viewing angle also 2 year warranty https://www.amazon.com/SCREENARAMA-Replacement-15-AX250WM-1920x1080-Upgrade/dp/B07XGC85Z5/ref=sr_1_1?keywords=AX250WM+screen&qid=1582106157&sr=8-1 you also get the tools but its not grade A like laptopscreens dot com.

Also i recommend you connect an external display with hdmi its what i have been using with the laptop.

 By pressing f5 two times then enter you can project to the other screen. Also sometimes both work when i duplicate them.



Link to post
Share on other sites
Posted
  • Author

I have been using mine with the issue. I was able to make it work intermittently by applying pressure and taping things. My display has the issue in the exact same spot, the way yours does. Its gotten worse as time goes on. I am interested to see how this goes.

Link to post
Share on other sites
Posted

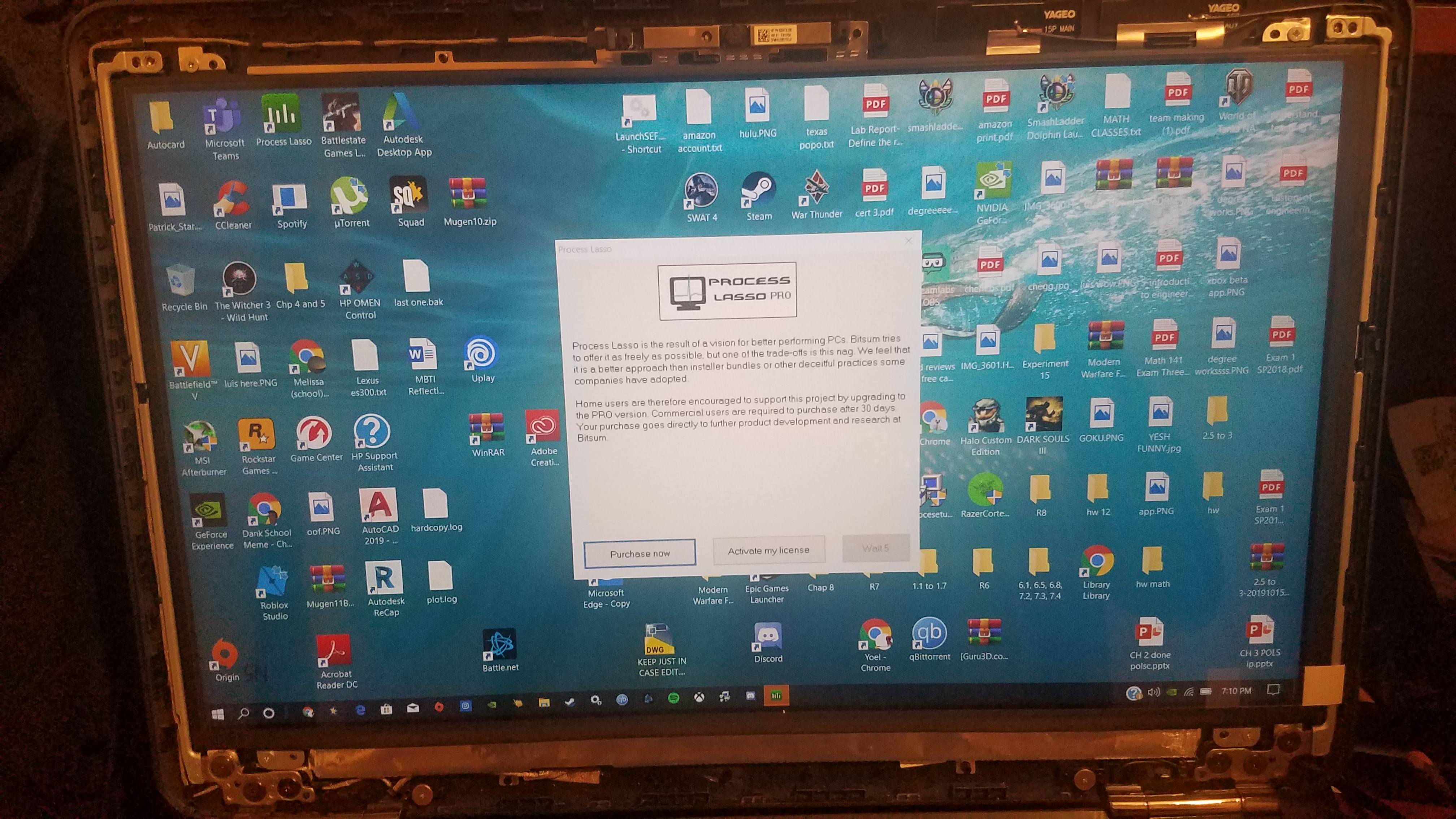

Hey I replaced my display and it worked

This is the 120 hertz version i got on laptop screens

My display cable looked fine so i didnt replace it.

I had lines like yall and sometimes the display would work but its working perfectly after replacing

And yes i need to clean my desktop lmao

Also ill he getting a 20 dollar refund if i create a video on how to replace the display so it would be 60 bucks total for me.


Link to post
Share on other sites
  • 2 weeks later...
