Hi Everyone.



I was wondering if i could get a little more info.



I currently have a Ryzen 5 2600 with a Antec  Mercury 240 AIO.

I just bought the limited Noctua NH-D15 Chromax LTT on Amazon as iv always loved noctua but never the colour, so when i saw the all black i jumped at it.



My question is, does anyone know how they perform on a Ryzen CPU compared to a 240mm AIO.



i have found a few videos related to intel but no AMD so im just curious.

Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/
Share on other sites
Link to post
Share on other sites
Posted
7 minutes ago, StephenHolts said:

Hi Everyone.



I was wondering if i could get a little more info.



I currently have a Ryzen 5 2600 with a Antec  Mercury 240 AIO.

I just bought the limited Noctua NH-D15 Chromax LTT on Amazon as iv always loved noctua but never the colour, so when i saw the all black i jumped at it.



My question is, does anyone know how they perform on a Ryzen CPU compared to a 240mm AIO.



i have found a few videos related to intel but no AMD so im just curious.

It’ll be included in the box how to mount it (instructions). It’s fairly straight forward to be honest.



MSI B450 Pro Gaming Pro Carbon AC | AMD Ryzen 2700x  | NZXT  Kraken X52  | MSI GeForce RTX2070 Armour | Corsair Vengeance LPX 32GB (4*8) 3200MhZ | Samsung 970 evo M.2nvme 500GB Boot  / Samsung 860 evo 500GB SSD | Corsair RM550X (2018) | Fractal Design Meshify C white | Logitech G pro Wireless | Gigabyte Aurus AD27QD

Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12956544
Share on other sites
Link to post
Share on other sites
Posted
6 minutes ago, StephenHolts said:

My question is, does anyone know how they perform on a Ryzen CPU compared to a 240mm AIO

AFAIK they perform on par or even slightly better.

Intel content should be informing as well even if you are using amd, as it's just a comparison of two coolers cooling a heatsource, and it really doesnt matter much what heatsource that is.

My Rig / Buildlogs:  ❄️ SNOWFLAKE ❄️ FROSTBITE ❄️

CPU: Ryzen 5 3600   Cooler: Corsair H115i Platinum   RAM: Corsair Vengence RGB Pro 16GB @3200   Mobo: Asus Prime X470 Pro

Graphics Card: Gigabyte Aorus 2080super Waterforce    Case: Corsair 500D   PSU: Corsair HX850i

Storage: 500GB Crucial P1 NVMe SSD, 1TB Crucial P1 NVMe SSD, 2x 1TB SATA SSD

Displays: AOC CQ32G1 32" 2560x1440, Acer XB280HK 28.0" 3840x2160 60 Hz, Medion MD20850 24" 2560x1440





Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12956546
Share on other sites
Link to post
Share on other sites
Posted
4 minutes ago, LauriHimself said:

AFAIK they perform on par or even slightly better.

Intel content should be informing as well even if you are using amd, as it's just a comparison of two coolers cooling a heatsource, and it really doesnt matter much what heatsource that is.

Lol I read mount not perform ?



MSI B450 Pro Gaming Pro Carbon AC | AMD Ryzen 2700x  | NZXT  Kraken X52  | MSI GeForce RTX2070 Armour | Corsair Vengeance LPX 32GB (4*8) 3200MhZ | Samsung 970 evo M.2nvme 500GB Boot  / Samsung 860 evo 500GB SSD | Corsair RM550X (2018) | Fractal Design Meshify C white | Logitech G pro Wireless | Gigabyte Aurus AD27QD

Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12956553
Share on other sites
Link to post
Share on other sites
Posted
2 minutes ago, Stormseeker9 said:

Lol I read mount not perform ?

happens to the best of us XD

My Rig / Buildlogs:  ❄️ SNOWFLAKE ❄️ FROSTBITE ❄️

CPU: Ryzen 5 3600   Cooler: Corsair H115i Platinum   RAM: Corsair Vengence RGB Pro 16GB @3200   Mobo: Asus Prime X470 Pro

Graphics Card: Gigabyte Aorus 2080super Waterforce    Case: Corsair 500D   PSU: Corsair HX850i

Storage: 500GB Crucial P1 NVMe SSD, 1TB Crucial P1 NVMe SSD, 2x 1TB SATA SSD

Displays: AOC CQ32G1 32" 2560x1440, Acer XB280HK 28.0" 3840x2160 60 Hz, Medion MD20850 24" 2560x1440





Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12956555
Share on other sites
Link to post
Share on other sites
Posted

D15 is probably better than whatever 240 you got

I spent $2500 on building my PC and all i do with it is play no games atm & watch anime at 1080p(finally) watch YT and write essays...  nothing, it just sits there collecting dust...

Builds:

The Toaster Project! Northern Bee!



The original LAN PC build log! (Old, dead and replaced by The Toaster Project & 5.0)

Spoiler

"Here is some advice that might have gotten lost somewhere along the way in your life.



#1. Treat others as you would like to be treated.

#2. It's best to keep your mouth shut; and appear to be stupid, rather than open it and remove all doubt.

#3. There is nothing "wrong" with being wrong. Learning from a mistake can be more valuable than not making one in the first place.



Follow these simple rules in life, and I promise you, things magically get easier. " - MageTank 31-10-2016





Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12956629
Share on other sites
Link to post
Share on other sites
Posted
5 hours ago, StephenHolts said:

Hi Everyone.



I was wondering if i could get a little more info.



I currently have a Ryzen 5 2600 with a Antec  Mercury 240 AIO.

I just bought the limited Noctua NH-D15 Chromax LTT on Amazon as iv always loved noctua but never the colour, so when i saw the all black i jumped at it.



My question is, does anyone know how they perform on a Ryzen CPU compared to a 240mm AIO.



i have found a few videos related to intel but no AMD so im just curious.

it should handily beat the 240mm AIO's ,, so long as u have good case aiflow.



The only AIO's that can pull ahead of top end Aircooler Kings like the D15, are 360mm AIO's.

CPU: Intel i7 3930k w/OC & EK Supremacy EVO Block | Motherboard: Asus P9x79 Pro  | RAM: G.Skill 4x4 1866 CL9 | PSU: Seasonic Platinum 1000w Corsair RM 750w Gold (2021)|

VDU: Panasonic 42" Plasma | GPU: Gigabyte 1080ti Gaming OC & Barrow Block (RIP)...GTX 980ti | Sound: Asus Xonar D2X - Z5500 -FiiO X3K DAP/DAC - ATH-M50S | Case: Phantek Enthoo Primo White |

Storage: Samsung 850 Pro 1TB SSD + WD Blue 1TB SSD | Cooling: XSPC D5 Photon 270 Res & Pump | 2x XSPC AX240 White Rads | NexXxos Monsta 80x240 Rad P/P | NF-A12x25 fans |

Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12957080
Share on other sites
Link to post
Share on other sites
Posted

They're similar in performance circumstances can heavily favor one over the other depending on fan speeds, where the rad is mounted, and system airflow.

If you ever need help with a build, read the following before posting: http://linustechtips.com/main/topic/3061-build-plan-thread-recommendations-please-read-before-posting/
Also, make sure to quote a post or tag a member when replying or else they won't get a notification that you replied to them.

Link to comment
https://linustechtips.com/topic/1112390-noctua-nh-d15-chromax/#findComment-12957708
Share on other sites
Link to post
Share on other sites
Posted
On 10/10/2019 at 5:28 AM, StephenHolts said:

Hi Everyone.



I was wondering if i could get a little more info.



I currently have a Ryzen 5 2600 with a Antec  Mercury 240 AIO.

I just bought the limited Noctua NH-D15 Chromax LTT on Amazon as iv always loved noctua but never the colour, so when i saw the all black i jumped at it.



My question is, does anyone know how they perform on a Ryzen CPU compared to a 240mm AIO.



i have found a few videos related to intel but no AMD so im just curious.



*** EDIT ***

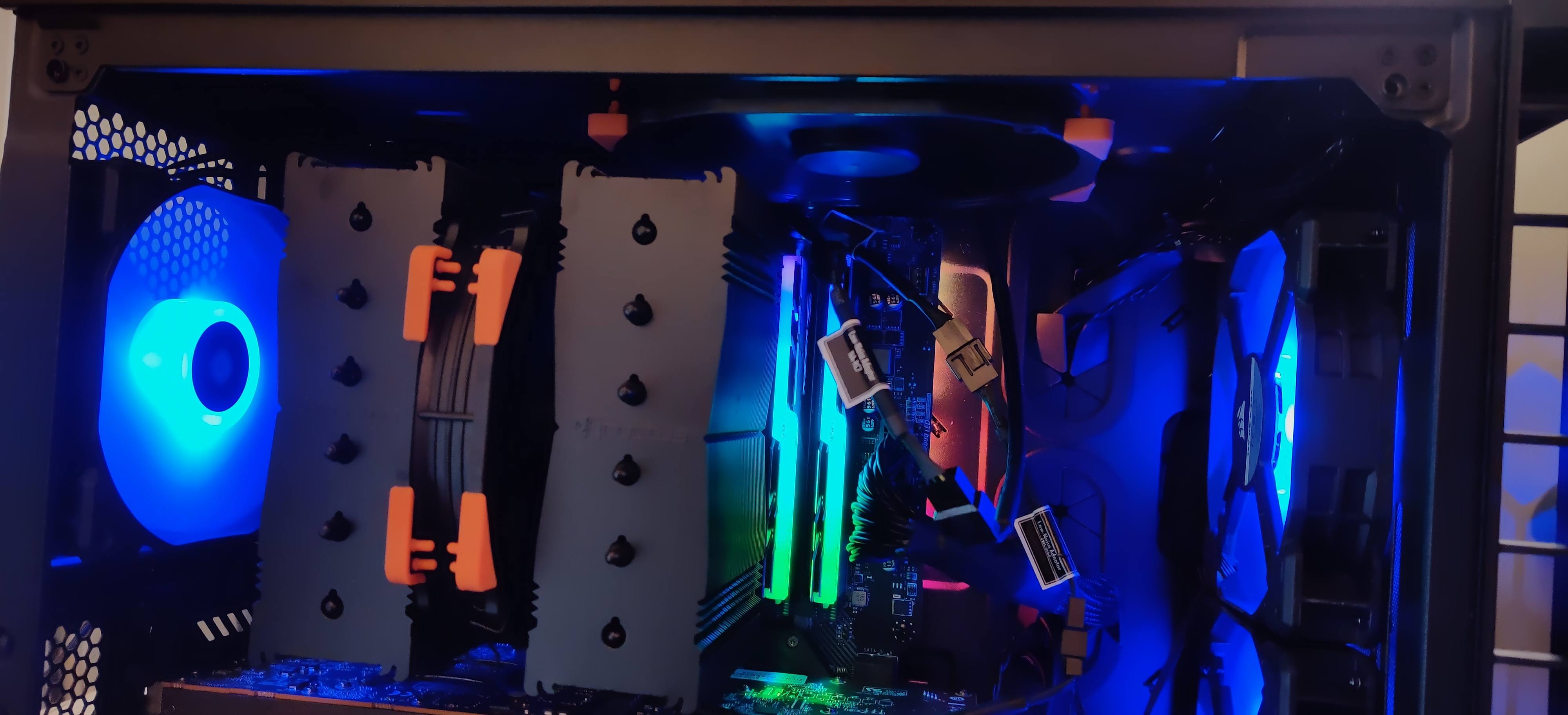

Just finished my install. I was only able to use the center fan directly. I installed the second one in the ceiling blowing on the other half of the tower and the RAM. These numbers are with a 4.4 GHz overclock at 1.36 volts.



Pre-install Idle Temp: 36.0 C

Post-install Idle Temp: 30.0 C, decrease of 6 C.



Pre-install Max Temp: 95.6 C (during Cinebench R20 Max Load)

Post-Install Max Temp: 70.0 C



Just bought myself 25.6 C of thermal headroom, with only one fan directly on the heatsink. Just need a bit of cable management, and It's done.






*** END EDIT ***

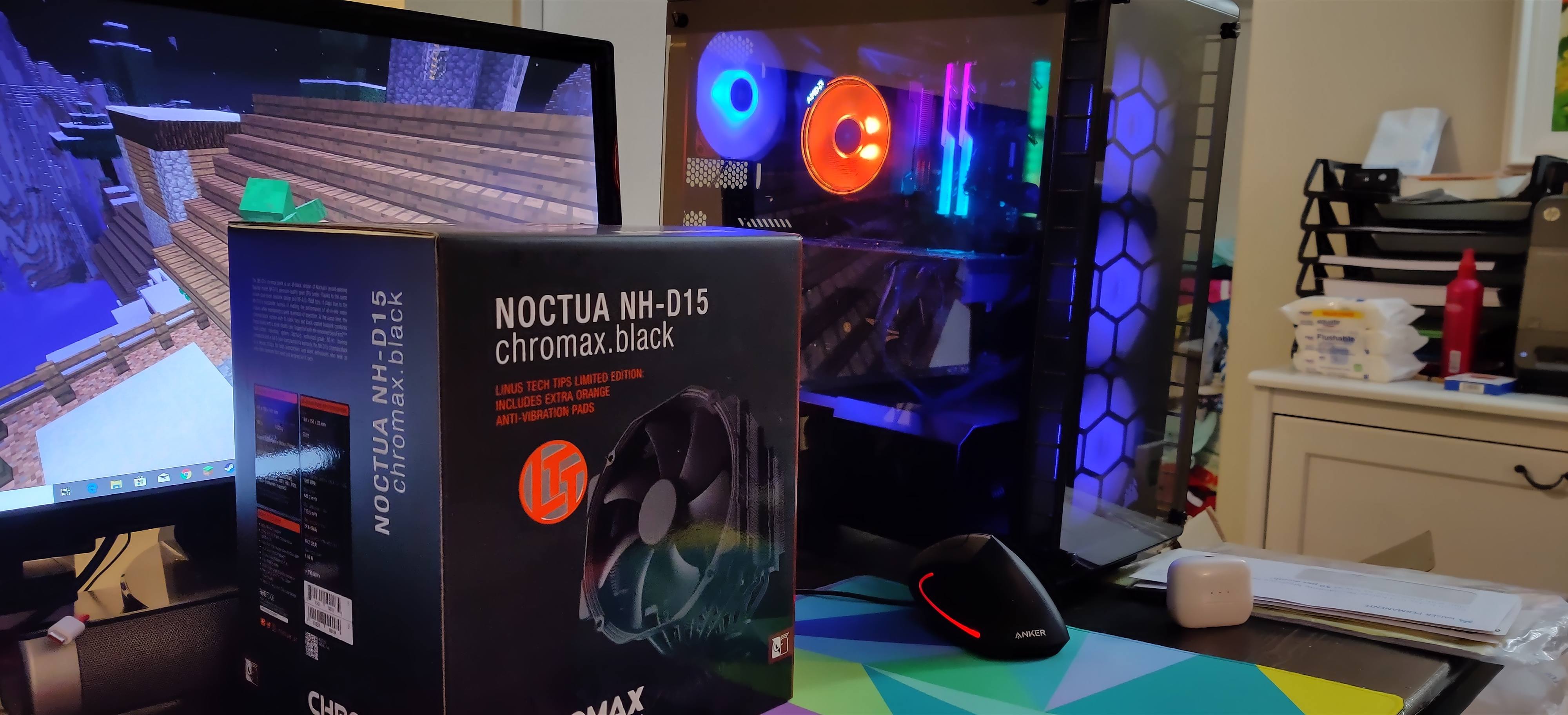

I hated the design of the stock Noctua fans... could have dealt with a raw metal cooler, but not the fans. I just got my NH-D15 chromax.black LTT Edition today. Couldn't pass it up for the price and new design aesthetic. I am putting it on my Ryzen 7 3800X system. With the stock wraith prism cooler, I hit 92 C in Cinebench R20 (all core overclock at 4.4 GHz, and 1.36 V). I will post again here when I've installed it and let you know how the temps do as well as whether I can get any more OC out of it.


MY RIG: Corsair Crystal Series 460X Case | MSI MPG Gaming Edge Wifi X570 Board | AMD Ryzen 7 3800X | LTT Edition Noctua NH-D15 chromax.black (with attached low-noise adapters) | G.Skill Trident Z Neo 3600 MHz CL18 RAM | Asrock Radeon RX 5700 8GB (XT VBIOS Flashed) | Crucial MX500 SATA III 500GB SSD | Corsair HD750 80+ Platinum 750 PSU | 4x Corsair SP120 Case Fans | ASUS VE 247H 24" Full HD Monitor | Logitech K345 Keyboard | Anker A7851 Vertical Mouse | Elegiant Sounbar 288929 | https://pcpartpicker.com/user/jeremygd/saved/gnXBZL
