ITX Saphire RX 570? is there any performance difference?

[Muhammad Osama]

Hey guyz

Sorry for my bad english



I just wanted a quick answer about saphire pulse itx rx 570 4gb.. i am buying it for 95$.. i just wanted to know that is there a big performance difference between a normal dual fan rx 570 and an itx single fan rx 570.. for what i read i think the rx 570 is not that hot card.. i know dual fan will help in overclocking but still  is there a big difference?

[Jurrunio]

At stock the difference will be within 5% (different stock clocks). Of course you're paying with noise levels.

[mariushm]

It probably has a lower maximum power budget in the bios and slightly lower gpu and memory frequencies by default.



Standard 2 fan version : https://www.techpowerup.com/vgabios/191558/sapphire-rx570-4096-170306

single fan version : https://www.techpowerup.com/vgabios/202527/sapphire-rx570-4096-180105

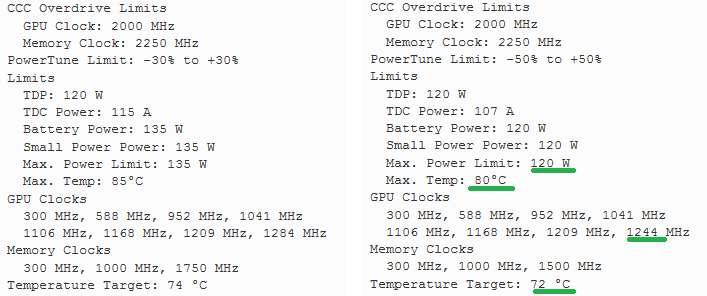

differences highlighted below

Basically the 2 fan version can go at higher temperature because the 2 fans push more air than single fan and they can react faster and cool card if the temperature goes above 85c faster. You get a big higher frequencies on gpu and memory - the memory you can probably safely overclock back to 1750 mhz (i don't think they use lower grade memory chips on the itx version) and the gpu frequency probably also can go regular but you'll get a slightly more noisy video card.

Also you see the 2 fan card has a 135w max budget vs 120w budget for the other, so less overclocking potential in theory.





[Muhammad Osama]

1 hour ago, mariushm said:

It probably has a lower maximum power budget in the bios and slightly lower gpu and memory frequencies by default.



Standard 2 fan version : https://www.techpowerup.com/vgabios/191558/sapphire-rx570-4096-170306

single fan version : https://www.techpowerup.com/vgabios/202527/sapphire-rx570-4096-180105

differences highlighted below

Basically the 2 fan version can go at higher temperature because the 2 fans push more air than single fan and they can react faster and cool card if the temperature goes above 85c faster. You get a big higher frequencies on gpu and memory - the memory you can probably safely overclock back to 1750 mhz (i don't think they use lower grade memory chips on the itx version) and the gpu frequency probably also can go regular but you'll get a slightly more noisy video card.

Also you see the 2 fan card has a 135w max budget vs 120w budget for the other, so less overclocking potential in theory.





So In theroy i am not getting a huge performance difference?right? It is basically same
