XBOX ONE S MOTHERBOARD WEIRDNESS?

Kobain-hine47
 Share
Posted

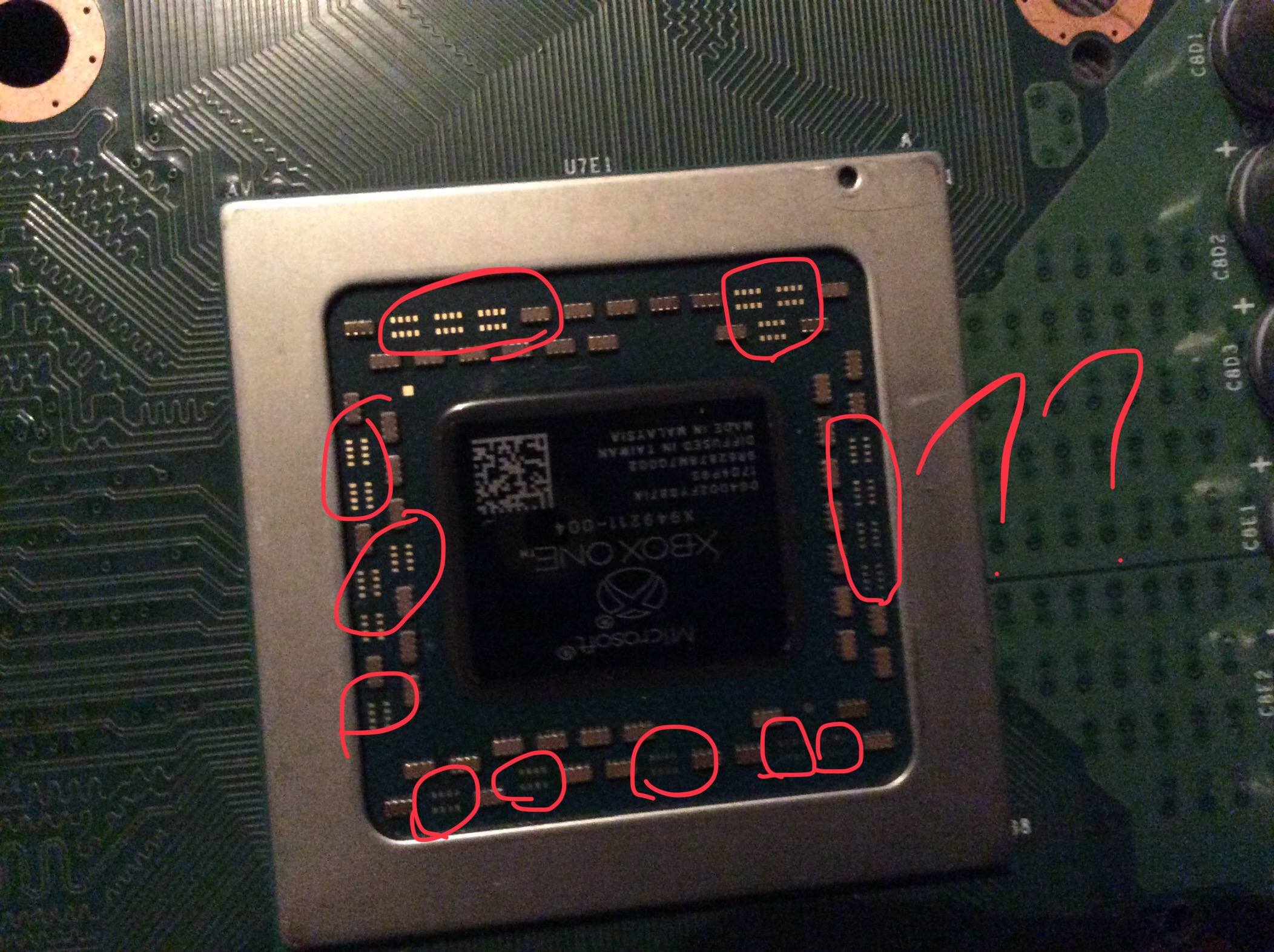

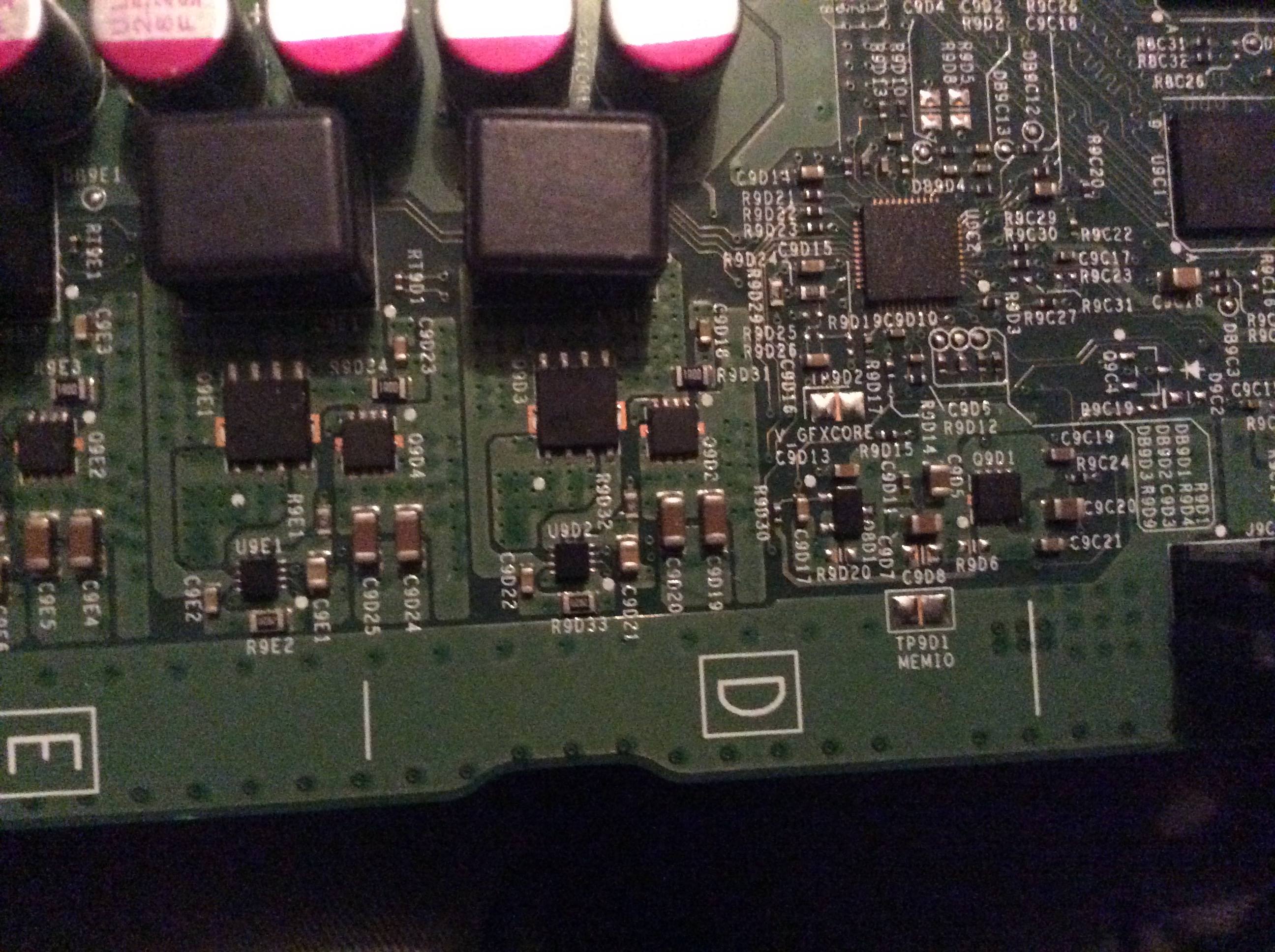

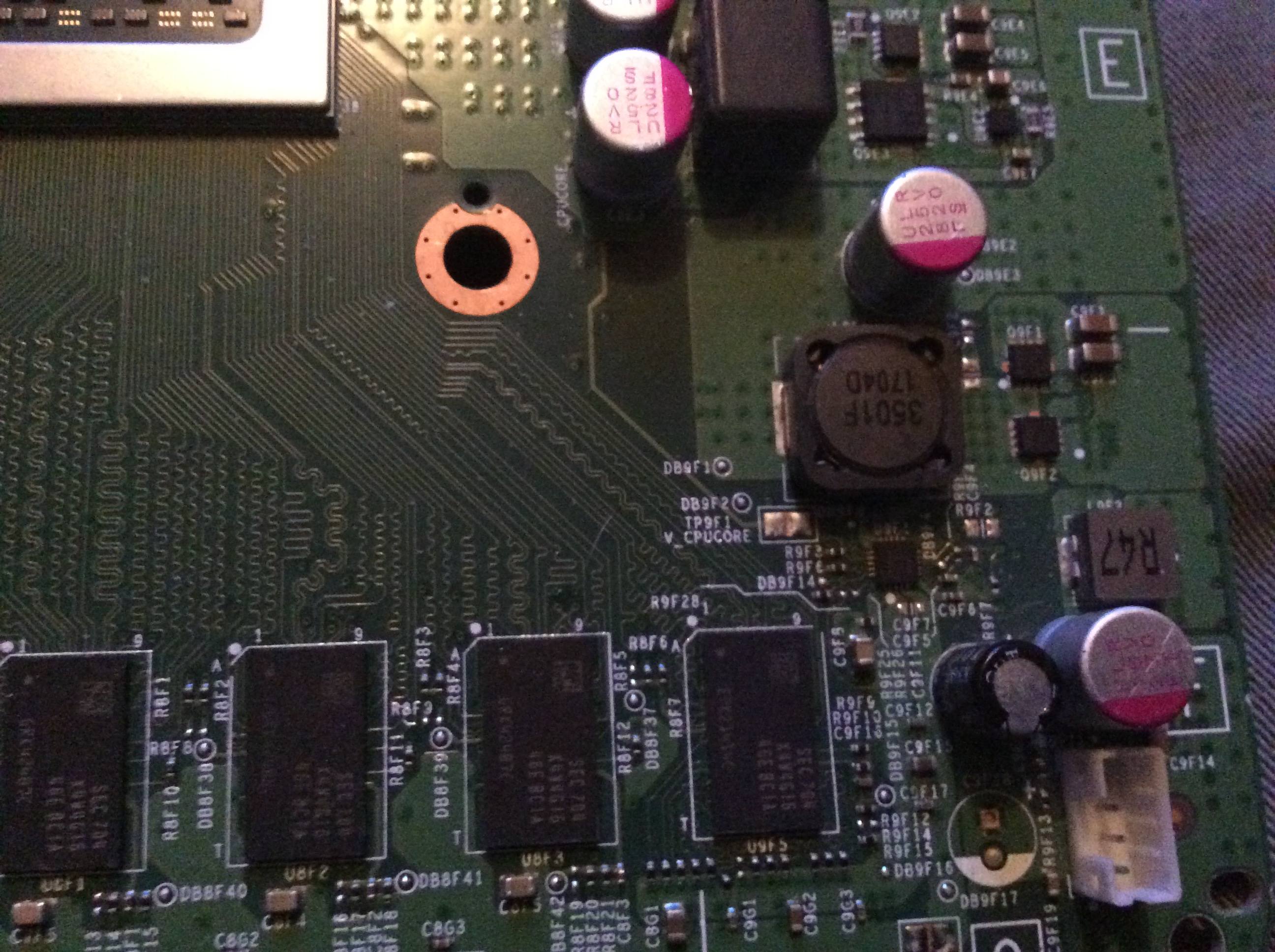

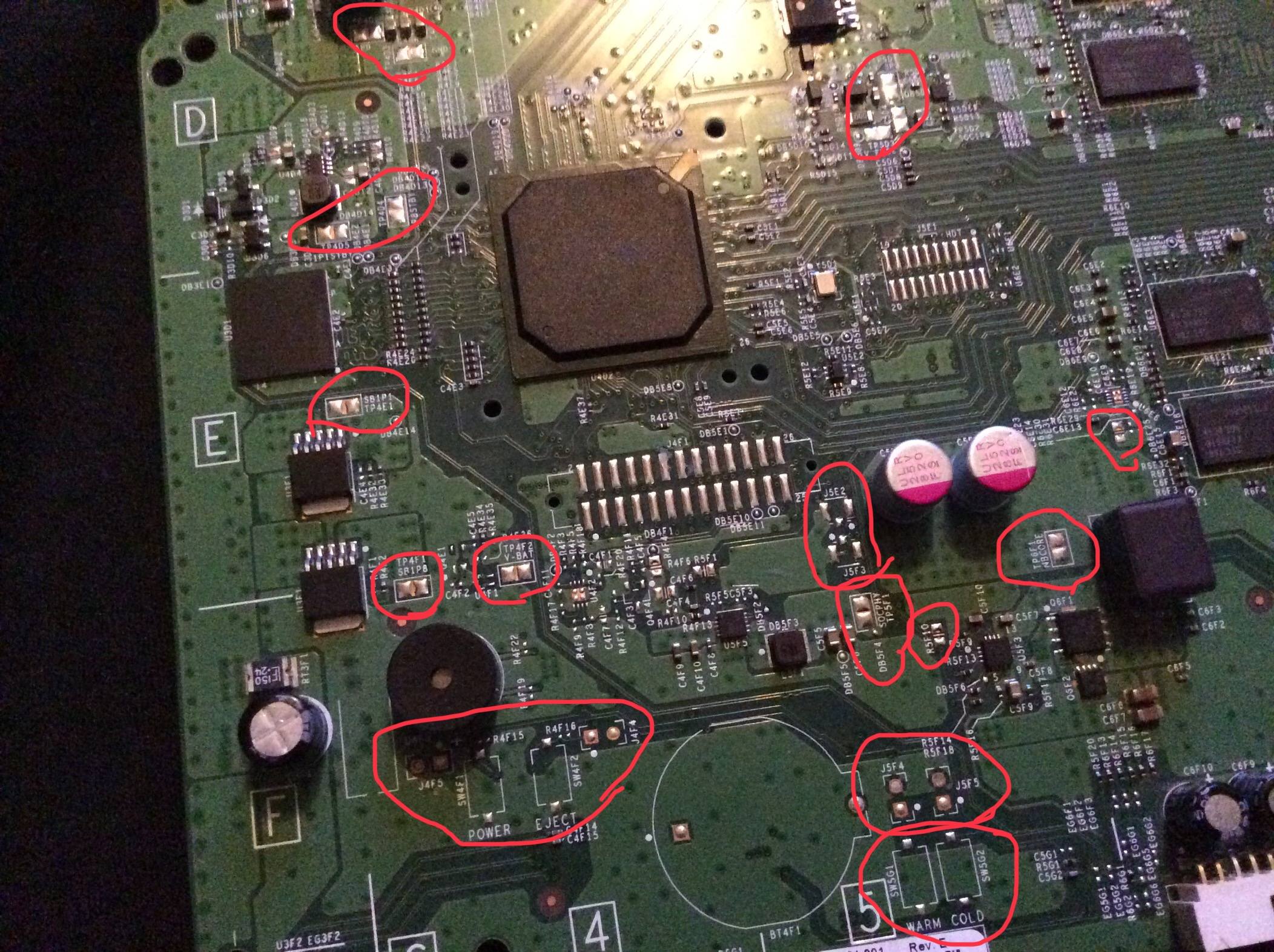

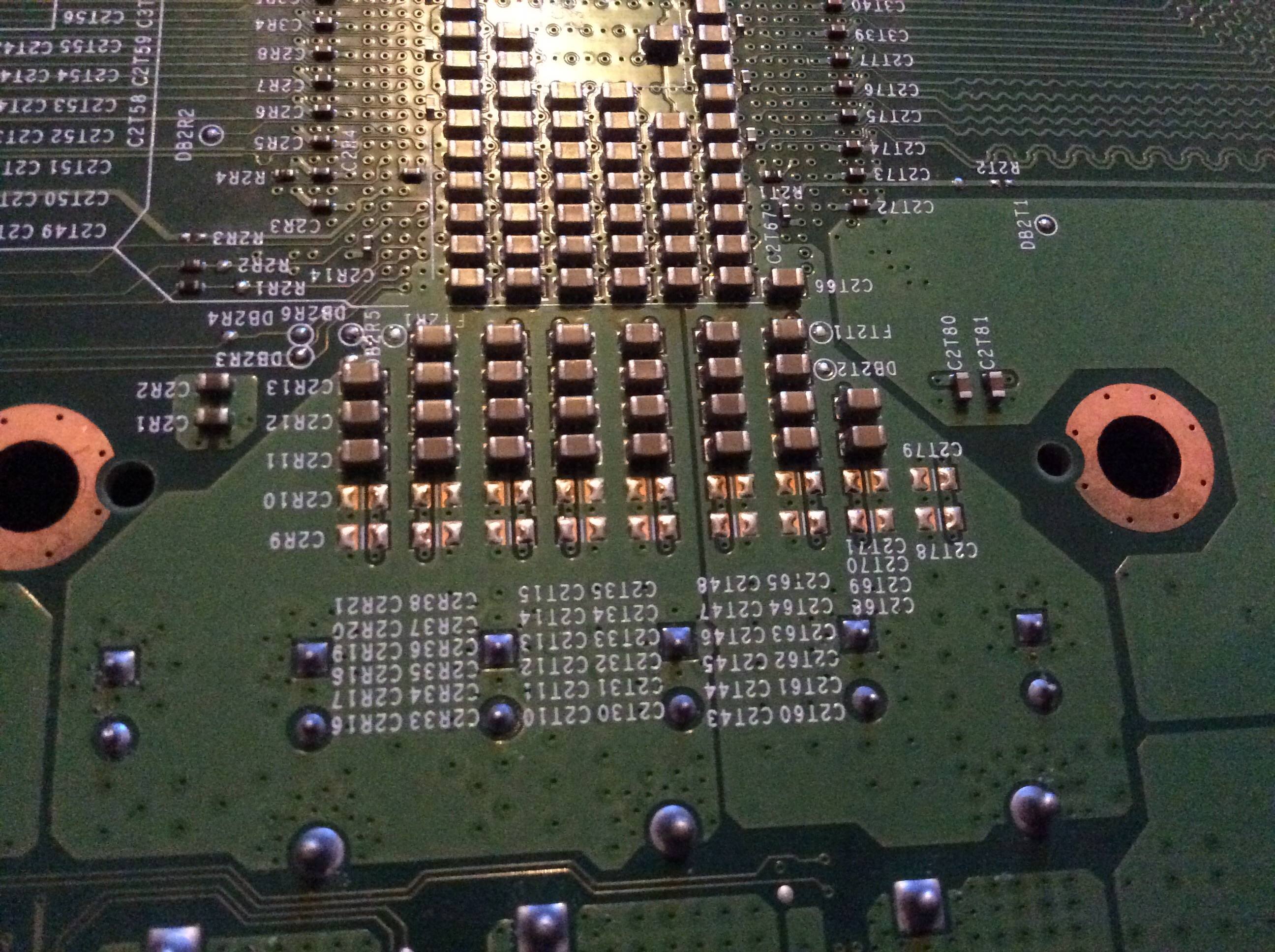

Was looking at this Xbox One S Motherboard and have been noticing the many missing components?? I heard there’s two cores disabled inside the apu but there’s an array of components that look interesting, Also I don’t know what these little bits of exposed solder is supposedly to have on it but I had a weird thought of maybe it’s a way to overclock or adjust/control the “V_GFXCORE and V_CPUCORE” and it seems like there might have been a port or connector/s that aren’t present..? ANYONE GOT ANY IDEAS?!











Link to comment
https://linustechtips.com/topic/1103705-xbox-one-s-motherboard-weirdness/
Share on other sites
Link to post
Share on other sites
Posted

just looks like voltage measuring for diagnostics among other things. missing resistors is very common.





at best there is BCLK overclocking, but yeah, not a whole lot you can realistically do.
