Note: Any watermarked images are my own. They are not stolen images.






This could have also been named SNES PC v2.0. In an effort to fix thermal issues and upgrade performance, the Hyper SNES is the result of those goals.

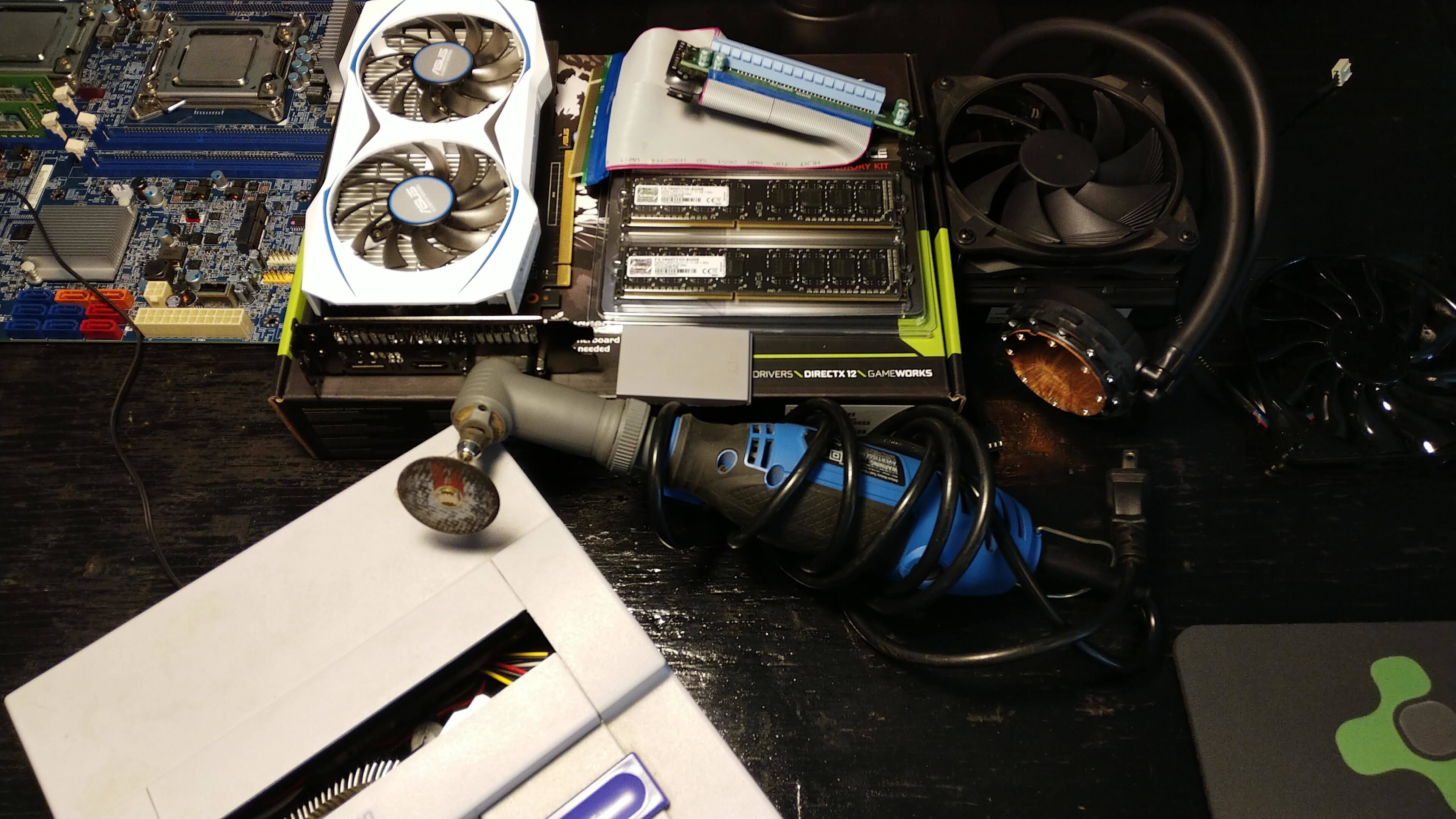

The CPU cooler was upgraded from a Rosewill low-profile air cooler a the Corsair H55 AIO. This way, nearly all the heat created by the CPU is dissipated outside the enclosure. Previously, there wasn’t enough airflow and all the warm air was getting trapped inside, causing very high CPU temps under normal loads. Now? CPU stays in the low/mid 30’s under normal usage. Was really tricky to fit the pump block and hoses inside. Had to try a few different positions before finding the right layout that would keep the low clearance and allow the lines to run out the back. The radiator rests comfortably behind and doesn’t put any strain on the hoses. I might fabricate a simple bracket to attach the rad to the enclosure for extra, but it’s fine as-is for now.



Memory was upgraded from 4GB to 8GB, for obvious reasons. 4 was enough for regular HTPC streaming tasks, but not for gaming. ;)



The biggest upgrade was the GPU. The previous GTX 750 1GB was “ok”, but swapping out for the Asus Dual GTX 1050Ti 4GB OC was quite the step up and is still a very good match for the i3-4150. Now it’s a fairly capable 1080p gaming machine that still retains the original SNES enclosure, which was always the original goal for this build.



Pretty happy with how it turned out this time. :)



More pics to come...

My Systems:

Main - Work + Gaming:

Spoiler

Woodland Raven: Ryzen 2700X // AMD Wraith RGB // Asus Prime X570-P // G.Skill 2x 8GB 3600MHz DDR4 // Radeon RX Vega 56 // Crucial P1 NVMe 1TB M.2 SSD // Deepcool DQ650-M // chassis build in progress // Windows 10 // Thrustmaster TMX + G27 pedals & shifter

F@H Rig:

Spoiler

FX-8350 // Deepcool Neptwin // MSI 970 Gaming // AData 2x 4GB 1600 DDR3 // 2x Gigabyte RX-570 4G's // Samsung 840 120GB SSD // Cooler Master V650 // Windows 10



HTPC:

Spoiler

SNES PC (HTPC): i3-4150 @3.5 // Gigabyte GA-H87N-Wifi // G.Skill 2x 4GB DDR3 1600 // Asus Dual GTX 1050Ti 4GB OC // AData SP600 128GB SSD // Pico 160XT PSU // Custom SNES Enclosure // 55" LG LED 1080p TV  // Logitech wireless touchpad-keyboard // Windows 10 // Build Log

Laptops:

Spoiler

MY DAILY: Lenovo ThinkPad T410 // 14" 1440x900 // i5-540M 2.5GHz Dual-Core HT // Intel HD iGPU + Quadro NVS 3100M 512MB dGPU // 2x4GB DDR3L 1066 // Mushkin Triactor 480GB SSD // Windows 10



WIFE'S: Dell Latitude E5450 // 14" 1366x768 // i5-5300U 2.3GHz Dual-Core HT // Intel HD5500 // 2x4GB RAM DDR3L 1600 // 500GB 7200 HDD // Linux Mint 19.3 Cinnamon



EXPERIMENTAL: Pinebook // 11.6" 1080p // Manjaro KDE (ARM)

NAS:

Spoiler

Home NAS: Pentium G4400 @3.3 // Gigabyte GA-Z170-HD3 // 2x 4GB DDR4 2400 // Intel HD Graphics // Kingston A400 120GB SSD // 3x Seagate Barracuda 2TB 7200 HDDs in RAID-Z // Cooler Master Silent Pro M 1000w PSU // Antec Performance Plus 1080AMG // FreeNAS OS



Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author

Build pics.

































My Systems:

Main - Work + Gaming:

Spoiler

Woodland Raven: Ryzen 2700X // AMD Wraith RGB // Asus Prime X570-P // G.Skill 2x 8GB 3600MHz DDR4 // Radeon RX Vega 56 // Crucial P1 NVMe 1TB M.2 SSD // Deepcool DQ650-M // chassis build in progress // Windows 10 // Thrustmaster TMX + G27 pedals & shifter

F@H Rig:

Spoiler

FX-8350 // Deepcool Neptwin // MSI 970 Gaming // AData 2x 4GB 1600 DDR3 // 2x Gigabyte RX-570 4G's // Samsung 840 120GB SSD // Cooler Master V650 // Windows 10



HTPC:

Spoiler

SNES PC (HTPC): i3-4150 @3.5 // Gigabyte GA-H87N-Wifi // G.Skill 2x 4GB DDR3 1600 // Asus Dual GTX 1050Ti 4GB OC // AData SP600 128GB SSD // Pico 160XT PSU // Custom SNES Enclosure // 55" LG LED 1080p TV  // Logitech wireless touchpad-keyboard // Windows 10 // Build Log

Laptops:

Spoiler

MY DAILY: Lenovo ThinkPad T410 // 14" 1440x900 // i5-540M 2.5GHz Dual-Core HT // Intel HD iGPU + Quadro NVS 3100M 512MB dGPU // 2x4GB DDR3L 1066 // Mushkin Triactor 480GB SSD // Windows 10



WIFE'S: Dell Latitude E5450 // 14" 1366x768 // i5-5300U 2.3GHz Dual-Core HT // Intel HD5500 // 2x4GB RAM DDR3L 1600 // 500GB 7200 HDD // Linux Mint 19.3 Cinnamon



EXPERIMENTAL: Pinebook // 11.6" 1080p // Manjaro KDE (ARM)

NAS:

Spoiler

Home NAS: Pentium G4400 @3.3 // Gigabyte GA-Z170-HD3 // 2x 4GB DDR4 2400 // Intel HD Graphics // Kingston A400 120GB SSD // 3x Seagate Barracuda 2TB 7200 HDDs in RAID-Z // Cooler Master Silent Pro M 1000w PSU // Antec Performance Plus 1080AMG // FreeNAS OS



Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author

Completed pics.





































My Systems:

Main - Work + Gaming:

Spoiler

Woodland Raven: Ryzen 2700X // AMD Wraith RGB // Asus Prime X570-P // G.Skill 2x 8GB 3600MHz DDR4 // Radeon RX Vega 56 // Crucial P1 NVMe 1TB M.2 SSD // Deepcool DQ650-M // chassis build in progress // Windows 10 // Thrustmaster TMX + G27 pedals & shifter

F@H Rig:

Spoiler

FX-8350 // Deepcool Neptwin // MSI 970 Gaming // AData 2x 4GB 1600 DDR3 // 2x Gigabyte RX-570 4G's // Samsung 840 120GB SSD // Cooler Master V650 // Windows 10



HTPC:

Spoiler

SNES PC (HTPC): i3-4150 @3.5 // Gigabyte GA-H87N-Wifi // G.Skill 2x 4GB DDR3 1600 // Asus Dual GTX 1050Ti 4GB OC // AData SP600 128GB SSD // Pico 160XT PSU // Custom SNES Enclosure // 55" LG LED 1080p TV  // Logitech wireless touchpad-keyboard // Windows 10 // Build Log

Laptops:

Spoiler

MY DAILY: Lenovo ThinkPad T410 // 14" 1440x900 // i5-540M 2.5GHz Dual-Core HT // Intel HD iGPU + Quadro NVS 3100M 512MB dGPU // 2x4GB DDR3L 1066 // Mushkin Triactor 480GB SSD // Windows 10



WIFE'S: Dell Latitude E5450 // 14" 1366x768 // i5-5300U 2.3GHz Dual-Core HT // Intel HD5500 // 2x4GB RAM DDR3L 1600 // 500GB 7200 HDD // Linux Mint 19.3 Cinnamon



EXPERIMENTAL: Pinebook // 11.6" 1080p // Manjaro KDE (ARM)

NAS:

Spoiler

Home NAS: Pentium G4400 @3.3 // Gigabyte GA-Z170-HD3 // 2x 4GB DDR4 2400 // Intel HD Graphics // Kingston A400 120GB SSD // 3x Seagate Barracuda 2TB 7200 HDDs in RAID-Z // Cooler Master Silent Pro M 1000w PSU // Antec Performance Plus 1080AMG // FreeNAS OS



Link to comment
Share on other sites
Link to post
Share on other sites
Posted

So many levels of jank...



How long did this take?

Cor Caeruleus Reborn v6

Spoiler

CPU: Intel - Core i7-8700K

CPU Cooler: be quiet! - PURE ROCK
Thermal Compound: Arctic Silver - 5 High-Density Polysynthetic Silver 3.5g Thermal Paste
Motherboard: ASRock Z370 Extreme4
Memory: G.Skill TridentZ RGB 2x8GB 3200/14
Storage: Samsung - 850 EVO-Series 500GB 2.5" Solid State Drive
Storage: Samsung - 960 EVO 500GB M.2-2280 Solid State Drive
Storage: Western Digital - Blue 2TB 3.5" 5400RPM Internal Hard Drive
Storage: Western Digital - BLACK SERIES 3TB 3.5" 7200RPM Internal Hard Drive
Video Card: EVGA - 970 SSC ACX (1080 is in RMA)
Case: Fractal Design - Define R5 w/Window (Black) ATX Mid Tower Case
Power Supply: EVGA - SuperNOVA P2 750W with CableMod blue/black Pro Series
Optical Drive: LG - WH16NS40 Blu-Ray/DVD/CD Writer
Operating System: Microsoft - Windows 10 Pro OEM 64-bit and Linux Mint Serena
Keyboard: Logitech - G910 Orion Spectrum RGB Wired Gaming Keyboard
Mouse: Logitech - G502 Wired Optical Mouse
Headphones: Logitech - G430 7.1 Channel  Headset
Speakers: Logitech - Z506 155W 5.1ch Speakers



Link to comment
Share on other sites
Link to post
Share on other sites
Posted

I just feel incredibly uneasy looking at that free standing GPU xD

Also I hope you didn't kill a functional SNES to do this...

Link to comment
Share on other sites
Link to post
Share on other sites
Posted

SNES Turbo (If only you used the Asus Turbo version of the 1060, then it would make even more sense but be louder. And not in the Car kinda turbo louder where it actually sounds good :D)

"Put as much effort into your question as you'd expect someone to give in an answer"- @Princess Luna

Make sure to Quote posts or tag the person with @[username] so they know you responded to them!

 RGB Build Post 2019 --- Rainbow 🦆 2020 --- Velka 5 V2.0 Build 2021

Purple Build Post ---  Blue Build Post --- Blue Build Post 2018 --- Project ITNOS

CPU i7-4790k    Motherboard Gigabyte Z97N-WIFI    RAM G.Skill Sniper DDR3 1866mhz    GPU EVGA GTX1080Ti FTW3    Case Corsair 380T

Storage Samsung EVO 250GB, Samsung EVO 1TB, WD Black 3TB, WD Black 5TB    PSU Corsair CX750M    Cooling Cryorig H7 with NF-A12x25

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
8 hours ago, imreloadin said:

I just feel incredibly uneasy looking at that free standing GPU xD

Also I hope you didn't kill a functional SNES to do this...

Not to mention the lack of a backplate.. I'd order a nice one from V1tech or something, I can't stand looking at it without the backplate!

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
9 hours ago, ARikozuM said:

So many levels of jank...



How long did this take?

Here's the build log from the original conversion. Took me a few hours to perform the recent modifications & upgrades.



8 hours ago, imreloadin said:

I just feel incredibly uneasy looking at that free standing GPU xD

Also I hope you didn't kill a functional SNES to do this...

It's actually quite stable. I angled the bottom of the retension bracket to support it so it actually doesn't flop around or anything at all. I didn't want anything else touching the card so it would look more like a game cartridge (sort of).



And no, it was a dead SNES when I got it. ;)

15 minutes ago, DVA said:

Not to mention the lack of a backplate.. I'd order a nice one from V1tech or something, I can't stand looking at it without the backplate!

Where it sits in my living room, you never see the back of the GPU, so it's not a concern for me. Also, I like the look of bare PCBs and components. ;)

My Systems:

Main - Work + Gaming:

Spoiler

Woodland Raven: Ryzen 2700X // AMD Wraith RGB // Asus Prime X570-P // G.Skill 2x 8GB 3600MHz DDR4 // Radeon RX Vega 56 // Crucial P1 NVMe 1TB M.2 SSD // Deepcool DQ650-M // chassis build in progress // Windows 10 // Thrustmaster TMX + G27 pedals & shifter

F@H Rig:

Spoiler

FX-8350 // Deepcool Neptwin // MSI 970 Gaming // AData 2x 4GB 1600 DDR3 // 2x Gigabyte RX-570 4G's // Samsung 840 120GB SSD // Cooler Master V650 // Windows 10



HTPC:

Spoiler

SNES PC (HTPC): i3-4150 @3.5 // Gigabyte GA-H87N-Wifi // G.Skill 2x 4GB DDR3 1600 // Asus Dual GTX 1050Ti 4GB OC // AData SP600 128GB SSD // Pico 160XT PSU // Custom SNES Enclosure // 55" LG LED 1080p TV  // Logitech wireless touchpad-keyboard // Windows 10 // Build Log

Laptops:

Spoiler

MY DAILY: Lenovo ThinkPad T410 // 14" 1440x900 // i5-540M 2.5GHz Dual-Core HT // Intel HD iGPU + Quadro NVS 3100M 512MB dGPU // 2x4GB DDR3L 1066 // Mushkin Triactor 480GB SSD // Windows 10



WIFE'S: Dell Latitude E5450 // 14" 1366x768 // i5-5300U 2.3GHz Dual-Core HT // Intel HD5500 // 2x4GB RAM DDR3L 1600 // 500GB 7200 HDD // Linux Mint 19.3 Cinnamon



EXPERIMENTAL: Pinebook // 11.6" 1080p // Manjaro KDE (ARM)

NAS:

Spoiler

Home NAS: Pentium G4400 @3.3 // Gigabyte GA-Z170-HD3 // 2x 4GB DDR4 2400 // Intel HD Graphics // Kingston A400 120GB SSD // 3x Seagate Barracuda 2TB 7200 HDDs in RAID-Z // Cooler Master Silent Pro M 1000w PSU // Antec Performance Plus 1080AMG // FreeNAS OS



Link to comment
Share on other sites
Link to post
Share on other sites
Posted

Looking awesome! Probably the best use of the cartridge slot in any snes PC mod I've seen to date ;)

I gotta ask tough; what is that sexy dual socket board you have laying in the background?

-Phoenix-  -VouwFabriek- -SolidNAS-

BlackMac Woody Clack Virtuality Lil'Lad Plot-Device Boerderij

all your proteins are belong to us.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
27 minutes ago, RollinLower said:

Looking awesome! Probably the best use of the cartridge slot in any snes PC mod I've seen to date ;)

I gotta ask tough; what is that sexy dual socket board you have laying in the background?

Thanks. :)



That dual-socket board is for another up-coming build I'm working on. It's a dual 2011-0 board from a Lenovo workstation a friend gave to me (just the board). Already populated it with dual Xeon E5-2643's and 16GB of ECC ram. ;) More details to emerge in time... :ph34r:

My Systems:

Main - Work + Gaming:

Spoiler

Woodland Raven: Ryzen 2700X // AMD Wraith RGB // Asus Prime X570-P // G.Skill 2x 8GB 3600MHz DDR4 // Radeon RX Vega 56 // Crucial P1 NVMe 1TB M.2 SSD // Deepcool DQ650-M // chassis build in progress // Windows 10 // Thrustmaster TMX + G27 pedals & shifter

F@H Rig:

Spoiler

FX-8350 // Deepcool Neptwin // MSI 970 Gaming // AData 2x 4GB 1600 DDR3 // 2x Gigabyte RX-570 4G's // Samsung 840 120GB SSD // Cooler Master V650 // Windows 10



HTPC:

Spoiler

SNES PC (HTPC): i3-4150 @3.5 // Gigabyte GA-H87N-Wifi // G.Skill 2x 4GB DDR3 1600 // Asus Dual GTX 1050Ti 4GB OC // AData SP600 128GB SSD // Pico 160XT PSU // Custom SNES Enclosure // 55" LG LED 1080p TV  // Logitech wireless touchpad-keyboard // Windows 10 // Build Log

Laptops:

Spoiler

MY DAILY: Lenovo ThinkPad T410 // 14" 1440x900 // i5-540M 2.5GHz Dual-Core HT // Intel HD iGPU + Quadro NVS 3100M 512MB dGPU // 2x4GB DDR3L 1066 // Mushkin Triactor 480GB SSD // Windows 10



WIFE'S: Dell Latitude E5450 // 14" 1366x768 // i5-5300U 2.3GHz Dual-Core HT // Intel HD5500 // 2x4GB RAM DDR3L 1600 // 500GB 7200 HDD // Linux Mint 19.3 Cinnamon



EXPERIMENTAL: Pinebook // 11.6" 1080p // Manjaro KDE (ARM)

NAS:

Spoiler

Home NAS: Pentium G4400 @3.3 // Gigabyte GA-Z170-HD3 // 2x 4GB DDR4 2400 // Intel HD Graphics // Kingston A400 120GB SSD // 3x Seagate Barracuda 2TB 7200 HDDs in RAID-Z // Cooler Master Silent Pro M 1000w PSU // Antec Performance Plus 1080AMG // FreeNAS OS



Link to comment
Share on other sites
Link to post
Share on other sites
Posted
  • Author
40 minutes ago, quakeguy81 said:

Really cool idea to fit an HTPC inside an OG SNES.  It looks like you have the SNES controller ports wired up to something on the motherboard.  Are they functional?  Do the power and reset buttons on the SNES work, or are they just for aesthetics? Good job!

Thanks. :)



The power button and LED are both functional. Reset button is now fixed in-place as is the eject button (don't really have a need for them). The wires connected at the front near the controller ports is for the original red power LED. Just under the bottom at that front corner is an amber LED for storage drive activity.



I do plan on using the front controller ports with original controller and wire them up on the inside to USB. But that's a project for another day. ;)

My Systems:

Main - Work + Gaming:

Spoiler

Woodland Raven: Ryzen 2700X // AMD Wraith RGB // Asus Prime X570-P // G.Skill 2x 8GB 3600MHz DDR4 // Radeon RX Vega 56 // Crucial P1 NVMe 1TB M.2 SSD // Deepcool DQ650-M // chassis build in progress // Windows 10 // Thrustmaster TMX + G27 pedals & shifter

F@H Rig:

Spoiler

FX-8350 // Deepcool Neptwin // MSI 970 Gaming // AData 2x 4GB 1600 DDR3 // 2x Gigabyte RX-570 4G's // Samsung 840 120GB SSD // Cooler Master V650 // Windows 10



HTPC:

Spoiler

SNES PC (HTPC): i3-4150 @3.5 // Gigabyte GA-H87N-Wifi // G.Skill 2x 4GB DDR3 1600 // Asus Dual GTX 1050Ti 4GB OC // AData SP600 128GB SSD // Pico 160XT PSU // Custom SNES Enclosure // 55" LG LED 1080p TV  // Logitech wireless touchpad-keyboard // Windows 10 // Build Log

Laptops:

Spoiler

MY DAILY: Lenovo ThinkPad T410 // 14" 1440x900 // i5-540M 2.5GHz Dual-Core HT // Intel HD iGPU + Quadro NVS 3100M 512MB dGPU // 2x4GB DDR3L 1066 // Mushkin Triactor 480GB SSD // Windows 10



WIFE'S: Dell Latitude E5450 // 14" 1366x768 // i5-5300U 2.3GHz Dual-Core HT // Intel HD5500 // 2x4GB RAM DDR3L 1600 // 500GB 7200 HDD // Linux Mint 19.3 Cinnamon



EXPERIMENTAL: Pinebook // 11.6" 1080p // Manjaro KDE (ARM)

NAS:

Spoiler

Home NAS: Pentium G4400 @3.3 // Gigabyte GA-Z170-HD3 // 2x 4GB DDR4 2400 // Intel HD Graphics // Kingston A400 120GB SSD // 3x Seagate Barracuda 2TB 7200 HDDs in RAID-Z // Cooler Master Silent Pro M 1000w PSU // Antec Performance Plus 1080AMG // FreeNAS OS



Link to comment
Share on other sites
Link to post
Share on other sites
Posted

That is one HYPER SNES!!!!

Just message or quote me if you have questions! I might not be able to answer them, but I might be able to help!

Current PC

Way too crappy to even say.

Link to comment
Share on other sites
Link to post
Share on other sites
Posted
