AMD FX 8320 and Asrock 990FX Extreme3 - High end on a budget.

ALXAndy
Pull up a chair, get comfy and have a gander at my banal ramblings.



Today I am going to be reviewing two products. It's the old scenario of two birds, one stone. The two products I am reviewing are, in my humble opinion, the very minimum you need for the basis of a high end gaming rig. Whilst neither product could be considered top of the range they do offer fantastic value.



The two products going under the microscope today are the AMD FX 8320 8 core CPU and the Asrock 990FX Extreme 3 motherboard. I will cover my thoughts and opinions on the motherboard first at a 'customer level' per se. This should give you all of the information you should need if you were considering a cheap (the key word here !) 8 core system.



I spent many hours doing my research on products and feel that I've struck the perfect balance between features, performance and most importantly of all; the price.



The Asrock 990FX Extreme3 explained...



This is not a high end board. It may look like one when you look at the photos but it does make sacrifices here and there. This isn't such a bad thing because the spec belies the price which is always a nice thing to get. It is based on the 990FX chipset and has all of the functions and features you would expect from a more expensive product, yet, makes the odd sacrifice here and there so save you money. It's not a high end board in the strictest sense because it only has a 4+1 power stage. However, that being said it can still overclock the CPU to the magic number.



Talking of the magic number, let's explain that shall we? After exhaustive research I found that the 8320 starts to shine at around 4.2ghz. The only significant step up from there is the average limit of this processor which stands at around the 4.5ghz mark. Once you get to 4.5ghz there is little to be gained by going any higher and if you do then you need some pretty extreme cooling.



The idea here is go get the CPU to the sort of clocks where it does a good job of keeping your minimums at acceptable levels. The Asrock (as I mentioned before) does make cuts in this area (the power stages) BUT the board will still allow you to overclock your 8320 by a good sum, boosting performance significantly.

It includes five SATA III ports, four of which are the preferred more expensive edge connector variety that we all love because they allow us to perform tidier cabling.



There is one 'upright' connector just above the four edge connectors and this came in really useful for me to connect my DVD drive to. I know that by now a lot of us do not use optical drives any more but I do, and I rely on mine (I prefer buying hard versions of my games as I collect them). However, four SATA III ports should be enough for even the most hardened gamer. Remember - this set up is pretty much for gaming.





So those are the two bad things, the sacrifices. Now let's get on to the nicer stuff shall we?



Before we move onto that let's take a quick look at the board, shall we?








The board supports all of the sorts of things us gamers look for, without detonating the bank account.



ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors



Digi Power, Supports AM3+ Processor, 8-Core CPU



Supports Dual Channel DDR3 2100(OC)



Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

Supports NVIDIA® Quad SLI™ and SLI™



2 x USB 3.0, 5 x SATA3, 1 x eSATA3



Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies



Supports On/Off Play, Graphical UEFI, AXTU, APP Charger, Turbo UCC



7.1 CH HD Audio with Content Protection



Free Bundle : CyberLink MediaEspresso 6.5 Trial, 1 x 3.5mm Audio Cable



What's really nice to see here is that the board not only supports Crossfire X, but also supports SLI.



 Not only that but the SLI support is actually 16x 16x if you decide to run it ! This is a feature that is pretty much unheard of with a £80 motherboard and usually saves itself for much more expensive models.



The PCB is a very deep brown colour that appears black until hit with any kind of light, and the heatsinks are classy and not over done with their gold livery. I must admit that aesthetics played a big part in my choice, given that my graphics cards are gold and black. It is a little narrower than more expensive boards but this isn't a problem as it still looks the part when fitted to a computer.



The socket and slot layout are also very good on this board, and something that really made me warm to it even more was that it comes with a hard SLI bridge. Over the past few years I have used many SLI systems and one thing I have always hated about SLI is the ribbon bridges as they are terribly unreliable and usually made to a very poor standard.



When they don't work properly the screen flashes and flickers and exposes all kinds of problems. Thankfully Asrock have used their brains on this one and given us a really nice, well made hard bridge that also gives our cards some support to stop them sagging.



Many rivers to cross, but I will take this bridge any day.








You will notice that so far I have not thrown a load of numbers and graphs at you? That's because I am reviewing this product at a end user level so I am covering what's more important and the things that end users care more about.



The board costs around £80 delivered and I really like it. I'm not just saying that because I own it, I'm saying it because I've gotten it to do anything and everything I have asked of it with minimal fuss.



However, like some motherboards it is a little quirky so I urge that you know your onions when it comes to overclocking as it is a hard board to work with !



Overclocking



First and foremost the ram support on this board is rather flaky. Before I built this system I had two pairs of odd memory running harmoniously side by side and as happy as Larry. Sadly that was not to be on this motherboard so I had to remove one pair of the sticks.



I decided to stick with 8gb of Mushkin Blackline (Frostbyte) but even then I found that my memory would not run with any sort of stability on this board without upping the voltage. In the end I settled with 9-9-9-24 @ 1.6v (not 1.5 as the memory states) and 1600mhz.



The system then booted quite happily and has done ever since.

Onto the CPU overclock. For some reason if I even so much as breathed near the multiplier on this board it refused to post afterwards. It didn't matter how easy I went on it, or how much voltage I fed it, or how much I calibrated it, it just refused to play ball.



Now this could have been down to the CPU itself (the 8320 may be inferior to the 8350 at a binning level) but yes, if you were looking to just add an amount to the multi and hope that it will overclock well then look elsewhere. In the end I had to use the FSB which then tampers with the memory settings so it wasn't easy.



However, I did get there in the end, 4.2ghz stable by using the FSB.





It matters not which direction we take in life, nor the paths we take, so long as we arrive at our desired destination - VT 2013








I was very happy now because I had arrived where I wanted to be, the 4.2ghz mark.





The conclusion.





Well here we are then. Is this board worth having? I guess it depends what you are looking for. See, when something is great value it's very easy to start reducing that value by expecting too much out of it. That sounds pretty confusing right? well yeah, it is. Let me explain it then.



The AMD FX 8320 costs £113 as I write this (Aria) and will no doubt drop in price as it continues to age. Therefore, we need to keep everything as cheap as we possibly can. As an example here.



You go out and buy a budget CPU and then to get the most out of it you spend a fortune on a high end motherboard and even more on a top end cooling solution just to get say, 400mhz more out of that CPU.



The problem is by that stage you have already began to devalue this cheap budget of yours by adding expensive luxuries to it. Does that make sense now? I hope so.





In my opinion a budget is a budget. If, say, you can afford a 7850 2gb it would be rather annnoying to pay attention to society because I guarantee if I posted a thread on any forum on the internet it would go a little something like this -





"Hi, I have a budget of £130 and I was looking to get a 7850"

to which this happens...



"Hi. I would spend £XX more and get a 7870"



And then...



"Hmm, why not spend £XX and get a 7950? oh go on !".



By the time you are done you have ended up spending way more than you originally planned to. So yes, in conclusion I say that this motherboard, coupled with the excellent 8320, with an overclock of 4.2ghz is more than enough for any one and chimes in at exactly two hundred pounds.



Try doing that with an Intel...

OK, so that's the motherboard covered, let's move onto the processor shall we?

In the second part of today's review I am going to write a little bit about the AMD FX 8320. Again, like above I am not going to start saying "But for £50 more you can get a 8350 and it's much better because you can clock it higher" because again, that ends up being £100 more+*



*£50 extra for the CPU then £50 extra for the H100 you would need then £60 more for the motherboard with the power stages to clock it up that high..... See what I mean? it soon spirals out of control.



So back to reality we are going to make our decision and stick with it. The AMD FX 8320 is exactly the same chip as the 8350 it is just clocked quite a bit lower. Some of the websites selling this  are a bit naughty when it comes to the paper specs of this CPU because they say, and I quote -



AMD (Piledriver) FX-8320 3.50GHz (4.00GHz Turbo) Socket AM3+ 8-Core Processor - Retail



However that is not strictly true and I blame AMD. The CPU has a base frequency of 3.5ghz. It turbos to A single core at 4ghz but only turbos to 3.7ghz on all eight cores. Mind you, Intel do this too with their non K cpus so at least it's not just AMD showing some dishonesty. In their defence there is no mention of this on the official AMD website, they simply refer to it as a 3500mhz processor. This lags behind the 8350 by a fair chunk because that comes clocked as standard to 4ghz out of the box with an 8 core 4.2ghz turbo clock.



Now you can understand why, when under a strict budget, we want our 8320 to run at 4.2ghz because that gives us the £50 difference for free, back into our pockets.





Getting it out...



The CPU comes packed in a really nice metal tin box. Here is the box it comes in.








Which is a nice touch. 8 cores are overkill at the moment but with any luck they will come into their own over the coming months (I strongly believe, well, know, they will) and then it will be the high end product AMD view it and market it as.



When we open the box we are greeted with a stock cooler (which I won't mention because I am so anti stock cooler it's unbelievable) as well as the CPU itself, with a nice little case sticker/badge.






I proudly display mine on my case, but each to their own on this one.



Onto the benchmarks.



I'm not going to go crazy here, because no matter what game you play on this CPU the important thing is that all of those games will be completely playable, so detailed FPS counts aren't that important (in my opinion, remember I am talking to you as a some one advising you, not selling something to you).



Also I tend to find that reviewers benchmarks usually wildly differ to those results I produce myself. I'm not decrying reviewers' benchmarks here I am just saying that results will differ from PC to PC. To me what matters are the minimums, but I will  try and test the CPU with any of the latest games that are in fashion right now.



Our test set up.



See, this is a part of the problem tbh. My computer will wildly differ to yours, unless of course you decided to buy exactly the same components as me which let's face it, would be a bit camp and a bit silly. We all like to put our own personal touches on our PCs, it's what puts the P into PC (personal). However, these are the components being used to test our games.



CPU - AMD FX 8320 @ 4.2ghz

Asrock 990FX Extreme3 motherboard

8gb 1600mhz memory

Palit GTX 670 'Jetstream' graphics cards running their stock 1085mhz boost and running in SLI.

Corsair F120 SATA II SSD.



3Dmark (13) Firestrike






3Dmark 11




Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

Onto the games.

I want to note here that I have only tested the very newest games. Why? because I feel that it makes the results more fair. Up until recently it's very sad to say that the 8 core AMD cpus were not worth having, mainly down to their poor single threaded performance.

However, now that they are being better utlised I think things have definitely become fairer than before.

Without any further ado then let's move on to the games.

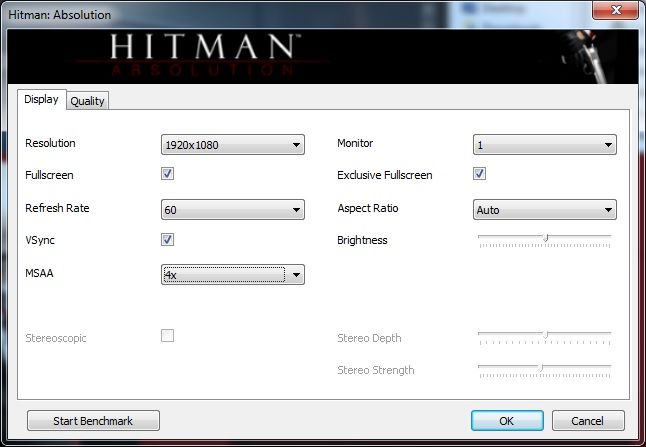

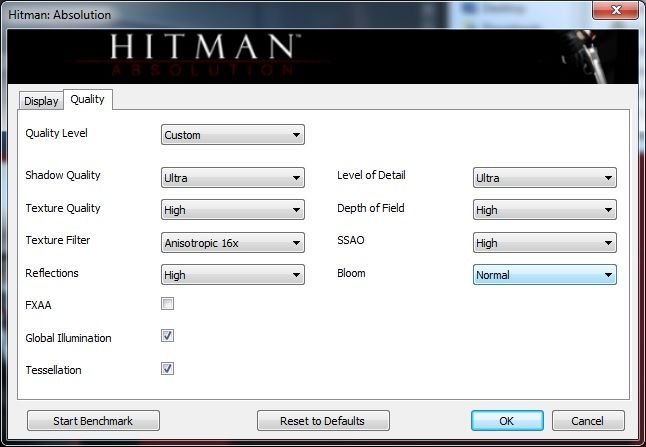

Hitman : Absolution settings



Hitman : Absolution results


Grid 2 - settings on max, 8XMSAA

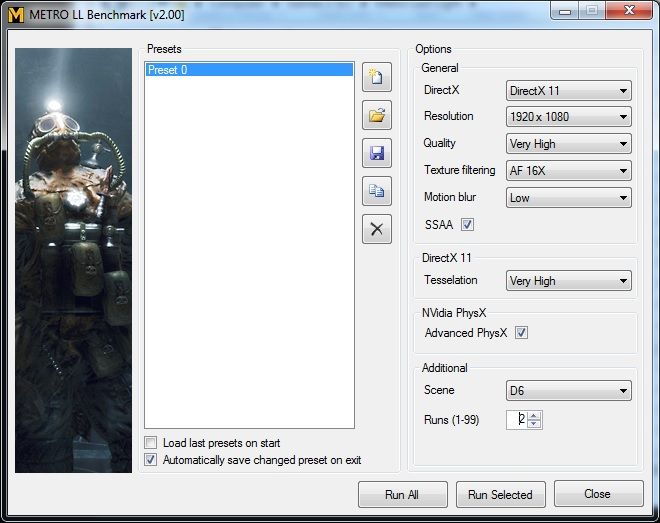

Metro : Last Light settings


Metro : Last Light results

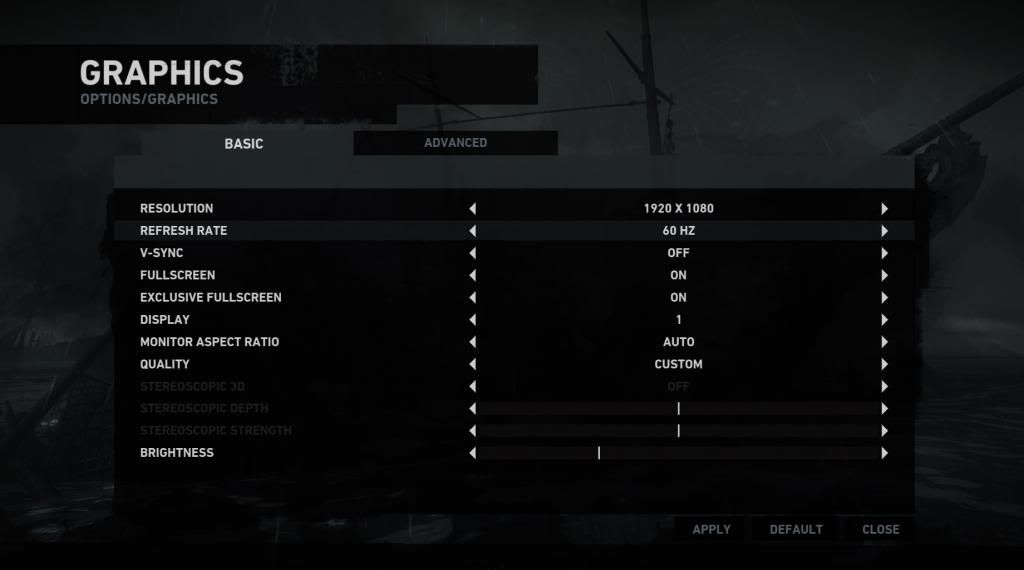

Tomb Raider settings (note Tress FX is on)

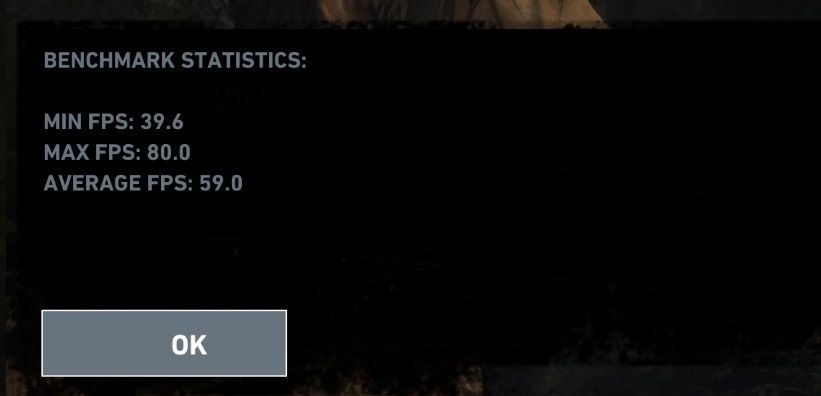

Tomb Raider results

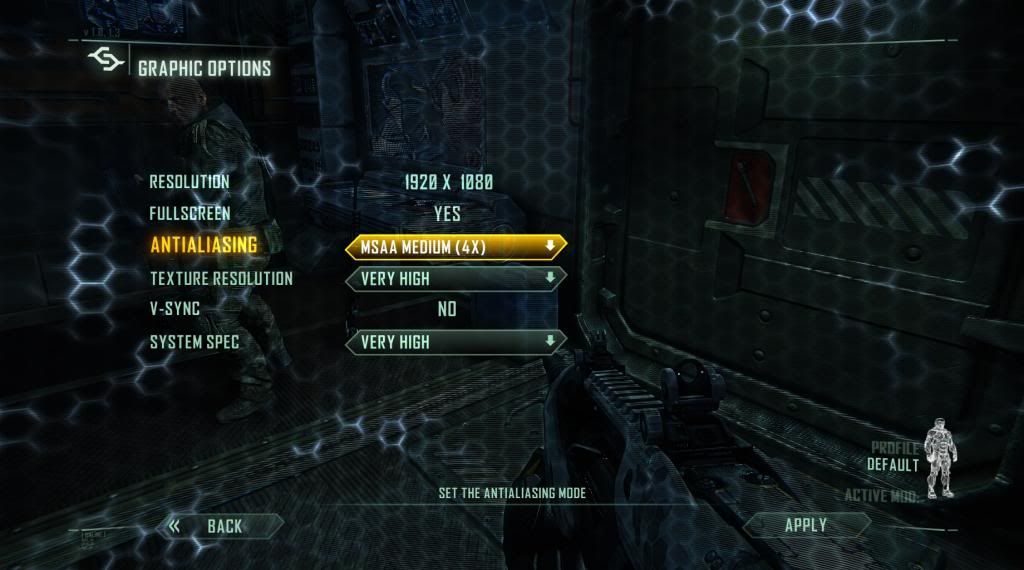

Crysis 3. Please read notes below.

OK. So sadly Crysis 3 does not include a benchmark utlity which tends to make it rather awkward to benchmark. However, I have done my level best to make sure you know exactly what I did and how I did it. Firstly I used FRAPS to record a 45 second run. To make it more transparent I tried it with different settings to illustrate how well the CPU copes.

In run one I used the highest settings with 2XMSAA.

In run two I used the highest settings with 4XMSAA.

Not only that but I shot a video to show you exactly where I was and what I was doing. Here are the settings I used.


Note - I changed the alias settings for each run. I also shot a video to show you 'what you see is what you get'. Obviously you will realise that the video will be dropped to the encoding rate of Virtualdub, but what I am trying to make clear here is how the game is displayed so that no doubt will be left to how smooth it runs. I will get to that in a moment, but here are the results of the benchmarks.

Run one All very high - 2XMSAA

Min = 51 FPS

AVG = 81.267 FPS

MAX = 137 FPS

Run two All very high - 4XMSAA

Min = 39 FPS

AVG = 51.244 FPS

MAX = 72 FPS

Run two as a video.

OK so I shot a video of the run with ultra settings using 4XMSAA. Here is my ghetto tripod I used.


And the video. Note the quality isn't the best, but it does depict the actual game play.

The conclusion.

OK look, this is going to be pretty frank. It may, at times, seem a little brutal. Firstly you will notice that I have not compared this set up to anything that Intel make. There's a good reason for that, and that reason is there's utterly no bloody point.

Why? you may ask? because put simply I'm not here to praise Intel. I'm not here to slag them off, either, but in the same token to remain without hypocrisy I am not going to slate AMD. The fact is that the stats speak for themselves.

At no point, in ANY new game offered up to the public right now did the FX 8320 falter. It did not stutter, it did not crash. It remained stable and steadfast in what it sets out to do, and incase you didn't know what I mean by that I mean a smooth, completely stable and playable experience.

For the tests performed in this review today I used the absolute top level, system killing settings and not once did our CPU drop to unplayable levels. Sure, I am running two 670s in SLI but that just goes to further enforce what I am getting at here. I have, in total, over £650 invested in graphics cards and not once did the FX 8320 stop them from providing me minimum frame rates at entirely acceptable and playable levels.

So can you see what I am getting at here? I'm basically not going to come down the FX 8320 for not having the single threaded performance of, as an example, a I5 3570k overclocked. Put simply - I don't really care about what the 3570k can do because I am not here to compare it. I am here to show you that a £113 8 core CPU provides more than one could ever wish for in a gaming environment and I have done that with great bravado.

Also note I am not going to give anything scores, I trust you to be alert enough to read my review properly. I'm not blowing smoke up your arse here, I'm talking frankly and honestly. When it comes to gaming the FX 8320 using the overclocks we have used here is more than good enough for any game on the market.

That speaks for itself, right? I firmly believe it does. However, I know that my review here may cause some confusion with users simply because I have not compared the CPU to anything Intel make.

So as I sign out I will leave you with this to ponder. Crysis 3 supports 8 cores and whatever else you could possibly wish to throw at it. If you were wondering how a comparable Intel CPU does with it then I can tell you. Up until recently I was using a Sandybridge Xeon which is in the same ilk as the I5 2400. Even with the FSB overclocked and the CPU @ 3.5ghz it simply could not provide playable frame rates in Crysis 3 with any kind of aliasing applied.

Make of that what you will, this is Alien signing out.

The aftermath.

Firstly I want to thank Asrock, who have provided me with the best customer support I've ever had. If you want an example of that, recently I bought a motherboard and I wasn't sure if it would support my CPU out of the box. Asrock promised me that if it didn't they would send me a bios chip, completely free of charge, to make sure it did. Not only that but they offered me the best advice I could have wished for when it came to overclocking my CPU. There are not many companies out there that do that, most won't even grant you a reply or any sort of help or support.

Secondly I want to say how impressed I am by AMD's offering here. It's a fantastic budget CPU that can wee with the big boys, so maximum respect for that.

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

I do like to be thorough :D



I did run Sleeping Dogs too but it doesn't work with FRAPS :(



It is, however, another game that falls victim to the savagery of 8 cores. I hit some pretty sick frame counts.. I'll retest it and try and get a screen grab of the results :)

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

I do like to be thorough :D



I did run Sleeping Dogs too but it doesn't work with FRAPS :(



It is, however, another game that falls victim to the savagery of 8 cores. I hit some pretty sick frame counts.. I'll retest it and try and get a screen grab of the results :)



I am loving my ASRock H77M Intel board.   Gave me so many upgrade features for such a small price.



I have really preferred AMD for many years but Intel's I series is really kicking butt. :(

Computer enthusiast, Network Consultant - 16+ years experience - Associates Degree in Electronics - 1996 - CompTIA A+ certification - 2000 - Bachelor's Degree of Information Technology - 2010

Link to comment
Share on other sites

Link to post
Share on other sites

  • 2 weeks later...

Just a quick note guys.. I heard back from my friend at Asrock who said she loved the frank review..



Not only that, but she's sent a message direct to Taipei to request an Asrock 990FX MATX board as soon as possible :D



Which would be rather nice for AMD users :)

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

nice review :D

Proccy: i5 3570k, Mobo: Asus p8z77-v, GFX card: Asus DCUII gtx 760, Ram: corsair vengence 8GB, PSU: corsair vx550w, Case: Coolermaster cm 690 II advanced, HDD: Segate 1TB+ 500GB , Mouse: logitech g400s, Keyboard: Motospeed ck104

Link to comment
Share on other sites

Link to post
Share on other sites

I suggest you take a screenshot of the advanced tab graphics settings.

Link to comment
Share on other sites

Link to post
Share on other sites

I suggest you take a screenshot of the advanced tab graphics settings.



No point everything was set as high as it could go :)



No point having SLI if you can't :)

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

You should do more reviews I enjoyed reading it and it is very detailed. If you ever do another review I'm certainly going to read it :)

Link to comment
Share on other sites

Link to post
Share on other sites

nice, I didn't read what cooling are you using for your cpu?

Hoe Hoe Hoe and a bottle of RAM © Gankplank

Link to comment
Share on other sites

Link to post
Share on other sites

H60 with two Arctic F12s in push pull.



Ideally though you want better, H80 or H100.

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

  • 2 weeks later...

Hey Andy, what exact settings do you have in your bios for the overclock. I have the exact same processor and motherboard as you. One stick of 8gb ram 1600. I'm having trouble trying to overclock. Doesn't seem to be temperature even though I'm only using a cooler master hyber 212 plus heatsink.

Link to comment
Share on other sites

Link to post
Share on other sites

I like your review and the end user oriented approach. I'd prefer a better motherboard though.

Link to comment
Share on other sites

Link to post
Share on other sites

Hey Andy, what exact settings do you have in your bios for the overclock. I have the exact same processor and motherboard as you. One stick of 8gb ram 1600. I'm having trouble trying to overclock. Doesn't seem to be temperature even though I'm only using a cooler master hyber 212 plus heatsink.



Hi. DO NOT touch the multiplier, it really, really doesn't like it. I had to go to the FSB which is a bit more complicated as then your ram gets it too. What you are ideally looking for is 4.2ghz. The board simply can not cope with any more. I used a 240 FSB and left the multi @ 17.5. I then had to offset my ram to get it back to 1600mhz. My CPUID validation is here.






Which should prove useful. One thing I will say though is that you are going to need a good cooling solution. I was seeing throttling on a Corsair H60 under extreme loads such as Prime and Crysis 3. I just upgraded to a Corsair H100 refurb for £39 and my temps are now well under control.



mrthuvi



Yes I would prefer a better motherboard too but then you break the budget. I recommend going with the 8350 and something like the Saber/Crosshair if you want more extreme overclocks.I did get the CPU to 4.4ghz (not Prime stable) and saw barely any difference between that and 4.2, so 4.2 is enough as a daily overclock which is the whole point of going with these two products.

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

Great review! I recommended a setup that included this CPU and motherboard. The reason for that was because this motherboard included 8GB (2x4gb) of Crucial DDR3-1600 memory for free for $119.99 on Newegg, and the AMD FX-8320 was only $144.99. Now, after seeing this review, now I see that it will perform very well for its value. This setup is great for a budget between $800-1100.

Link to comment
Share on other sites

Link to post
Share on other sites

Great review! I recommended a setup that included this CPU and motherboard. The reason for that was because this motherboard included 8GB (2x4gb) of Crucial DDR3-1600 memory for free for $119.99 on Newegg, and the AMD FX-8320 was only $144.99. Now, after seeing this review, now I see that it will perform very well for its value. This setup is great for a budget between $800-1100.



You should get 4.2ghz all day long. At that speed yes, it's a lot of system for the money :)

Area 51 2014. Intel 5820k@ 4.4ghz. MSI X99.16gb Quad channel ram. AMD Fury X.Asus RAIDR.OCZ ARC 480gb SSD. Velociraptor 600gb. 2tb WD.

Link to comment
Share on other sites

Link to post
Share on other sites

Great review, and it looks like a great gaming chip!

VIDEO GAMES                                  Max Power Build Log

Link to comment
Share on other sites

Link to post
Share on other sites

hmm wondering how well this would work on my crosshair iv forumula?



Perhaps ill stick with my 1090t for the time being.

Link to comment
Share on other sites

Link to post
Share on other sites

Great review and I do fully agree with you that going from this setup to anything more is just not going to get the price to performance that this has. A good CPU with a decent overclock will get you much further than the best CPU for a much higher price. Thanks for the honest and in depth review.
